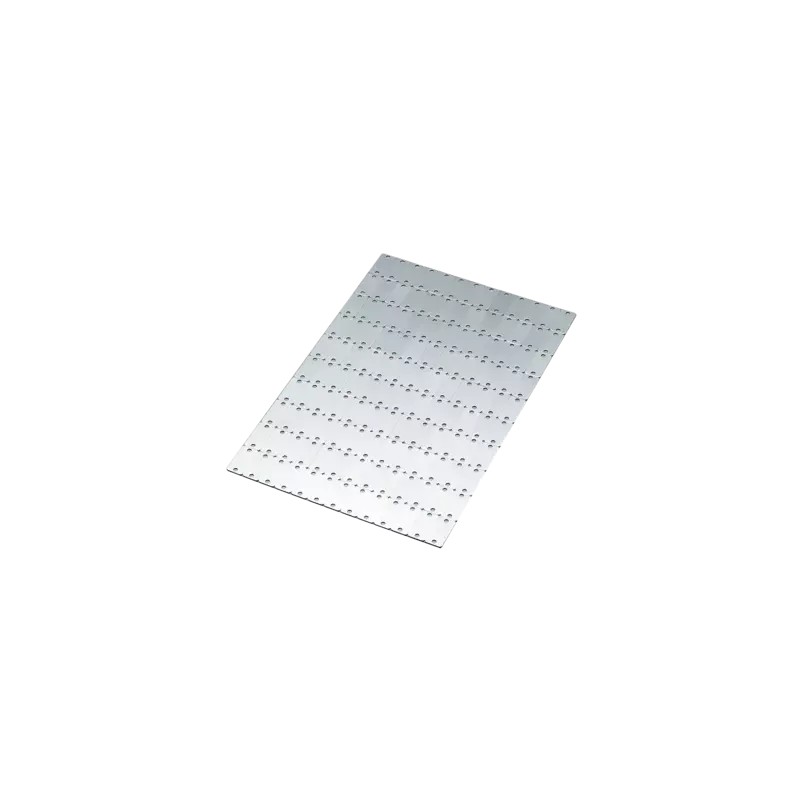

MURRPLASTIK 8603146003 8603146003 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

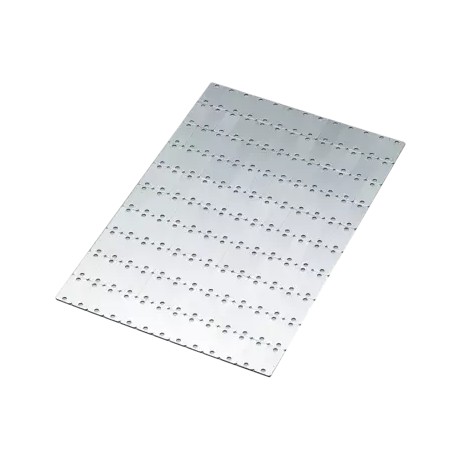

8603146003 MURRPLASTIK Labelling Rectangular with radius, 4x hole Corner radius 2 mm with adhesive foil Silv..

Reference: 8603146003

Manufacturer: MURRPLASTIK

Description:

Labelling Rectangular with radius, 4x hole Corner radius 2 mm; with adhesive foil Silver/Black/Silver
ALM 105x52 SI/SW/SI R, HF, 4x3,2 MS 1,5
ALM Rectangular with radius, 4x hole

Categories:

  • MURRPLASTIK > Marking systems

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 3.486,68 €

Unit Price: 8,9402 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-9 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Triple-layer material with black plastic inner layer (aluminium-plastic aluminium)

Outer layer available in silver or gold

Available with self-adhesive foil (SK) or with adhesive foil (HF).

Thickness: 1.5 mm

marking technique: Engraving

ALUMATT products are high pressure decorative laminated sheets, preferably in plain colours. In contrast to standard laminates, Alumatt has a three-layer symmetrical structure of melamine resin impregnated cellulose sheeting. The colour of all layers is exactly defined. The colours of both outer layers are usually in stark contrast to the core colour. This colour contrast makes the engraving very readable. For engraving, the outer layers are kept very thin. The layer thickness is approximately 0.08 mm. The plain papers are homogeneously coloured in the mass. The colour connection is secured with these paper qualities. The base is free of heavy metals and has a high level of light stability.

-40°C – 80°C

Alumatt (ALM)

B2

TypeOrder No.Label size mmNumber x Holes mmColour combinationMaterial thickness mmNo. per matSoftware typeMOQ qty.

Corner radius 1.5 mm; with adhesive foil

ALM 40x15 R1.5 HF, 4x3.0MM860314600140 x 154x 3.0Silver / Black / Silver1.59161591
ALM 45x15 R1.5 HF, 4x3.0MM860314600045 x 154x 3.0Silver / Black / Silver1.5786I78

Corner radius 3 mm; with adhesive foil

ALM 60x20 R3 HF, 4x5.0MM860314600560 x 204x 5.0Silver / Black / Silver1.5502P50
ALM 130x55 R3 HF, 4x3.3MM8603146006130 x 554x 3.3Silver / Black / Silver1.568C6

Corner radius 1 mm; with self-adhesive foil

ALM 70x45 R1 SK, 4x3.2MM860314000270 x 454x 3.2Silver / Black / Silver1.516H8416

Corner radius 2 mm; with adhesive foil

ALM 105x52 R2 HF, 4x3.2MM8603146003105 x 524x 3.2Silver / Black / Silver1.562386
ALM 148x105 R2 HF, 4x3.2MM8603146002148 x 1054x 3.2Silver / Black / Silver1.522372

Corner radius 2.5 mm; with self-adhesive foil

ALM 150x40 R2.5 SK, 4x3.2MM8603140001150 x 404x 3.2Silver / Black / Silver1.510H3810
