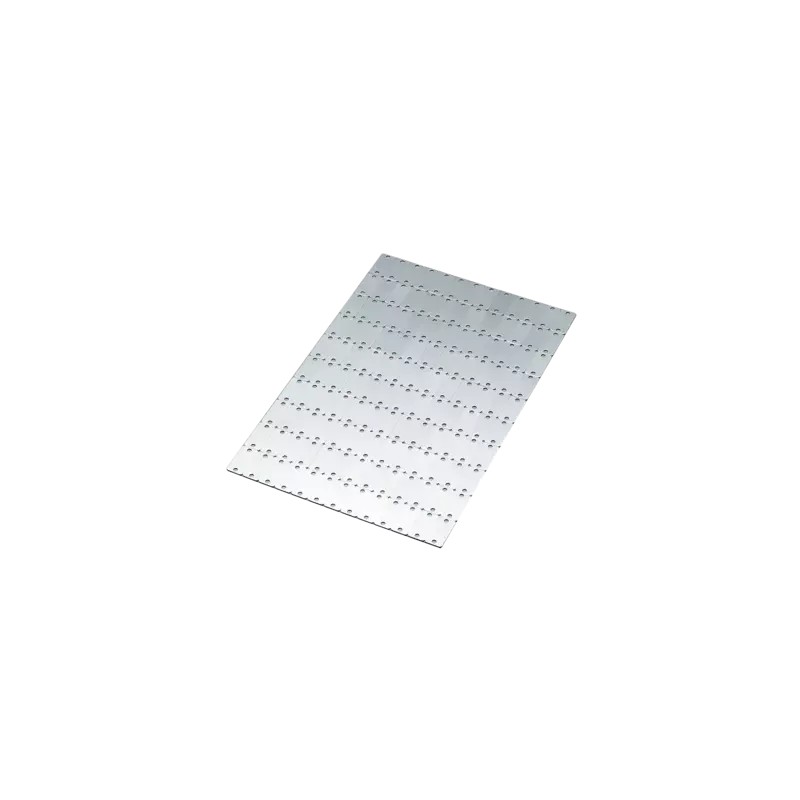

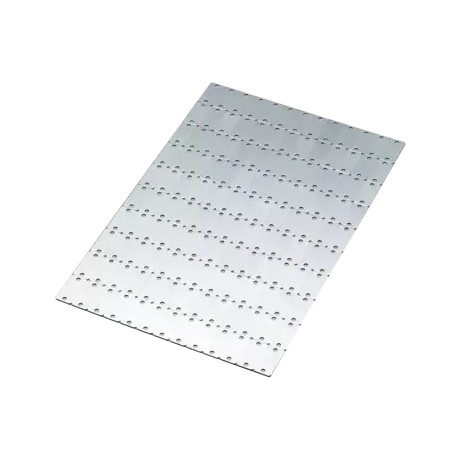

8603146002 MURRPLASTIK Labelling Rectangular with radius, 4x hole Corner radius 2 mm with adhesive foil Silv..
8603146002
MURRPLASTIK
390
Labelling Rectangular with radius, 4x hole Corner radius 2 mm; with adhesive foil Silver/Black/Silver
ALM 148x105 SI/SW/SI R, HF, 4x3,2 MS 1,5
Rectangular with radius, 4x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Triple-layer material with black plastic inner layer (aluminium-plastic aluminium)
Outer layer available in silver or gold
Available with self-adhesive foil (SK) or with adhesive foil (HF).
Thickness: 1.5 mm
marking technique: Engraving
ALUMATT products are high pressure decorative laminated sheets, preferably in plain colours. In contrast to standard laminates, Alumatt has a three-layer symmetrical structure of melamine resin impregnated cellulose sheeting. The colour of all layers is exactly defined. The colours of both outer layers are usually in stark contrast to the core colour. This colour contrast makes the engraving very readable. For engraving, the outer layers are kept very thin. The layer thickness is approximately 0.08 mm. The plain papers are homogeneously coloured in the mass. The colour connection is secured with these paper qualities. The base is free of heavy metals and has a high level of light stability.
-40°C – 80°C
Alumatt (ALM)
B2
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Corner radius 1.5 mm; with adhesive foil | ||||||||||
| ALM 40x15 R1.5 HF, 4x3.0MM | 8603146001 | 40 x 15 | 4x 3.0 | Silver / Black / Silver | 1.5 | 91 | 615 | 91 | ||
| ALM 45x15 R1.5 HF, 4x3.0MM | 8603146000 | 45 x 15 | 4x 3.0 | Silver / Black / Silver | 1.5 | 78 | 6I | 78 | ||
Corner radius 3 mm; with adhesive foil | ||||||||||
| ALM 60x20 R3 HF, 4x5.0MM | 8603146005 | 60 x 20 | 4x 5.0 | Silver / Black / Silver | 1.5 | 50 | 2P | 50 | ||
| ALM 130x55 R3 HF, 4x3.3MM | 8603146006 | 130 x 55 | 4x 3.3 | Silver / Black / Silver | 1.5 | 6 | 8C | 6 | ||
Corner radius 1 mm; with self-adhesive foil | ||||||||||
| ALM 70x45 R1 SK, 4x3.2MM | 8603140002 | 70 x 45 | 4x 3.2 | Silver / Black / Silver | 1.5 | 16 | H84 | 16 | ||
Corner radius 2 mm; with adhesive foil | ||||||||||
| ALM 105x52 R2 HF, 4x3.2MM | 8603146003 | 105 x 52 | 4x 3.2 | Silver / Black / Silver | 1.5 | 6 | 238 | 6 | ||
| ALM 148x105 R2 HF, 4x3.2MM | 8603146002 | 148 x 105 | 4x 3.2 | Silver / Black / Silver | 1.5 | 2 | 237 | 2 | ||
Corner radius 2.5 mm; with self-adhesive foil | ||||||||||
| ALM 150x40 R2.5 SK, 4x3.2MM | 8603140001 | 150 x 40 | 4x 3.2 | Silver / Black / Silver | 1.5 | 10 | H38 | 10 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8603146002 8603146002 EN_8603146006.pdf | 831 Kbytes |
|
