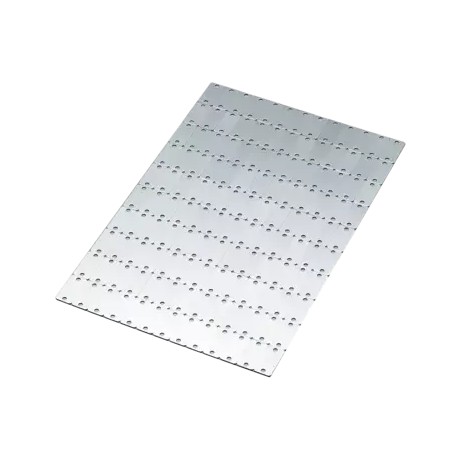

8603126002 MURRPLASTIK Labelling Rectangular with radius, 2x hole Corner radius 2 mm with adhesive foil Silv..
8603126002
MURRPLASTIK
480
Labelling Rectangular with radius, 2x hole Corner radius 2 mm; with adhesive foil Silver/Black/Silver
ALM 57x26 SI/SW/SI R, HF, 2x3,2 MS 1,5
ALM Rectangular with radius, 2x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Triple-layer material with black plastic inner layer (aluminium-plastic aluminium)
Outer layer available in silver or gold
Available with self-adhesive foil (SK) or with adhesive foil (HF).
Thickness: 1.5 mm
marking technique: Engraving
ALUMATT products are high pressure decorative laminated sheets, preferably in plain colours. In contrast to standard laminates, Alumatt has a three-layer symmetrical structure of melamine resin impregnated cellulose sheeting. The colour of all layers is exactly defined. The colours of both outer layers are usually in stark contrast to the core colour. This colour contrast makes the engraving very readable. For engraving, the outer layers are kept very thin. The layer thickness is approximately 0.08 mm. The plain papers are homogeneously coloured in the mass. The colour connection is secured with these paper qualities. The base is free of heavy metals and has a high level of light stability.
-40°C – 80°C
Alumatt (ALM)
B2
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Corner radius 2 mm; with adhesive foil | ||||||||||
| ALM 15x50 R2, HF, 2x4,2MM | 8603126021 | 15 x 50 | 2x 4.2 | Silver / Black / Silver | 1.5 | 240 | L52 | 80 | ||
| ALM 15x80 R2, HF, 2x4,0MM | 8603126029 | 15 x 80 | 2x 4.0 | Silver / Black / Silver | 1.5 | 40 | A6G | 40 | ||
| ALM 25x10 R2, HF, 2x3,2MM | 8603126023 | 25 x 10 | 2x 3.2 | Silver / Black / Silver | 1.5 | 240 | Z26 | 240 | ||
| ALM 30x10 R2 HF, 2x2.5MM | 8603126015 | 30 x 10 | 2x 2.5 | Silver / Black / Silver | 1.5 | 200 | J04 | 200 | ||
| ALM 30x12 R2, HF, 2x3,2MM | 8603126024 | 30 x 12 | 2x 3.2 | Silver / Black / Silver | 1.5 | 160 | Z27 | 160 | ||
| ALM 30x15 R2 HF, 2x2.7MM | 8603126019 | 30 x 15 | 2x 2.7 | Silver / Black / Silver | 1.5 | 130 | L40 | 130 | ||
| ALM 30x15 R2 HF, 2x3.5MM | 8603126007 | 30 x 15 | 2x 3.5 | Silver / Black / Silver | 1.5 | 130 | 1Y | 130 | ||
| ALM 30x15 R2, HF, 2x4,2MM | 8603126022 | 30 x 15 | 2x 4.2 | Silver / Black / Silver | 1.5 | 130 | L53 | 130 | ||
| ALM 30x50 R2 HF, 2x3.0MM | 8603126020 | 30 x 50 | 2x 3.0 | Silver / Black / Silver | 1.5 | 40 | L46 | 40 | ||
| ALM 36x10 R2 HF, 2x2.5MM | 8603126000 | 36 x 10 | 2x 2.5 | Silver / Black / Silver | 1.5 | 160 | 429 | 160 | ||
| ALM 42x16 R2 HF, 2x3.2MM | 8603126005 | 42 x 16 | 2x 3.2 | Silver / Black / Silver | 1.5 | 84 | 4F | 84 | ||
| ALM 50x15 R2 HF, 2x3.2MM | 8603126004 | 50 x 15 | 2x 3.2 | Silver / Black / Silver | 1.5 | 78 | 4D | 78 | ||
| ALM 50x15 R2 HF, 2x3.5MM | 8603126003 | 50 x 15 | 2x 3.5 | Silver / Black / Silver | 1.5 | 78 | 4B | 78 | ||
| ALM 52x18 R2 HF, 2x2.8MM | 8603126018 | 52 x 18 | 2x 2.8 | Silver / Black / Silver | 1.5 | 55 | K50 | 55 | ||
| ALM° 52x18 R2 HF, 2x3.2MM | 8603126006 | 52 x 18 | 2x 3.2 | Silver / Black / Silver | 1.5 | 55 | 4H | 55 | ||
| ALM 52x22 R2, HF, 2x3,0MM | 8603126008 | 52 x 22 | 2x 3.0 | Silver / Black / Silver | 1.5 | 45 | B50 | 45 | ||
| ALM 57x26 R2 HF, 2x3.2MM | 8603126002 | 57 x 26 | 2x 3.2 | Silver / Black / Silver | 1.5 | 35 | 239 | 35 | ||
| ALM 60x20 R2 HF, 2x2.5MM | 8603126014 | 60 x 20 | 2x 2.5 | Silver / Black / Silver | 1.5 | 50 | J03 | 50 | ||
| ALM 60x30 R2 HF, 2x3.5MM | 8603126011 | 60 x 30 | 2x 3.5 | Silver / Black / Silver | 1.5 | 30 | I81 | 30 | ||
| ALM 60x43 R2 HF, 2x2.5MM | 8603126013 | 60 x 43 | 2x 2.5 | Silver / Black / Silver | 1.5 | 20 | J02 | 20 | ||
| ALM 60x46 R2 HF, 2x2.5MM | 8603126017 | 60 x 46 | 2x 2.5 | Silver / Black / Silver | 1.5 | 20 | J06 | 20 | ||
| ALM 60x52 R2 HF, 2x2.5MM | 8603126012 | 60 x 52 | 2x 2.5 | Silver / Black / Silver | 1.5 | 15 | J01 | 15 | ||
| ALM 70x18 R2, HF, 2x3,3MM | 8603126009 | 70 x 18 | 2x 3.3 | Silver / Black / Silver | 1.5 | 44 | H29 | 44 | ||
| ALM 70x27 R2 HF, 2x3,3MM | 8603126010 | 70 x 27 | 2x 3.3 | Silver / Black / Silver | 1.5 | 28 | H30 | 28 | ||
| ALM 100x18 R2 HF, 2x3,5MM | 8603126026 | 100 x 18 | 2x 3.5 | Silver / Black / Silver | 1.5 | 33 | Z87 | 33 | ||
| ALM 74x27 R2 HF, 2x3,5MM | 8603126025 | 74 x 27 | 2x 3.5 | Silver / Black / Silver | 1.5 | 28 | Z86 | 28 | ||
| ALM 74x50 R2 HF, 2x3,5MM | 8603126027 | 74 x 50 | 2x 3.5 | Silver / Black / Silver | 1.5 | 16 | Z88 | 16 | ||
| ALM 100x50 R2 HF, 2x2.5MM | 8603126016 | 100 x 50 | 2x 2.5 | Silver / Black / Silver | 1.5 | 12 | J05 | 12 | ||
Corner radius 1 mm; with self-adhesive foil | ||||||||||
| ALM 25x10 R1 SK, 2x3.2MM | 8603120007 | 25 x 10 | 2x 3.2 | Silver / Black / Silver | 1.5 | 240 | H85 | 240 | ||
| ALM 60x15 R1 SK, 2x3.2MM | 8603120005 | 60 x 15 | 2x 3.2 | Silver / Black / Silver | 1.5 | 65 | H82 | 65 | ||
| ALM 70x15 R1 SK, 2x3.2MM | 8603120006 | 70 x 15 | 2x 3.2 | Silver / Black / Silver | 1.5 | 52 | H83 | 52 | ||
Corner radius 2 mm; with self-adhesive foil | ||||||||||
| ALM 27x18 R2 SK, 2x3.0MM | 8603120000 | 27 x 18 | 2x 3.0 | Silver / Black / Silver | 1.5 | 121 | 075 | 121 | ||
| ALM 36x10 R2 SK, 2x2.5MM | 8603220000 | 36 x 10 | 2x 2.5 | Silver / Black / Silver | 1.5 | 160 | 391 | 160 | ||
Corner radius 2.5 mm; with self-adhesive foil | ||||||||||
| ALM 30x15 R2.5 SK, 2x3.2MM | 8603120001 | 30 x 15 | 2x 3.2 | Silver / Black / Silver | 1.5 | 130 | H33 | 130 | ||
| ALM 50x25 R2.5 SK, 2x3.2MM | 8603120002 | 50 x 25 | 2x 3.2 | Silver / Black / Silver | 1.5 | 48 | H34 | 48 | ||
| ALM 60x15 R2.5 SK, 2x3.2MM | 8603120003 | 60 x 15 | 2x 3.2 | Silver / Black / Silver | 1.5 | 65 | H35 | 65 | ||
| ALM 70x45 R2.5 SK, 2x3.2MM | 8603120004 | 70 x 45 | 2x 3.2 | Silver / Black / Silver | 1.5 | 16 | H37 | 16 | ||
Corner radius 1.5 mm; with adhesive foil | ||||||||||
| ALM 40x15 R1.5 HF, 2x2.5MM | 8603126001 | 40 x 15 | 2x 2.5 | Silver / Black / Silver | 1.5 | 91 | 196 | 91 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8603126002 8603126002 EN_8603120000.pdf | 919 Kbytes |
|
