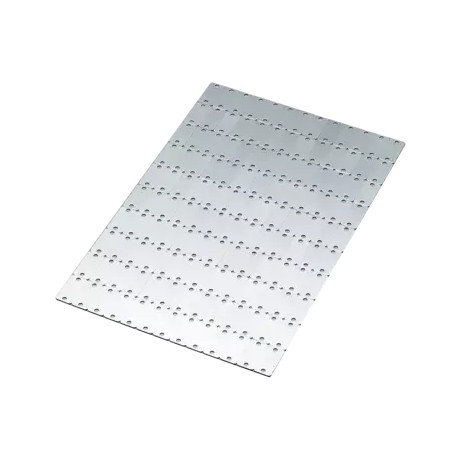

8603116001 MURRPLASTIK Labelling Rectangular with radius, 1x hole Corner radius 2 mm with adhesive foil Silv..
8603116001
MURRPLASTIK
2400
Labelling Rectangular with radius, 1x hole Corner radius 2 mm; with adhesive foil Silver/Black/Silver
ALM 75x15 SI/SW/SI R HF 1x3,5 MS1,5
ALM Rectangular with radius, 1x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Triple-layer material with black plastic inner layer (aluminium-plastic aluminium)
Outer layer available in silver or gold
Available with self-adhesive foil (SK) or with adhesive foil (HF).
Thickness: 1.5 mm
marking technique: Engraving
ALUMATT products are high pressure decorative laminated sheets, preferably in plain colours. In contrast to standard laminates, Alumatt has a three-layer symmetrical structure of melamine resin impregnated cellulose sheeting. The colour of all layers is exactly defined. The colours of both outer layers are usually in stark contrast to the core colour. This colour contrast makes the engraving very readable. For engraving, the outer layers are kept very thin. The layer thickness is approximately 0.08 mm. The plain papers are homogeneously coloured in the mass. The colour connection is secured with these paper qualities. The base is free of heavy metals and has a high level of light stability.
-40°C – 80°C
Alumatt (ALM)
B2
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Corner radius 2 mm; with adhesive foil | ||||||||||
| ALM 12x12 R2 HF, 1x3.2MM | 8603116003 | 12 x 12 | 1x 3.2 | Silver / Black / Silver | 1.5 | 400 | 9I | 400 | ||
| ALM 15x15 R2 HF, 1x3,2MM | 8603116008 | 15 x 15 | 1x 3.2 | Silver / Black / Silver | 1.5 | 247 | Z58 | 247 | ||
| ALM 75x15 R2 HF, 1x3.5MM | 8603116001 | 75 x 15 | 1x 3.5 | Silver / Black / Silver | 1.5 | 52 | 84 | 52 | ||
Corner radius 7 mm; with adhesive foil | ||||||||||
| ALM 20x20 R7 HF, 1x2.2MM | 8603116002 | 20 x 20 | 1x 2.2 | Silver / Black / Silver | 1.5 | 150 | 4K | 150 | ||
Corner radius 9 mm; with adhesive foil | ||||||||||
| ALM 20x20 R9 HF, 1x2.5MM | 8603116005 | 20 x 20 | 1x 2.5 | Silver / Black / Silver | 1.5 | 150 | I98 | 150 | ||
| ALM 20x20 R9 HF, 1x2.5MM | 8603116011 | 20 x 20 | 1x 2.5 | Silver / Black / Silver | 1.5 | 150 | A0B | 150 | ||
| ALM 25x25 R9 HF, 1x3.2MM | 8603116000 | 25 x 25 | 1x 3.2 | Silver / Black / Silver | 1.5 | 96 | 931 | 96 | ||
| ALM 25x25 R9 HF, 1x3.2(22) mm | 8603116004 | 25 x 25 | 1x 3.2 | Silver / Black / Silver | 1.5 | 96 | H39 | 96 | ||
| ALM 30x30 R9 HF, 1x3.2MM | 8603116007 | 30 x 30 | 1x 3.2 | Silver / Black / Silver | 1.5 | 60 | M28 | 60 | ||
Corner radius 5 mm; with adhesive foil | ||||||||||
| ALM 60,7x60,7 R5 HF, 1x32MM | 8603116009 | 60.7 x 60.7 | 1x 32.0 | Silver / Black / Silver | 1.5 | 12 | Z72 | 12 | ||
Corner radius 5 mm; with high-strength adhesive foam foil | ||||||||||
| ALM 61x61 R5 SKS, 1x32.0MM | 8603112001 | 61 x 61 | 1x 32.0 | Silver / Black / Silver | 1.5 | 12 | Z16 | 12 | ||
Corner radius 2 mm; with self-adhesive foil | ||||||||||
| ALM 61.5x61.5 R2 SK, 1x30MM | 8603110001 | 61.5 x 61.5 | 1x 30.0 | Silver / Black / Silver | 1.5 | 12 | M81 | 12 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8603116001 8603116001 EN_8603116007.pdf | 835 Kbytes |
|
