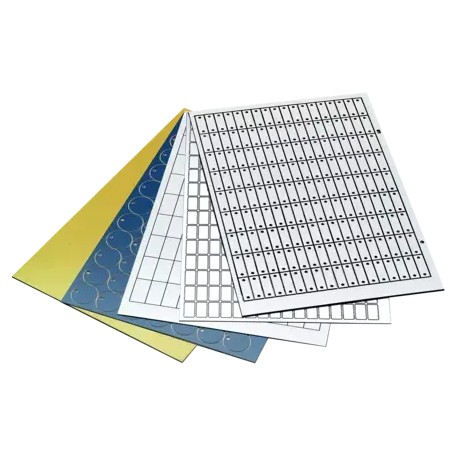

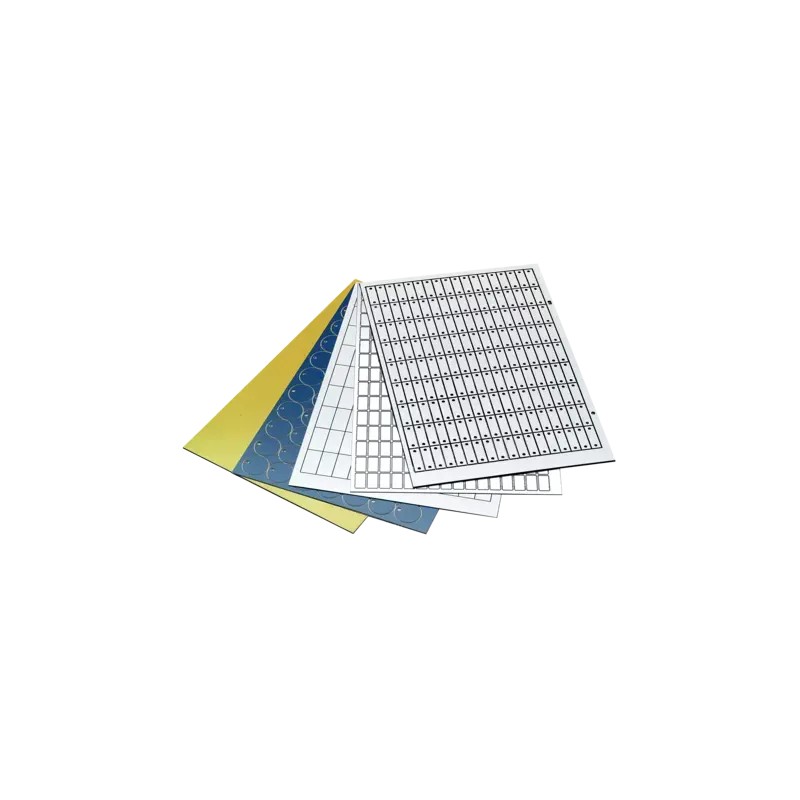

8601242000 MURRPLASTIK Labelling Rectangular without radius, 4x hole Without corner radius with high-strengt..
8601242000
MURRPLASTIK
9
Labelling Rectangular without radius, 4x hole Without corner radius; with high-strength adhesive foam foil White / Black
DM 80x60 WS/SW SKS, 4x2,6
DM Rectangular without radius, 4x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Double-layer material with a coloured outer layer in various colour combinations
Optionally available with self-adhesive foil (SK), strong self-adhesive foil (SSK) or adhesive foil (HF)
Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation
UV resistant outer layer
Thickness: 0.8 mm or 1.5 mm
Labelling methods: Engraving and plotting
-30°C – 80°C
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Without corner radius; with self-adhesive foil | ||||||||||
| DM 100x70 SK, 4x3,5MM | 8601240024 | 100 x 70 | 4x 3.5 | White / Black | 1.5 | 4 | Z32 | 4 | ||
| DM 190x90 SK, 4x3,0MM | 8601240025 | 190 x 90 | 4x 3.0 | Siemens silver/black | 0.8 | 2 | Z50 | 2 | ||
| DM 40x14 SK, 4x3,0MM | 8601240023 | 40 x 14 | 4x 3.0 | Siemens silver/black | 1.5 | 84 | M77 | 84 | ||
| DM 70x82 SK, 4x2,6MM | 8601240020 | 70 x 82 | 4x 2.6 | Siemens silver/black | 0.8 | 8 | 6G | 8 | ||
| DM 72x20 SK, 4x2,0MM | 8601240015 | 72 x 20 | 4x 2.0 | White / Black | 0.8 | 36 | 49 | 36 | ||
| DM 58x90 SK, 4.4MM | 8601240021 | 58 x 90 | 4x 4.0 | Blue / White | 0.8 | 10 | D53 | 10 | ||
| DM 72x48 SK, 4x3,0MM | 8601240022 | 72 x 48 | 4x 3.0 | Siemens silver/black | 0.8 | 12 | D57 | 12 | ||
| DM 13x37 SK, 4x3,0MM | 8601240003 | 13 x 37 | 4x 3.0 | White / Black | 1.5 | 105 | 486 | 105 | ||
| DM 72x48 SK, 4x3,0MM | 8601240001 | 72 x 48 | 4x 3.0 | White / Black | 0.8 | 12 | B74 | 12 | ||
| DM 72x48 SK, 4x3,0MM | 8601240002 | 72 x 48 | 4x 3.0 | Silver / Black | 0.8 | 12 | 181 | 12 | ||
| DM 95x58 SK, 4x3,0MM | 8601240004 | 95 x 58 | 4x 3.0 | White / Black | 0.8 | 9 | B76 | 9 | ||
| DM 95x58 SK, 4x3,0MM | 8601240000 | 95 x 58 | 4x 3.0 | Silver / Black | 0.8 | 9 | B7A | 9 | ||
| DM 115x60 SK, 4x4,0MM | 8601240008 | 115 x 60 | 4x 4.0 | Siemens silver/black | 0.8 | 6 | 758 | 6 | ||
| DM 145x40 SK, 4x3,6MM | 8601240005 | 145 x 40 | 4x 3.6 | White / Black | 0.8 | 8 | 733 | 8 | ||
| DM 290x90 SK, 4x3,5MM | 8601240007 | 290 x 90 | 4x 3.5 | Siemens silver/black | 0.8 | 2 | 746 | 2 | ||
| DM 120x80 SK, 4x3,5MM | 8601240011 | 120 x 80 | 4x 3.5 | Siemens silver/black | 0.8 | 4 | 998 | 4 | ||
| DM 95x58 SK, 4x2,3MM | 8601240014 | 95 x 58 | 4x 3.2 | Siemens silver/black | 1.5 | 9 | 407 | 9 | ||
| DM 50x50 SK, 4x3,0MM | 8601220092 | 50 x 50 | 4x 3.0 | White / Black | 0.8 | 15 | 248 | 15 | ||
| DM 100x60 SK, 4x2,5MM | 8601240016 | 100 x 60 | 4x 2.5 | White / Black | 1.5 | 6 | 501 | 6 | ||
| DM 142x187 SK, 4x4,0MM | 8601240017 | 142 x 187 | 4x 4.0 | Siemens silver/black | 0.8 | 2 | 053 | 2 | ||
| DM 90x45 SK, 4x3,0MM | 8601240018 | 90 x 45 | 4x 3.0 | White / Black | 0.8 | 12 | 068 | 12 | ||
| DM 50x60 SK, 4x3,2MM | 8601240019 | 50 x 60 | 4x 3.2 | White / Black | 0.8 | 15 | 172 | 15 | ||
Without corner radius; with adhesive foil | ||||||||||
| DM 105x52 HF, 4x2,5MM | 8601246031 | 105 x 52 | 4x 2.5 | White / Red | 1.5 | 6 | A2F | 6 | ||
| DM 120x10 HF, 4x3,2MM | 8601246026 | 120 x 10 | 4x 3.2 | White / Black | 1.5 | 34 | A0C | 34 | ||
| DM 147x187 HF, 4x4,0MM | 8601246009 | 147 x 187 | 4x 4.0 | White / Black | 0.8 | 2 | 7E | 2 | ||
| DM 200x110 HF, 4x4,0MM | 8601246013 | 200 x 110 | 4x 4.0 | Red / White | 0.8 | 1 | A21 | 1 | ||
| DM 20x90 HF, 4x3,2MM | 8601246028 | 20 x 90 | 4x 3.2 | Blue / White | 0.8 | 28 | A2C | 28 | ||
| DM 20x90 HF, 4x3,2MM | 8601246030 | 20 x 90 | 4x 3.2 | Brown / White | 0.8 | 28 | A5D | 28 | ||
| DM 20x90 HF, 4x3,2MM | 8601246029 | 20 x 90 | 4x 3.2 | Green / White | 0.8 | 28 | A3C | 28 | ||
| DM 20x90 HF, 4x3,2MM | 8601246027 | 20 x 90 | 4x 3.2 | Red / White | 0.8 | 28 | A1C | 28 | ||
| DM 210x40 HF, 4x3,0MM | 8601246025 | 210 x 40 | 4x 3.0 | White / Black | 0.8 | 4 | Z25 | 4 | ||
| DM 250x140 HF, 4x5,0MM | 8601246024 | 250 x 140 | 4x 5.0 | Red / Black | 0.8 | 1 | Z22 | 1 | ||
| DM 294x187 HF, 4x4,0MM | 8601246010 | 294 x 187 | 4x 4.0 | White / Black | 0.8 | 1 | 7F | 1 | ||
| DM 294x187 HF, 4x4,0MM | 8601246016 | 294 x 187 | 4x 4.0 | White / Black | 1.5 | 1 | D99 | 1 | ||
| DM 40x14 HF, 4x3,0MM | 8601246023 | 40 x 14 | 4x 3.0 | Siemens silver/black | 1.5 | 84 | Z10 | 84 | ||
| DM 40x80 HF, 4x2,5MM | 8601246007 | 40 x 80 | 4x 2.5 | White / Black | 1.5 | 14 | 4T | 14 | ||
| DM 50x15 HF, 4x3,2MM | 8601246011 | 50 x 15 | 4x 3.2 | Siemens silver/black | 0.8 | 60 | 8Q | 60 | ||
| DM 50x15 HF, 4x3,2MM | 8601246022 | 50 x 15 | 4x 3.2 | White / Black | 0.8 | 60 | L41 | 60 | ||
| DM 50x80 HF, 4x3,5MM | 8601246017 | 50 x 80 | 4x 3.5 | Black / White | 1.5 | 10 | G71 | 10 | ||
| DM 95x45 HF, 4x4,0MM | 8601246008 | 95 x 45 | 4x 4.0 | White / Black | 0.8 | 12 | 7D | 12 | ||
| DM 100x90 HF, 4x2,0MM | 8601246014 | 100 x 90 | 2x 2.0 | Siemens silver/black | 0.8 | 4 | A26 | 4 | ||
| DM 55x90 HF, 4x2,2MM | 8601246015 | 90 x 55 | 4x 2.2 | Siemens silver/black | 0.8 | 10 | D13 | 10 | ||
| DM 60x150 HF, 4x3,5MM | 8601246012 | 60 x 150 | 4x 3.5 | Yellow / Black | 1.5 | 4 | 9T | 4 | ||
| DM 120x20 HF, 4x3,2MM | 8601246001 | 120 x 20 | 4x 3.2 | White / Black | 1.5 | 18 | 872 | 18 | ||
| DM 142x187 HF, 4x4,0MM | 8601246003 | 142 x 187 | 4x 4.0 | Siemens silver/black | 0.8 | 2 | 140 | 2 | ||
| DM 38x34 HF, 4x3,5MM | 8601246004 | 38 x 34 | 4x 3.5 | White / Black | 0.8 | 35 | 529 | 35 | ||
| DM 30x15 HF, 4x3,0MM | 8601246006 | 30 x 15 | 4x 3.0 | White / Black | 0.8 | 108 | 287 | 108 | ||
Without corner radius; with high-strength adhesive foam foil | ||||||||||
| DM 80x60 SKS, 4x2,6MM | 8601242000 | 80 x 60 | 4x 2.6 | White / Black | 0.8 | 9 | 507 | 9 | ||
| DM 105x37 SKS, 4x4,5MM | 8601242002 | 105 x 37 | 4x 4.5 | Siemens silver/black | 0.8 | 10 | 960 | 10 | ||
| DM 55x160 SKS, 4x2,1MM | 8601242001 | 55 x 160 | 4x 2.1 | Siemens silver/black | 0.8 | 5 | 961 | 5 | ||
| DM 105x74 SKS, 4x4,5MM | 8601242003 | 105 x 74 | 4x 4.5 | Siemens silver/black | 0.8 | 4 | 971 | 4 | ||
| DM 90x90 SKS, 4x3,2MM | 8601242004 | 90 x 90 | 4x 3.2 | White / Black | 0.8 | 6 | A20 | 6 | ||
| DM 80x60 SKS, 4x2,6MM | 8601242005 | 80 x 60 | 4x 2.6 | Siemens silver/black | 0.8 | 9 | 314 | 9 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8601242000 8601242000 EN_8601220092.pdf | 970 Kbytes |
|
