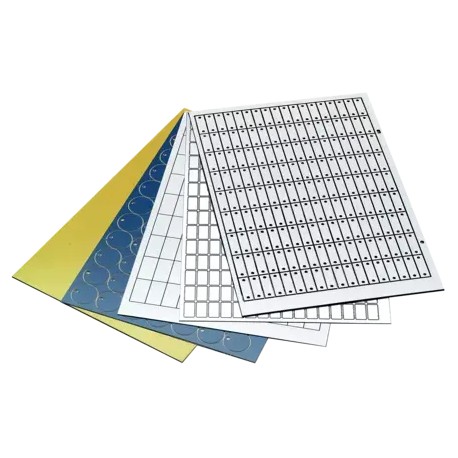

8601210003 MURRPLASTIK Labelling Rectangular without radius, 1x hole Without corner radius with self-adhesiv..
8601210003
MURRPLASTIK
105
Labelling Rectangular without radius, 1x hole Without corner radius; with self-adhesive foil White / Black
DM 13x37 WS/SW SK, 1x2,0, MS1,5
Rectangular without radius, 1x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Double-layer material with a coloured outer layer in various colour combinations
Optionally available with self-adhesive foil (SK), strong self-adhesive foil (SSK) or adhesive foil (HF)
Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation
UV resistant outer layer
Thickness: 0.8 mm or 1.5 mm
Labelling methods: Engraving and plotting
-30°C – 80°C
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Without corner radius; with adhesive foil | ||||||||||
| DM 10x20 HF, 1x2,6MM | 8601216005 | 10 x 20 | 1x 2.5 | Siemens silver/black | 1.5 | 252 | 2S | 252 | ||
| DM 10x30 HF, 1x3,0MM | 8601216000 | 10 x 30 | 1x 3.0 | White / Black | 0.8 | 162 | A86 | 162 | ||
| DM 120x15 HF, 1x3,0MM | 8601216004 | 120 x 15 | 1x 3.0 | White / Black | 0.8 | 24 | 179 | 24 | ||
| DM 13x25 HF, 1x3,0MM | 8601216008 | 13 x 25 | 1x 3.0 | White / Black | 0.8 | 147 | 8Z | 147 | ||
| DM 20x30 HF, 1x2,0MM | 8601216003 | 20 x 30 | 1x 2.0 | White / Black | 1.5 | 84 | 681 | 84 | ||
| DM 29x60 HF, 1x3,0MM | 8601216007 | 29 x 60 | 1x 3.0 | Black / White | 0.8 | 30 | 5X | 30 | ||
| DM 30x15 HF, 1x1,0MM | 8601216002 | 30 x 15 | 1x 1.0 | White / Black | 0.8 | 108 | R2B | 108 | ||
| DM 30x15 HF, 1x1,0MM | 8601216001 | 30 x 15 | 1x 1.0 | White / Black | 1.5 | 108 | 495 | 108 | ||
Without corner radius; with self-adhesive foil | ||||||||||
| DM 10x30 SK, 1x3,0MM | 8601210001 | 10 x 30 | 1x 3.0 | White / Black | 0.8 | 162 | 479 | 162 | ||
| DM 13x37 SK, 1x2,0MM | 8601210003 | 13 x 37 | 1x 2.0 | White / Black | 1.5 | 105 | 436 | 105 | ||
| DM 15x25 SK, 1x1,0MM | 8601210015 | 15 x 25 | 1x 1.0 | White / Black | 1.5 | 133 | K91 | 133 | ||
| DM 29x10 SK, 1x3,0MM | 8601210012 | 29 x 10 | 1x 3.0 | White / Black | 1.5 | 170 | I65 | 170 | ||
| DM 30x15 SK, 1x3,2MM | 8601210000 | 30 x 15 | 1x 3.2 | White / Black | 0.8 | 108 | S7B | 108 | ||
| DM 30x30 SK, 1x4,0MM | 8601210004 | 30 x 30 | 1x 4.0 | Siemens silver/black | 0.8 | 54 | 756 | 54 | ||
| DM 40x30 SK, 1x22,5MM | 8601210007 | 40 x 30 | 1x 22.5 | Red / White | 0.8 | 42 | 944 | 42 | ||
| DM 40x30 SK, 1x22.5MM | 8601210005 | 40 x 30 | 1x 22.5 | Black / White | 0.8 | 42 | 816 | 42 | ||
| DM 40x30 SK, 1x24.0MM | 8601210006 | 40 x 30 | 1x 24.0 | White / Black | 0.8 | 42 | 818 | 42 | ||
| DM 40x50 SK, 1x24.0MM | 8601210009 | 40 x 50 | 1x 24.0 | White / Black | 0.8 | 21 | 901 | 21 | ||
| DM 45x45 SK, 1x30,6MM | 8601210008 | 45 x 45 | 1x 30.6 | Red / White | 0.8 | 24 | 02A | 24 | ||
| DM 50x30 SK, 1x3,2MM | 8601210011 | 50 x 30 | 1x 3.2 | Siemens silver/black | 1.5 | 30 | 6W | 30 | ||
Without corner radius; with high-strength adhesive foam foil | ||||||||||
| DM 48x48 SKS, 1x22.5MM | 8601212002 | 48 x 48 | 1x 22.5 | Yellow / Black | 0.8 | 18 | l68 | 18 | ||
| DM 48x48 SKS, 1x22.5MM | 8601212001 | 48 x 48 | 1x 22.5 | White / Black | 0.8 | 18 | L67 | 18 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8601210003 8601210003 EN_8601210000.pdf | 868 Kbytes |
|
