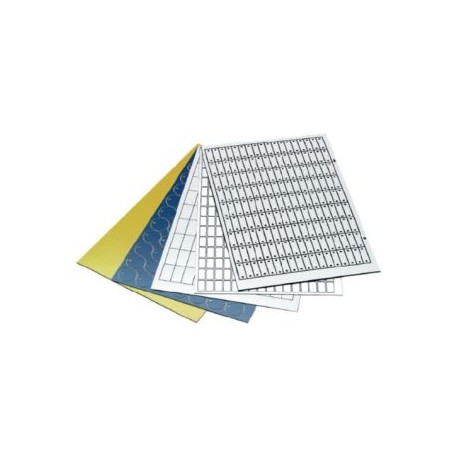

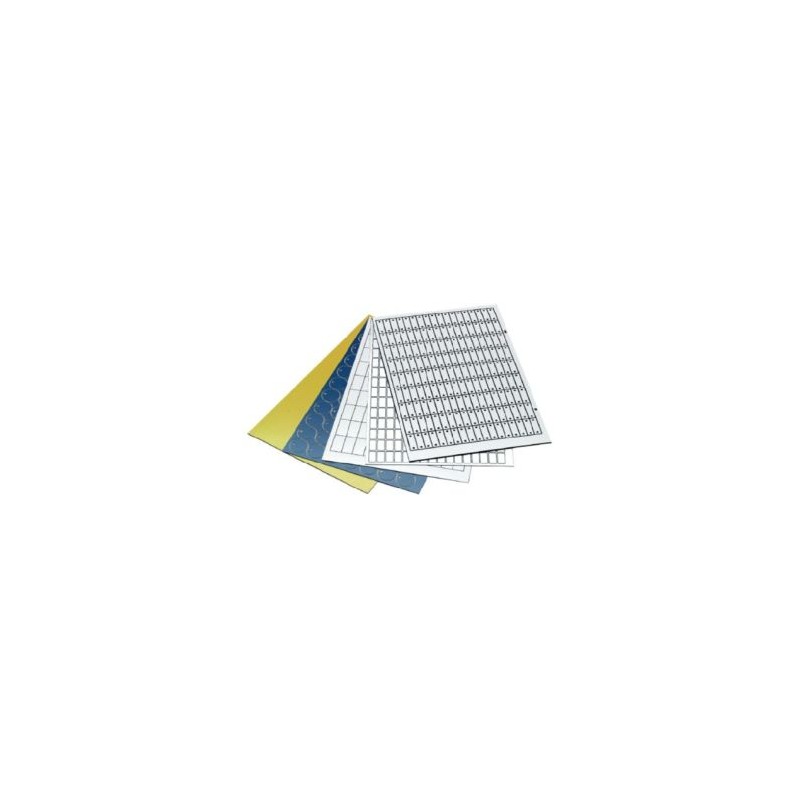

8601190000 MURRPLASTIK Labelling Rectangular with radius, 4x hole Corner radius 7.5 mm with self-adhesive fo..
8601190000
MURRPLASTIK
51
Labelling Rectangular with radius, 4x hole Corner radius 7.5 mm; with self-adhesive foil White / Black
DM 15x60 WS/SW R7,5 SK, 4x3,0
Rectangular with radius, 4x hole
Marking systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Double-layer material with a coloured outer layer in various colour combinations
Optionally available with self-adhesive foil (SK), strong self-adhesive foil (SSK) or adhesive foil (HF)
Available in square versions with and without corner radius, in round versions (circular blanks), optionally with holes, slots or granulation
UV resistant outer layer
Thickness: 0.8 mm or 1.5 mm
Labelling methods: Engraving and plotting
-30°C – 80°C
| Type | Order No. | Label size mm | Number x Holes mm | Colour combination | Material thickness mm | No. per mat | Software type | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Corner radius 1 mm; with adhesive foil | ||||||||||
| DM 105x140 R1 HF, 4x3,0MM | 8601146010 | 105 x 140 | 4x 3.0 | White / Black | 0.8 | 2 | 069 | 2 | ||
Corner radius 2 mm; with adhesive foil | ||||||||||
| DM 11x85 R2 HF, 4x3,0MM | 8601446004 | 11 x 85 | 4x 3.0 | White / Black | 0.8 | 50 | M83 | 50 | ||
| DM 11x85 R2 HF, 4x3,0MM | 8601446013 | 11 x 85 | 4x 3.0 | White / Black | 1.5 | 50 | Z18 | 50 | ||
| DM 120x20 R2 HF, 4x3,0MM | 8601446003 | 120 x 20 | 4x 3.0 | White / Black | 0.8 | 18 | M82 | 18 | ||
| DM 120x20 R2 HF, 4x3,0MM | 8601446012 | 120 x 20 | 4x 3.0 | White / Black | 1.5 | 18 | Z17 | 18 | ||
| DM 190x150 R2 HF, 4x3,0MM | 8601146003 | 190 x 150 | 4x 3.0 | White / Black | 0.8 | 1 | DS6 | 1 | ||
| DM 190x75 R2 HF, 4x3,0MM | 8601146002 | 190 x 75 | 4x 3.0 | White / Black | 0.8 | 2 | DS7 | 2 | ||
| DM 30x15 R2 HF, 4x2,0MM | 8601146019 | 30 x 15 | 4x 2.0 | White / Black | 0.8 | 99 | D83 | 99 | ||
| DM 30x15 R2 HF, 4x3,0MM | 8601146020 | 30 x 15 | 4x 3.0 | White / Black | 0.8 | 99 | D90 | 99 | ||
| DM 65x18 R2 HF, 4x3,0MM | 8601446002 | 65 x 18 | 4x 3.0 | Silver / Black | 1.5 | 40 | L76 | 40 | ||
| DM 65x40 R2 HF, 4x3,0MM | 8601146021 | 65 x 40 | 4x 3.0 | White / Black | 1.5 | 16 | D95 | 16 | ||
| DM 95x150 R2 HF, 4x3,0MM | 8601146001 | 95 x 150 | 4x 3.0 | White / Black | 0.8 | 3 | DS8 | 3 | ||
| DM° 15x60 R2 HF, 4x2.5MM | 8601146004 | 15 x 60 | 4x 2.5 | Siemens silver/black | 1.5 | 51 | 595 | 51 | ||
| DM° 15x60 R2 HF, 4x3.0MM | 8601146000 | 15 x 60 | 4x 3.0 | White / Black | 0.8 | 51 | B75 | 51 | ||
| DM° 65x40 R2 HF, 4x3.0MM | 8601126007 | 65 x 40 | 4x 3.0 | White / Black | 0.8 | 16 | DS9 | 16 | ||
Corner radius 2 mm; with self-adhesive foil | ||||||||||
| DM 15x59 R2 SK, 4x3.0MM | 8601120013 | 15 x 59 | 4x 3.0 | White / Black | 0.8 | 51 | 447 | 51 | ||
| DM 70x35 R2 SK, 4x2.2MM | 8601140001 | 70 x 35 | 4x 2.2 | Siemens silver/black | 0.8 | 20 | 786 | 20 | ||
| DM 85x75 R2 SK, 4x2.2MM | 8601440001 | 85 x 75 | 4x 2.2 | Siemens silver/black | 0.8 | 6 | J53 | 6 | ||
| DM 93x120 R2 SK, 4x3.2MM | 8601140006 | 93 x 120 | 4x 3.2 | White / Black | 0.8 | 3 | 157 | 3 | ||
| DM 95x120 R2 SK, 4x3.2MM | 8601140178 | 95 x 120 | 4x 3.2 | White / Black | 1.5 | 3 | D45 | 3 | ||
| DM 95x45 R2 SK, 4x2.2MM | 8601140000 | 95 x 45 | 4x 2.2 | Siemens silver/black | 0.8 | 12 | 784 | 12 | ||
| DM 95x93 R2 SK, 4x3.3MM | 8601140005 | 95 x 93 | 4x 3.3 | Silver / Black | 0.8 | 3 | 996 | 3 | ||
Corner radius 7.5 mm; with self-adhesive foil | ||||||||||
| DM 15x60 R7.5 SK, 4x3.0MM | 8601190000 | 15 x 60 | 4x 3.0 | White / Black | 0.8 | 51 | B70 | 51 | ||
Corner radius 3 mm; with adhesive foil | ||||||||||
| DM 40x15 R3 HF, 4x3,2MM | 8601146012 | 40 x 15 | 4x 3.2 | Siemens silver/black | 0.8 | 77 | 898 | 77 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS LABELLING SYSTEMS EN.pdf | 8 Mbytes |
|
| 8601190000 8601190000 EN_8601120013.pdf | 883 Kbytes |
|
