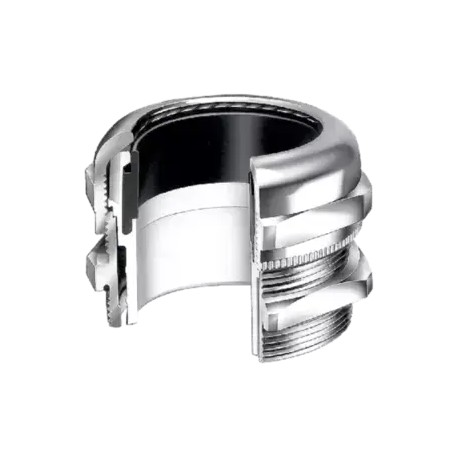

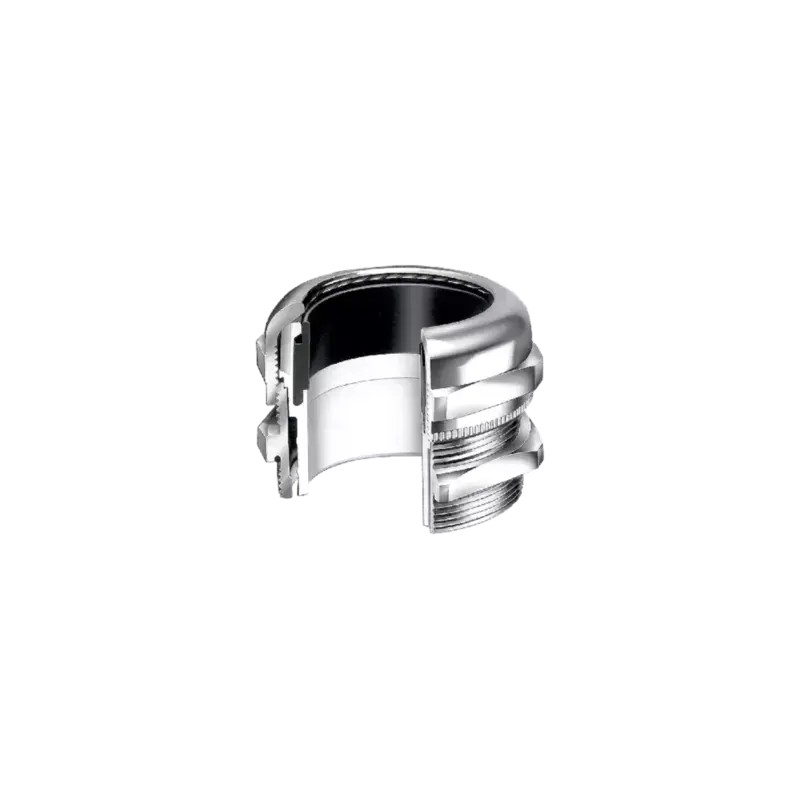

84125014 MURRPLASTIK Conduits and fitting systems Type WKM (metal version) Metric thread
84125014
MURRPLASTIK
50
Conduits and fitting systems Type WKM (metal version) Metric thread
WKM M16x1,5 KV, metal
Type WKM (metal version)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The cable fittings are made of nickel-plated brass and specially modified polyamide, and the seal of NBR. The KV-ME multi-inserts can be used in the fittings.
The WKM cable fittings feature the following advantages:
Very high protection class
Easy to assemble
Large clamping range
Vibration-resistant cap nut
Type OR O-ring included in delivery
Halogen-free
-40°C – 100°C, short term 120°C
acc. to UL94 V0
IP 68
EU railway approval
CSA approval
CULUS approval
CURUS approval
VDE approval
| Type | Order No. | Colour | Connecting thread | Clamping range (LW) mm | EH mm | GL mm | SW 1 / 2 mm | MOQ qty. | Fussnote Variante 2 (unter Var) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Metric thread | |||||||||||
| WKM-M12x1,5 | 84125010 | Silver | M12x1,5 | 3 – 6.5 | 19 | 5 | 14 / | 50 | |||
| WKM-M16x1,5 | 84125014 | Silver | M16x1,5 | 4 – 8 | 20 | 6 | 17 / | 50 | |||
| WKM-M20x1,5 | 84125018 | Silver | M20x1,5 | 6 – 12 | 22 | 6 | 22 / | 50 | |||
| WKM-M25x1,5 | 84125022 | Silver | M25x1,5 | 13 – 18 | 25 | 7 | 27 / | 25 | |||
| WKM-M32x1,5 | 84125026 | Silver | M32x1,5 | 18 – 25 | 29 | 8 | 40 / | 25 | |||
| WKM-M40x1,5 | 84125030 | Silver | M40x1,5 | 22 – 32 | 35 | 8 | 50 / | 10 | |||
| WKM-M50x1,5 | 84125034 | Silver | M50x1,5 | 32 – 38 | 37 | 9 | 57 / | 10 | |||
| WKM-M63x1,5 | 84125038 | Silver | M63x1,5 | 37 – 44 | 38 | 10 | 64 / 68 | 10 | |||
Pg threads | |||||||||||
| WKM-Pg 07 | 84121010 | Silver | Pg 07 | 3 – 6.5 | 19 | 5 | 14 / | 50 | |||
| WKM-Pg 09 | 84121012 | Silver | Pg 09 | 4 – 8 | 20 | 6 | 17 / | 50 | |||
| WKM-Pg 11 | 84121014 | Silver | Pg 11 | 5 – 10 | 21 | 6 | 20 / | 50 | |||
| WKM-Pg 13.5 | 84121016 | Silver | Pg 13.5 | 6 – 12 | 22 | 6.5 | 22 / | 50 | |||
| WKM-Pg 16 | 84121018 | Silver | Pg 16 | 10 – 14 | 23 | 6.5 | 24 / | 50 | |||
| WKM-Pg 21 | 84121020 | Silver | Pg 21 | 13 – 18 | 25 | 7 | 30 / | 25 | |||
| WKM-Pg 29 | 84121022 | Silver | Pg 29 | 18 – 25 | 29 | 8 | 40 / | 25 | |||
| WKM-Pg 36 | 84121024 | Silver | Pg 36 | 22 – 32 | 35 | 8 | 40 / | 10 | |||
| WKM-Pg 42 | 84121026 | Silver | Pg 42 | 32 – 38 | 37 | 9 | 57 / | 5 | No stock goods, delivery time and minimum order quantities upon request | ||
| WKM-Pg 48 | 84121028 | Silver | Pg 48 | 37 – 44 | 38 | 10 | 64 / | 5 | |||
Pg version with extended thread | |||||||||||
| WKM/L-Pg 07 | 84121210 | Silver | Pg 07 | 3 – 6.5 | 19 | 10 | 14 / | 50 | |||
| WKM/L-Pg 09 | 84121212 | Silver | Pg 09 | 4 – 8 | 20 | 10 | 17 / | 50 | |||
| WKM/L-Pg 11 | 84121214 | Silver | Pg 11 | 5 – 10 | 21 | 10 | 20 / | 50 | |||
| WKM/L-Pg 13.5 | 84121216 | Silver | Pg 13.5 | 6 – 12 | 22 | 10 | 22 / | 50 | |||
| WKM/L-Pg 16 | 84121218 | Silver | Pg 16 | 10 – 14 | 23 | 10 | 24 / | 50 | |||
| WKM/L-Pg 21 | 84121220 | Silver | Pg 21 | 13 – 18 | 25 | 12 | 30 / | 25 | No stock goods, delivery time and minimum order quantities upon request | ||
| WKM/L-Pg 29 | 84121222 | Silver | Pg 29 | 18 – 25 | 29 | 12 | 40 / | 25 | No stock goods, delivery time and minimum order quantities upon request | ||
| WKM/L-Pg 36 | 84121224 | Silver | Pg 36 | 22 – 32 | 35 | 15 | 40 / | 10 | No stock goods, delivery time and minimum order quantities upon request | ||
| WKM/L-Pg 42 | 84121226 | Silver | Pg 42 | 32 – 38 | 37 | 15 | 57 / | 5 | |||
| WKM/L-Pg 48 | 84121228 | Silver | Pg 48 | 37 – 44 | 38 | 15 | 64 / | 5 | No stock goods, delivery time and minimum order quantities upon request | ||
NPT thread | |||||||||||
| WKM-NPT 3/8" | 84122212 | Silver | 3/8" | 2 – 6 | 21 | 15 | 17 / 19 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| WKM-NPT 3/8" | 84122210 | Silver | 3/8" | 4 – 8 | 21 | 15 | 17 / 19 | 50 | |||
| WKM-NPT 1/2" | 84122216 | Silver | 1/2" | 5 – 9 | 24 | 13 | 22 / 24 | 50 | |||
| WKM-NPT 1/2" | 84122214 | Silver | 1/2" | 6 – 12 | 24 | 13 | 22 / 24 | 50 | |||
| WKM-NPT 3/4" | 84122220 | Silver | 3/4" | 9 – 16 | 25 | 13 | 30 / | 25 | |||
| WKM-NPT 3/4" | 84122218 | Silver | 3/4" | 13 – 18 | 25 | 13 | 30 / | 25 | |||
