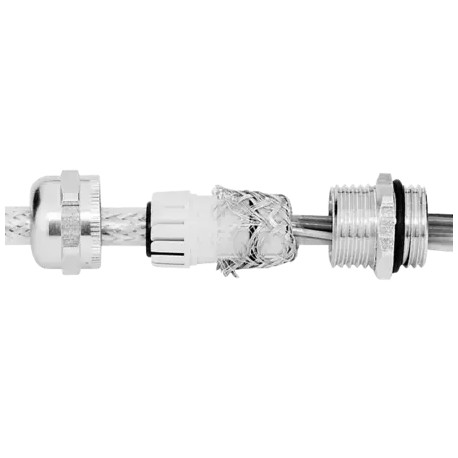

84122014 MURRPLASTIK Conduits and fitting systems Type WKM-EMV (metal versions) Pg / EMC design
84122014
MURRPLASTIK
50
Conduits and fitting systems Type WKM-EMV (metal versions) Pg / EMC design
WKM/EMV PG 11 KV, metal
Type WKM-EMV (metal versions)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

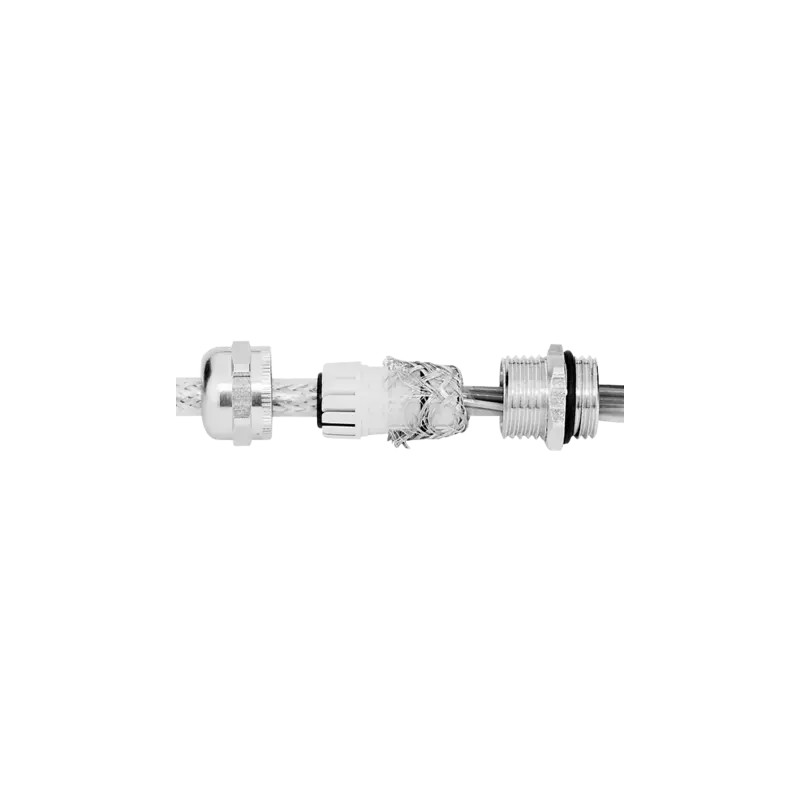

▲The WKM/EMV cable fittings are made of nickel-plated brass and specially modified polyamide, and the seals of NBR. The materials are halogen, phosphor and cadmium-free. Shielded cables can be connected to earth potential using this cable fitting. The cable's braiding makes contact with the metal body, discharge the sheath currents.
The WKM/EMV cable fittings feature the following advantages:
Large clamping range
Very high protection class
Easy to assemble
Simple contacting
Type OR O-ring included in delivery
Halogen-free
-40°C – 100°C, short term 120°C
acc. to UL94 V0
IP 68
EU railway approval
CSA approval
CULUS approval
CURUS approval
VDE approval
| Type | Order No. | Colour | Connecting thread | Clamping range (LW) mm | EH mm | GL mm | SW 1 / 2 mm | MOQ qty. | Fussnote Variante 2 (unter Var) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Metric / EMC design | |||||||||||
| WKM/EMV M12x1,5 | 84125210 | Silver | M12x1,5 | 3 – 6.5 | 19 | 5 | 14 / 14 | 50 | |||
| WKM/EMV M16x1,5 | 84125212 | Silver | M16x1,5 | 6 – 10 | 22 | 6 | 20 / 20 | 50 | |||
| WKM/EMV M20x1,5 | 84125214 | Silver | M20x1,5 | 10 – 14 | 23 | 6 | 24 / 24 | 50 | |||
| WKM/EMV M25x1,5 | 84125216 | Silver | M25x1,5 | 14 – 18 | 24 | 7 | 30 / 30 | 25 | |||
| WKM/EMV M32x1,5 | 84125218 | Silver | M32x1,5 | 20 – 25 | 31 | 8 | 40 / 40 | 25 | |||
| WKM/EMV M40x1,5 | 84125220 | Silver | M40x1,5 | 22 – 32 | 37 | 8 | 50 / 50 | 10 | |||
| WKM/EMV M50x1,5 | 84125222 | Silver | M50x1,5 | 32 – 38 | 37 | 9 | 57 / | 5 | |||
| WKM/EMV M63x1,5 | 84125224 | Silver | M63x1,5 | 37 – 44 | 38 | 10 | 64 / 68 | 5 | No stock goods, delivery time and minimum order quantities upon request | ||
Pg / EMC design | |||||||||||
| WKM/EMV Pg 07 | 84122010 | Silver | Pg 07 | 3 – 6.5 | 19 | 5 | 14 / 14 | 50 | |||
| WKM/EMV Pg 09 | 84122012 | Silver | Pg 09 | 4 – 8 | 21 | 6 | 17 / 17 | 50 | |||
| WKM/EMV Pg 11 | 84122014 | Silver | Pg 11 | 6 – 10 | 22 | 6 | 20 / 20 | 50 | |||
| WKM/EMV Pg 13.5 | 84122016 | Silver | Pg 13.5 | 6 – 12 | 24 | 6.5 | 22 / 22 | 50 | |||
| WKM/EMV Pg 16 | 84122018 | Silver | Pg 16 | 10 – 14 | 23 | 6.5 | 24 / 24 | 50 | |||
| WKM/EMV Pg 21 | 84122020 | Silver | Pg 21 | 14 – 18 | 24 | 7 | 30 / 30 | 25 | |||
| WKM/EMV Pg 29 | 84122022 | Silver | Pg 29 | 20 – 25 | 29 | 8 | 40 / 40 | 25 | |||
| WKM/EMV Pg 36 | 84122024 | Silver | Pg 36 | 22 – 32 | 35 | 8 | 50 / 50 | 10 | No stock goods, delivery time and minimum order quantities upon request | ||
| WKM/EMV Pg 42 | 84122026 | Silver | Pg 42 | 32 – 38 | 37 | 9 | 57 / 57 | 5 | No stock goods, delivery time and minimum order quantities upon request | ||
| WKM/EMV Pg 48 | 84122028 | Silver | Pg 48 | 37 – 44 | 38 | 10 | 64 / 64 | 5 | No stock goods, delivery time and minimum order quantities upon request | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 84122014 84122014 EN_84125218.pdf | 1 Mbytes |
|
