84121820 MURRPLASTIK Conduits and fitting systems Type MWKM (metal version with multi-insert)
84121820
MURRPLASTIK
50
Conduits and fitting systems Type MWKM (metal version with multi-insert)
MWKM PG 13,5 2X5 KV, metal
Type MWKM (metal version with multi-insert)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

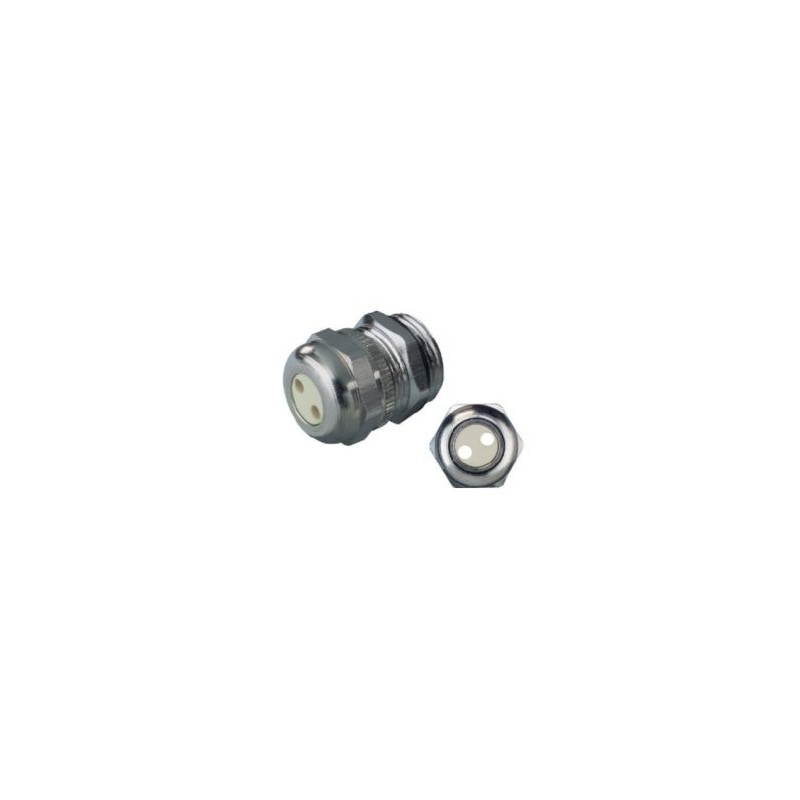

▲The MWKM is a metal cable fitting made of nickel-plated brass, specially modified polyamide and an additional multi-insert that makes it possible to run multiple cables through a cable fitting.
The MWKM cable fittings feature the following advantages:
Integrated multi-insert
High tightness
Easy to assemble
Type OR O-ring included in delivery
-40°C – 100°C, short term 120°C
IP 65IP 68
CSA approval
CURUS approval
| Type | Order No. | Colour | Connecting thread | EH mm | GL mm | SW 1 / 2 mm | MOQ qty. | Fussnote Variante 2 (unter Var) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MWKM-Pg 09-2x3 | 84121810 | Silver | Pg 09 | 21 | 6 | 17 / 17 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 09-4x1.4 | 84121812 | Silver | Pg 09 | 21 | 6 | 17 / 17 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 11-2x3 | 84121814 | Silver | Pg 11 | 22 | 6 | 20 / 20 | 50 | |||
| MWKM-Pg 11-2x4 | 84121816 | Silver | Pg 11 | 22 | 6 | 20 / 20 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 11-3x3 | 84121818 | Silver | Pg 11 | 22 | 6 | 20 / 20 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 13.5-2x5 | 84121820 | Silver | Pg 13.5 | 24 | 6.5 | 22 / 22 | 50 | |||
| MWKM-Pg 13.5-3x2 | 84121822 | Silver | Pg 13.5 | 24 | 6.5 | 22 / 22 | 50 | |||
| MWKM-Pg 13.5-3x4 | 84121824 | Silver | Pg 13.5 | 24 | 6.5 | 22 / 22 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 13.5-6x3 | 84121826 | Silver | Pg 13.5 | 22 | 6.5 | 22 / 22 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 16-2x6 | 84121828 | Silver | Pg 16 | 23 | 6.5 | 24 / 24 | 50 | |||
| MWKM-Pg 16-3x3 | 84121830 | Silver | Pg 16 | 23 | 6.5 | 24 / 24 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 16-3x4 | 84121832 | Silver | Pg 16 | 23 | 6.5 | 24 / 24 | 50 | |||
| MWKM-Pg 16-3x6 | 84121834 | Silver | Pg 16 | 23 | 6.5 | 24 / 24 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 16-4x4 | 84121836 | Silver | Pg 16 | 23 | 6.5 | 24 / 24 | 50 | |||
| MWKM-Pg 16-5x4 | 84121838 | Silver | Pg 16 | 23 | 6.5 | 24 / 24 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 16-6x4 | 84121840 | Silver | Pg 16 | 23 | 6.5 | 24 / 24 | 50 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 21-2x8 | 84121842 | Silver | Pg 21 | 24 | 7 | 30 / 30 | 25 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 21-3x7 | 84121844 | Silver | Pg 21 | 24 | 7 | 30 / 30 | 25 | No stock goods, delivery time and minimum order quantities upon request | ||
| MWKM-Pg 21-4x6 | 84121846 | Silver | Pg 21 | 24 | 7 | 30 / 30 | 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 84121820 84121820 EN_84121816.pdf | 726 Kbytes |
|
