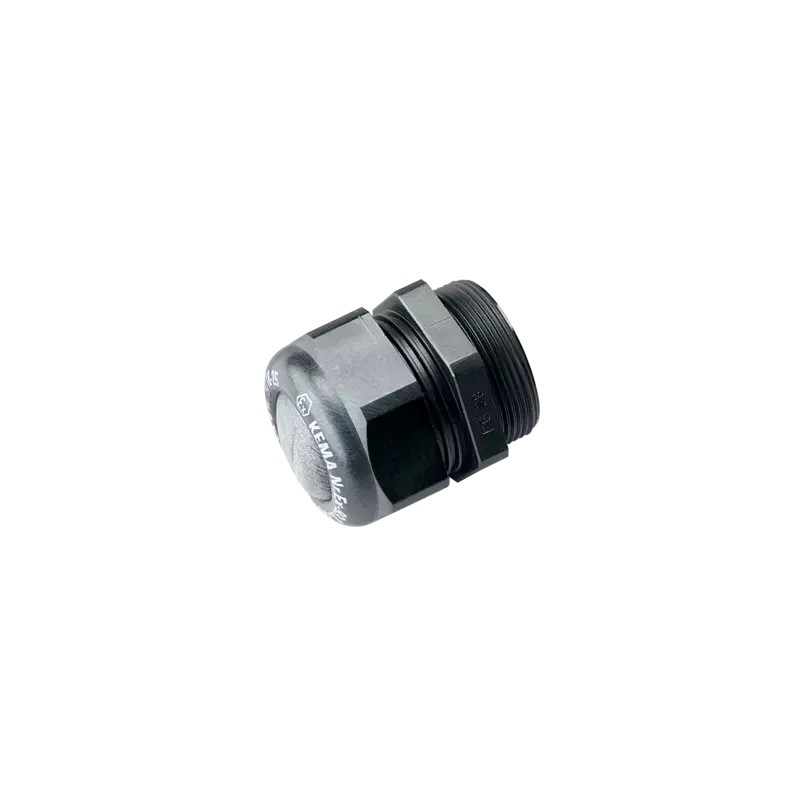

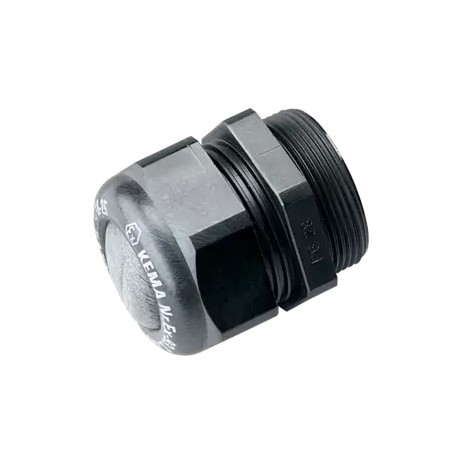

84101362 MURRPLASTIK Conduits and fitting systems Type WKK/Ex (plastic version)
84101362
MURRPLASTIK
50
Conduits and fitting systems Type WKK/Ex (plastic version)
WKK/EX M25x1,5 13-18, sw
Type WKK/Ex (plastic version)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The WKK-Ex cable fittings are made of specially modified polyamide and the form seals of NBR. The materials are halogen, phosphor and cadmium-free.
The WKK-Ex cable fittings feature the following advantages:
Easy to assemble
Approved for areas at risk of explosion
Large clamping range
Halogen-free
UV-resistant
-20°C – 85°C
acc. to UL94 V0
IP 68
EX-approval
| Type | Order No. | Colour | Connecting thread | Clamping range (LW) mm | EH mm | GL mm | SW 1 / 2 mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| WKK/EX M12x1,5 3-6,5 | 84101352 | Black | M12x1,5 | 3 – 6.5 | 15 | 15 | 15 / | 50 | ||
| WKK/EX M16x1,5 4-8 | 84101354 | Black | M16x1,5 | 4 – 8 | 22 | 15 | 19 / | 50 | ||
| WKK/EX M16x1,5 5-10 | 84101356 | Black | M16x1,5 | 5 – 10 | 25 | 15 | 22 / | 50 | ||
| WKK/EX M20x1,5 6-12 | 84101358 | Black | M20x1,5 | 6 – 12 | 27 | 15 | 24 / | 50 | ||
| WKK/EX M20x1,5 10-14 | 84101360 | Black | M20x1,5 | 10 – 14 | 28 | 15 | 27 / | 50 | ||
| WKK/EX M25x1,5 13-18 | 84101362 | Black | M25x1,5 | 13 – 18 | 31 | 15 | 33 / | 50 | ||
| WKK/EX M32x1,5 18-25 | 84101364 | Black | M32x1,5 | 18 – 25 | 39 | 15 | 42 / | 25 | ||
| WKK/EX M40x1,5 22-32 | 84101366 | Black | M40x1,5 | 22 – 32 | 48 | 18 | 53 / | 10 | ||
| WKK/EX M50x1,5 32-38 | 84101368 | Black | M50x1,5 | 32 – 38 | 49 | 18 | 60 / | 5 | ||
| WKK/EX M63x1,5 37-44 | 84101370 | Black | M63x1,5 | 37 – 44 | 49 | 18 | 65 / 68 | 5 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 84101362 84101362 EN_84101352.pdf | 979 Kbytes |
|
