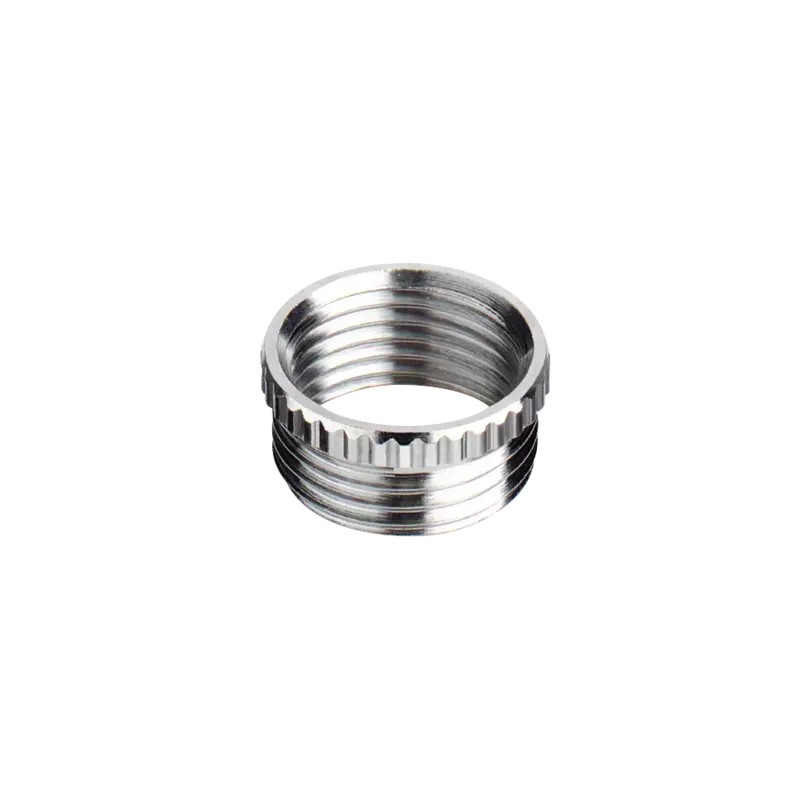

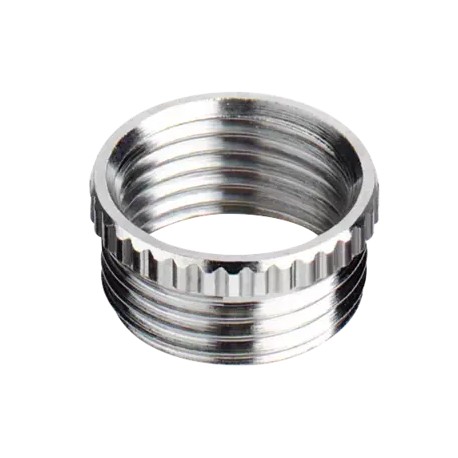

83727620 MURRPLASTIK Conduits and fitting systems Type RR (metal reducing bush) Metric / metric version (wit..
83727620
MURRPLASTIK
100
Conduits and fitting systems Type RR (metal reducing bush) Metric / metric version (without O-ring)
RR M32/M20 Reductor de rosca de metal
Type RR (metal reducing bush)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The type RR thread reducing bush is made of brass with nickel plating. It is available with metric or Pg thread and depending on the type, as a knurled or hexagon version.
The following versions of the thread reducing bush are available:
Metric/metric
Metric/Pg
Pg/Pg
| Type | Order No. | Colour | AG | IG | EH mm | GL mm | Ø mm | MOQ qty. | SW 1 mm | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Metric / metric version (without O-ring) | |||||||||||
| RR-M16/M12 | 83727610 | Silver | M16x1,5 | M12x1,5 | 2.5 | 6 | 18 | 100 | |||
| RR-M20/M12 | 83727612 | Silver | M20x1,5 | M12x1,5 | 2.5 | 6.5 | 22 | 100 | |||
| RR-M20/M16 | 83727614 | Silver | M20x1,5 | M16x1,5 | 2.5 | 6.5 | 22 | 100 | |||
| RR-M25/M16 | 83727616 | Silver | M25x1,5 | M16x1,5 | 3 | 7 | 27 | 100 | |||
| RR-M25/M20 | 83727618 | Silver | M25x1,5 | M20x1,5 | 3 | 7 | 27 | 100 | |||
| RR-M32/M20 | 83727620 | Silver | M32x1,5 | M20x1,5 | 3.5 | 8 | 34 | 50 | |||
| RR-M32/M25 | 83727622 | Silver | M32x1,5 | M25x1,5 | 3.5 | 8 | 34 | 50 | |||
| RR-M40/M25 | 83727624 | Silver | M40x1,5 | M25x1,5 | 3.5 | 9 | 43 | 25 | |||
| RR-M40/M32 | 83727626 | Silver | M40x1,5 | M32x1,5 | 3.5 | 9 | 43 | 25 | |||
| RR-M50/M32 | 83727628 | Silver | M50x1,5 | M32x1,5 | 4 | 10 | 53 | 25 | |||
| RR-M50/M40 | 83727630 | Silver | M50x1,5 | M40x1,5 | 4 | 10 | 53 | 10 | |||
| RR-M63/M40 | 83727632 | Silver | M63x1,5 | M40x1,5 | 4 | 10 | 66 | 10 | |||
| RR-M63/M50 | 83727634 | Silver | M63x1,5 | M50x1,5 | 4 | 10 | 66 | 10 | |||
Metric / Pg version (with O-ring on external thread) | |||||||||||
| RR-M16/Pg7 | 83727810 | Silver | M16x1,5 | Pg 07 | 3 | 5 | 100 | 17 | |||
| RR-M20/Pg9 | 83727812 | Silver | M20x1,5 | Pg 09 | 3 | 6 | 100 | 22 | |||
| RR-M25/Pg9 | 83727814 | Silver | M25x1,5 | Pg 09 | 3 | 7 | 100 | 27 | |||
| RR-M25/Pg11 | 83727816 | Silver | M25x1,5 | Pg 11 | 3 | 7 | 100 | 27 | |||
| RR-M25/Pg13,5 | 83727818 | Silver | M25x1,5 | Pg 13.5 | 3 | 7 | 100 | 27 | |||
| RR-M32/Pg13,5 | 83727820 | Silver | M32x1,5 | Pg 13.5 | 3 | 8 | 50 | 34 | |||
| RR-M32/Pg16 | 83727822 | Silver | M32x1,5 | Pg 16 | 3 | 8 | 50 | 34 | |||
| RR-M32/Pg21 | 83727824 | Silver | M32x1,5 | Pg 21 | 3 | 8 | 50 | 34 | |||
| RR-M40/Pg16 | 83727826 | Silver | M40x1,5 | Pg 16 | 4 | 8 | 25 | 43 | |||
| RR-M40/Pg21 | 83727828 | Silver | M40x1,5 | Pg 21 | 4 | 8 | 25 | 43 | |||
| RR-M40/Pg29 | 83727830 | Silver | M40x1,5 | Pg 29 | 4 | 8 | 25 | 43 | |||
| RR-M50/Pg21 | 83727832 | Silver | M50x1,5 | Pg 21 | 4 | 9 | 25 | 55 | |||
| RR-M50/Pg29 | 83727834 | Silver | M50x1,5 | Pg 29 | 4 | 9 | 10 | 55 | |||
| RR-M50/Pg36 | 83727836 | Silver | M50x1,5 | Pg 36 | 4 | 9 | 10 | 55 | |||
| RR-M63/Pg29 | 83727838 | Silver | M63x1,5 | Pg 29 | 4 | 10 | 10 | 65 | |||
| RR-M63/Pg36 | 83727840 | Silver | M63x1,5 | Pg 36 | 4 | 10 | 10 | 65 | |||
| RR-M63/Pg42 | 83727842 | Silver | M63x1,5 | Pg 42 | 4 | 10 | 10 | 65 | |||
Pg / Pg version (without O-ring) | |||||||||||
| RR-Pg 09/07 | 83722610 | Silver | Pg 09 | Pg 07 | 2.5 | 6 | 17 | 100 | |||
| RR-Pg 11/07 | 83722612 | Silver | Pg 11 | Pg 07 | 2.5 | 6 | 20 | 100 | |||
| RR-Pg 11/09 | 83722614 | Silver | Pg 11 | Pg 09 | 2.5 | 6 | 20 | 100 | |||
| RR-Pg 13.5/09 | 83722616 | Silver | Pg 13.5 | Pg 09 | 2.5 | 6.5 | 22 | 100 | |||
| RR-Pg 13.5/11 | 83722618 | Silver | Pg 13.5 | Pg 11 | 2.5 | 6.5 | 22 | 100 | |||
| RR-Pg 16/09 | 83722620 | Silver | Pg 16 | Pg 09 | 3 | 6.5 | 24 | 100 | |||
| RR-Pg 16/11 | 83722622 | Silver | Pg 16 | Pg 11 | 3 | 6.5 | 24 | 100 | |||
| RR-Pg 16/13.5 | 83722624 | Silver | Pg 16 | Pg 13.5 | 3 | 6.5 | 24 | 100 | |||
| RR-Pg 21/11 | 83722626 | Silver | Pg 21 | Pg 11 | 3 | 7 | 30 | 50 | |||
| RR-Pg 21/13.5 | 83722628 | Silver | Pg 21 | Pg 13.5 | 3 | 7 | 30 | 50 | |||
| RR-Pg 21/16 | 83722630 | Silver | Pg 21 | Pg 16 | 3 | 7 | 30 | 50 | |||
| RR-Pg 29/21 | 83722632 | Silver | Pg 29 | Pg 21 | 3.5 | 8 | 39 | 25 | |||
| RR-Pg 36/29 | 83722634 | Silver | Pg 36 | Pg 29 | 3.5 | 9 | 50 | 25 | |||
| RR-Pg 42/36 | 83722636 | Silver | Pg 42 | Pg 36 | 4 | 10 | 57 | 25 | |||
| RR-Pg 48/36 | 83722638 | Silver | Pg 48 | Pg 36 | 4 | 10 | 64 | 25 | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83727620 83727620 EN_83727614.pdf | 462 Kbytes |
|
