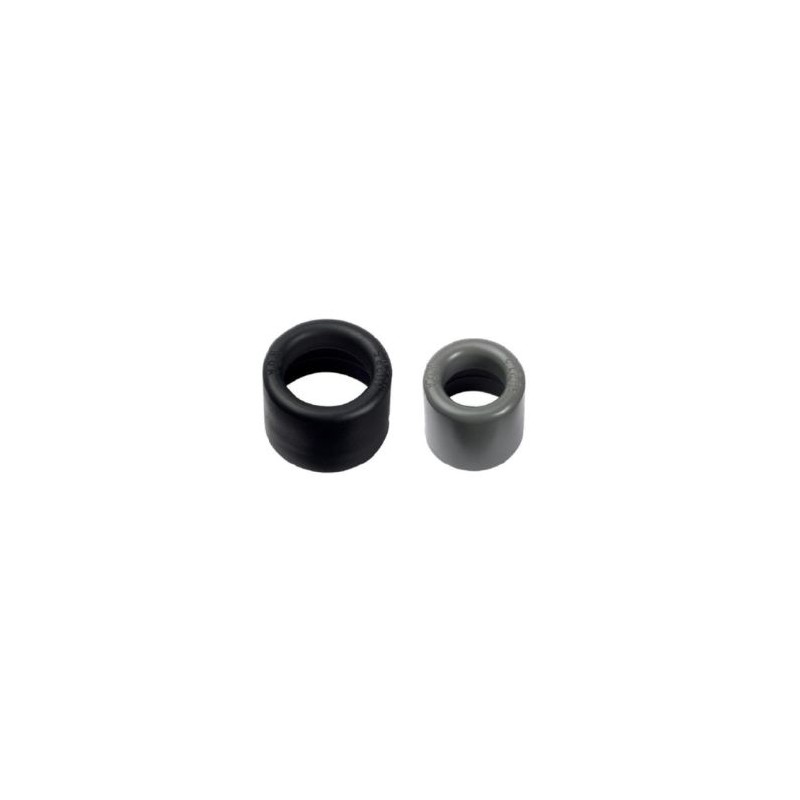

83723558 MURRPLASTIK Conduits and fitting systems End cap
83723558
MURRPLASTIK
25
Conduits and fitting systems End cap
EK-M25/P21, sw
End cap
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The type EK end cap is made of specially modified polyamide and mounted on the ends of the cable protection conduits. The end cap is designed as an edge protector so that exiting cables cannot be damaged and the visual effect of the installation is improved.
-40°C – 115°C, short term 150°C
acc. to UL94 V2
| Type | Order No. | Colour | Suitable for Murrflex | A mm | I mm | L mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| EK-M10/P7 | 83723550 | Black | M10/P7 | 14 | 7.41 | 18 | 50 | ||
| EK-M12/P9 | 83723552 | Black | M12/P9 | 15.35 | 7.8 | 21 | 50 | ||
| EK-M16/P11 | 83723554 | Black | M16/P11(S) | 18.3 | 10.3 | 21 | 50 | ||
| EK-M18/P13 | 83723555 | Black | M18/P13 | 20.8 | 12.5 | 21 | 50 | ||
| EK-M20/P16 | 83723556 | Black | M20/P16(S) | 23.5 | 14.3 | 21 | 50 | ||
| EK-M25/P21 | 83723558 | Black | M25/P21(S) | 30.86 | 20.8 | 22 | 25 | ||
| EK-M32/P29 | 83723560 | Black | M32/P29(S) | 36.7 | 25.6 | 25 | 25 | ||
| EK-M40/P36 | 83723562 | Black | M40/P36(S) | 44.5 | 33 | 25 | 25 | ||
| EK-M50/P48 | 83723564 | Black | M50/P48(S) | 57 | 45.8 | 25 | 10 | ||
| EK-56 | 83723566 | Black | NW56 | 71 | 55.8 | 35 | 10 | ||
| EK-70 | 83723568 | Black | NW70 | 83 | 64 | 35 | 10 | ||
| EK-80 | 83723570 | Black | NW80 | 96 | 76.8 | 35 | 10 | ||
| EK-95 | 83723572 | Black | NW95 | 105.6 | 87 | 35 | 10 | ||
| EK-M10/P7 | 83723510 | Grey | M10/P7 | 14 | 7.41 | 18 | 50 | ||
| EK-M12/P9 | 83723512 | Grey | M12/P9 | 15.35 | 7.8 | 21 | 50 | ||
| EK-M16/P11 | 83723514 | Grey | M16/P11(S) | 18.3 | 10.3 | 21 | 50 | ||
| EK-M18/P13 | 83723515 | Grey | M18/P13 | 20.8 | 12.5 | 21 | 50 | ||
| EK-M20/P16 | 83723516 | Grey | M20/P16(S) | 23.2 | 14.3 | 21 | 50 | ||
| EK-M25/P21 | 83723518 | Grey | M25/P21(S) | 30.86 | 20.8 | 22 | 25 | ||
| EK-M32/P29 | 83723520 | Grey | M32/P29(S) | 36.5 | 25.8 | 22 | 25 | ||
| EK-M40/P36 | 83723522 | Grey | M40/P36(S) | 44.5 | 33.8 | 25 | 25 | ||
| EK-M50/P48 | 83723524 | Grey | M50/P48(S) | 57 | 45.8 | 25 | 10 | ||
| EK-56 | 83723526 | Grey | NW56 | 71 | 55.8 | 35 | 10 | ||
| EK-70 | 83723528 | Grey | NW70 | 83 | 64 | 35 | 10 | ||
| EK-80 | 83723530 | Grey | NW80 | 96 | 76.8 | 35 | 10 | ||
| EK-95 | 83723532 | Grey | NW95 | 105.6 | 87 | 35 | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83723558 83723558 EN_83723552.pdf | 608 Kbytes |
|
