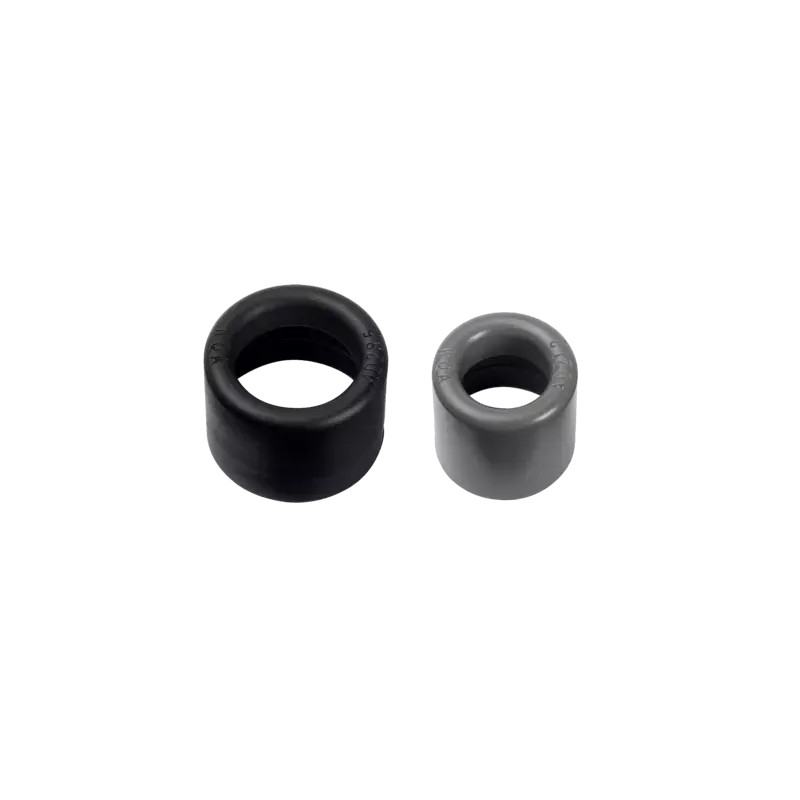

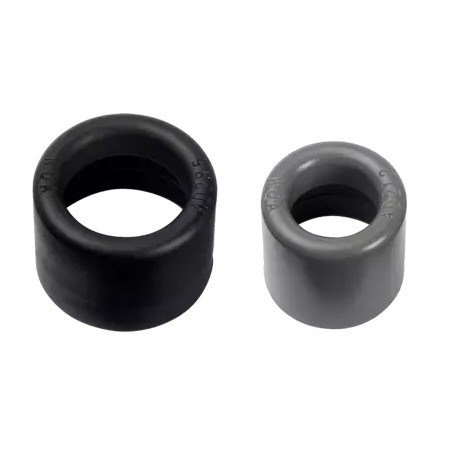

83723555 MURRPLASTIK Conduits and fitting systems End cap
Reference: 83723555
Manufacturer: MURRPLASTIK
Description:
Conduits and fitting systems End cap
EK-M18/P13, sw
End cap
Categories:
- MURRPLASTIK > Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
- More Info
- Reviews
MORE INFO
The type EK end cap is made of specially modified polyamide and mounted on the ends of the cable protection conduits. The end cap is designed as an edge protector so that exiting cables cannot be damaged and the visual effect of the installation is improved.
-40°C – 115°C, short term 150°C
acc. to UL94 V2
| Type | Order No. | Colour | Suitable for Murrflex | A mm | I mm | L mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| EK-M10/P7 | 83723550 | Black | M10/P7 | 14 | 7.41 | 18 | 50 | ||
| EK-M12/P9 | 83723552 | Black | M12/P9 | 15.35 | 7.8 | 21 | 50 | ||
| EK-M16/P11 | 83723554 | Black | M16/P11(S) | 18.3 | 10.3 | 21 | 50 | ||
| EK-M18/P13 | 83723555 | Black | M18/P13 | 20.8 | 12.5 | 21 | 50 | ||
| EK-M20/P16 | 83723556 | Black | M20/P16(S) | 23.5 | 14.3 | 21 | 50 | ||
| EK-M25/P21 | 83723558 | Black | M25/P21(S) | 30.86 | 20.8 | 22 | 25 | ||
| EK-M32/P29 | 83723560 | Black | M32/P29(S) | 36.7 | 25.6 | 25 | 25 | ||
| EK-M40/P36 | 83723562 | Black | M40/P36(S) | 44.5 | 33 | 25 | 25 | ||
| EK-M50/P48 | 83723564 | Black | M50/P48(S) | 57 | 45.8 | 25 | 10 | ||
| EK-56 | 83723566 | Black | NW56 | 71 | 55.8 | 35 | 10 | ||
| EK-70 | 83723568 | Black | NW70 | 83 | 64 | 35 | 10 | ||
| EK-80 | 83723570 | Black | NW80 | 96 | 76.8 | 35 | 10 | ||
| EK-95 | 83723572 | Black | NW95 | 105.6 | 87 | 35 | 10 | ||
| EK-M10/P7 | 83723510 | Grey | M10/P7 | 14 | 7.41 | 18 | 50 | ||
| EK-M12/P9 | 83723512 | Grey | M12/P9 | 15.35 | 7.8 | 21 | 50 | ||
| EK-M16/P11 | 83723514 | Grey | M16/P11(S) | 18.3 | 10.3 | 21 | 50 | ||
| EK-M18/P13 | 83723515 | Grey | M18/P13 | 20.8 | 12.5 | 21 | 50 | ||
| EK-M20/P16 | 83723516 | Grey | M20/P16(S) | 23.2 | 14.3 | 21 | 50 | ||
| EK-M25/P21 | 83723518 | Grey | M25/P21(S) | 30.86 | 20.8 | 22 | 25 | ||
| EK-M32/P29 | 83723520 | Grey | M32/P29(S) | 36.5 | 25.8 | 22 | 25 | ||
| EK-M40/P36 | 83723522 | Grey | M40/P36(S) | 44.5 | 33.8 | 25 | 25 | ||
| EK-M50/P48 | 83723524 | Grey | M50/P48(S) | 57 | 45.8 | 25 | 10 | ||
| EK-56 | 83723526 | Grey | NW56 | 71 | 55.8 | 35 | 10 | ||
| EK-70 | 83723528 | Grey | NW70 | 83 | 64 | 35 | 10 | ||
| EK-80 | 83723530 | Grey | NW80 | 96 | 76.8 | 35 | 10 | ||
| EK-95 | 83723532 | Grey | NW95 | 105.6 | 87 | 35 | 10 |
