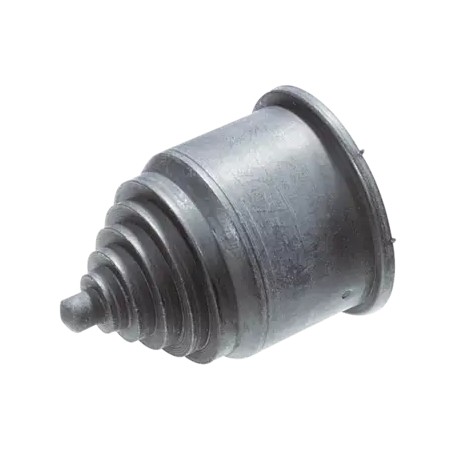

83723480 MURRPLASTIK Conduits and fitting systems Type ET-EN (end grommet)
83723480
MURRPLASTIK
50
Conduits and fitting systems Type ET-EN (end grommet)
ET-EN P07 Tapón de cierre, sw
Type ET-EN (end grommet)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

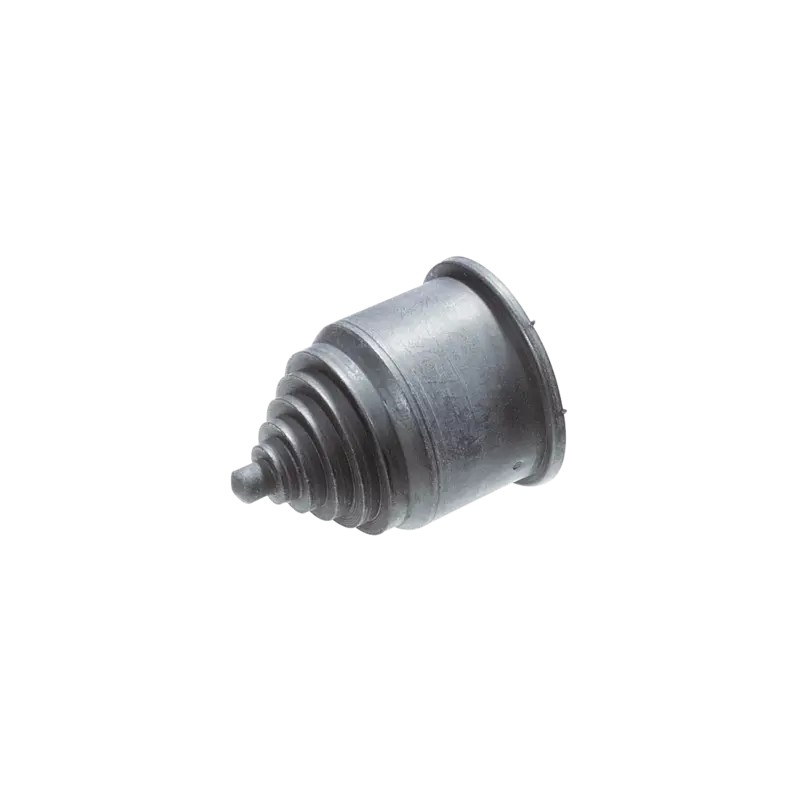

▲The type ET end grommet is made of TPE and is used, for example, to close off the open end of a protective conduit, or as centring device for exiting cables.
The end grommet features the following advantages:
Opening of end grommet variable (depending on the cable diameter used)
Easy assembly
Fixing of end grommet to the cable protection conduit using ribs running round the inside
Approved for railway technology (EN 45545-2)
Halogen-free
-40°C – 100°C, short term 120°C
acc. to UL94 V0
IP 67
EU railway approval
| Type | Order No. | Colour | A mm | I mm | L mm | Cable Ø mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| ET-EN P07 end grommet, sw | 83723480 | Black | 13 | 10 | 29 | 1 8 | 50 | ||
| ET-EN P09 end grommet, sw | 83723482 | Black | 16 | 13 | 32.5 | 1 10 | 50 | ||
| ET-EN P11 end grommet, sw | 83723484 | Black | 19 | 15.8 | 36.5 | 4 12 | 50 | ||
| ET-EN P16 end grommet, sw | 83723486 | Black | 25 | 21.2 | 37.5 | 6 16.5 | 50 | ||
| ET-EN P21 end grommet, sw | 83723488 | Black | 32 | 28.5 | 40.2 | 6 23 | 25 | ||
| ET-EN P36 end grommet, sw | 83723492 | Black | 46 | 42.5 | 46 | 10 37 | 25 | ||
| ET-EN P48 end grommet, sw | 83723494 | Black | 59 | 54.5 | 52 | 10 47 | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83723480 83723480 EN_83723480.pdf | 873 Kbytes |
|
