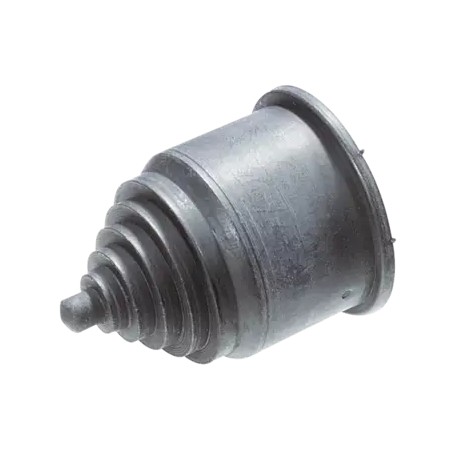

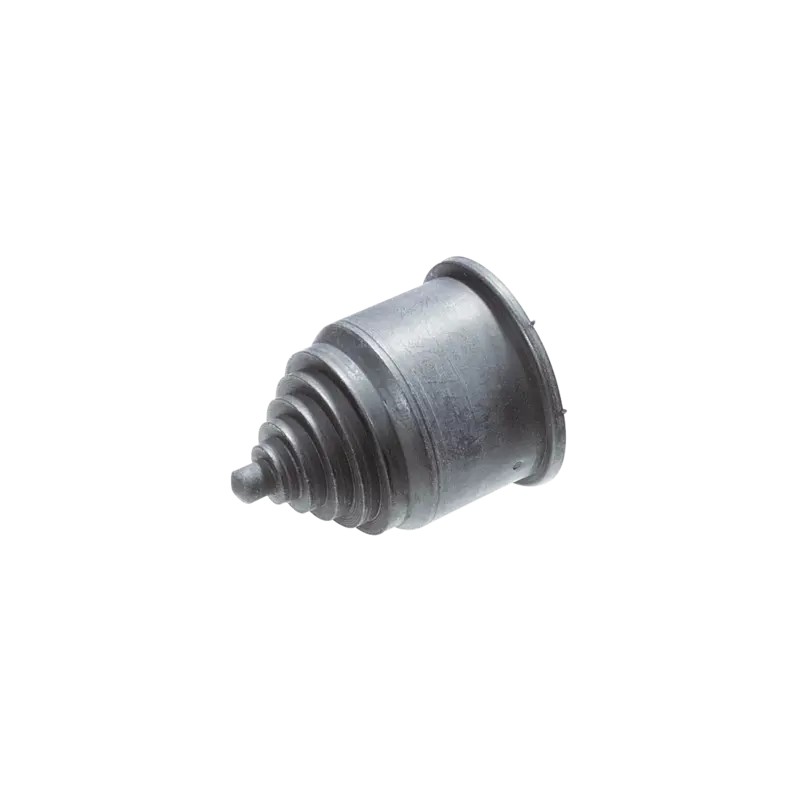

83723464 MURRPLASTIK Conduits and fitting systems Type ET (end grommet)
83723464
MURRPLASTIK
10
Conduits and fitting systems Type ET (end grommet)
ET P48 Tapón de cierre, sw
Type ET (end grommet)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The type ET end grommet is made of TPE and is used, for example, to close off the open end of a protective conduit, or as centring device for exiting cables.
The end grommet features the following advantages:
Opening of end grommet variable (depending on the cable diameter used)
Easy assembly
Fixing of end grommet to the cable protection conduit using ribs running round the inside
Halogen-free
-40°C – 100°C, short term 120°C
acc. to UL94 HB
IP 67
| Type | Order No. | Colour | Suitable for Murrflex | A mm | I mm | L mm | Cable Ø mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ET 07 | 83723450 | Black | Pg06 ; M10/P7 | 13 | 10 | 29 | 1 8 | 50 | ||
| ET 09 | 83723452 | Black | M12/P9 | 16 | 13 | 32.5 | 1 10 | 50 | ||
| ET 11 | 83723454 | Black | M16/P11(S) | 19 | 15.8 | 36.5 | 4 12 | 50 | ||
| ET 16 | 83723456 | Black | M20/P16(S) | 25 | 21.2 | 37.5 | 6 16.5 | 50 | ||
| ET 21 | 83723458 | Black | M25/P21(S) | 32 | 28.5 | 40.2 | 6 23 | 25 | ||
| ET 29 | 83723460 | Black | M32/P29(S) | 39 | 34.5 | 44.2 | 6 29 | 25 | ||
| ET 36 | 83723462 | Black | M40/P36(S) | 46 | 42.5 | 46 | 10 37 | 25 | ||
| ET 48 | 83723464 | Black | M50/P48(S) | 59 | 54.5 | 52 | 10 47 | 10 | ||
| ET 07 | 83723410 | Grey | Pg06 ; M10/P7 | 13 | 10 | 29 | 1 8 | 50 | ||
| ET 09 | 83723412 | Grey | M12/P9 | 16 | 13 | 32.5 | 1 10 | 50 | ||
| ET 11 | 83723414 | Grey | M16/P11(S) | 19 | 15.8 | 36.5 | 4 12 | 50 | ||
| ET 16 | 83723416 | Grey | M20/P16(S) | 25 | 21.2 | 37.5 | 6 16.5 | 50 | ||
| ET 21 | 83723418 | Grey | M25/P21(S) | 32 | 28.5 | 40.2 | 6 23 | 25 | ||
| ET 29 | 83723420 | Grey | M32/P29(S) | 39 | 34.5 | 44.2 | 6 29 | 25 | ||
| ET 36 | 83723422 | Grey | M40/P36(S) | 46 | 42.5 | 46 | 10 37 | 25 | ||
| ET 48 | 83723424 | Grey | M50/P48(S) | 59 | 54.5 | 52 | 10 47 | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83723464 83723464 EN_83723422.pdf | 793 Kbytes |
|
