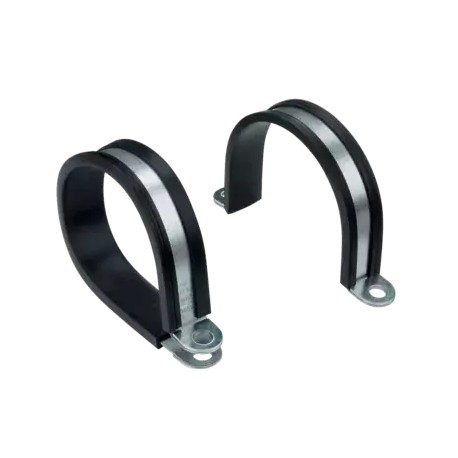

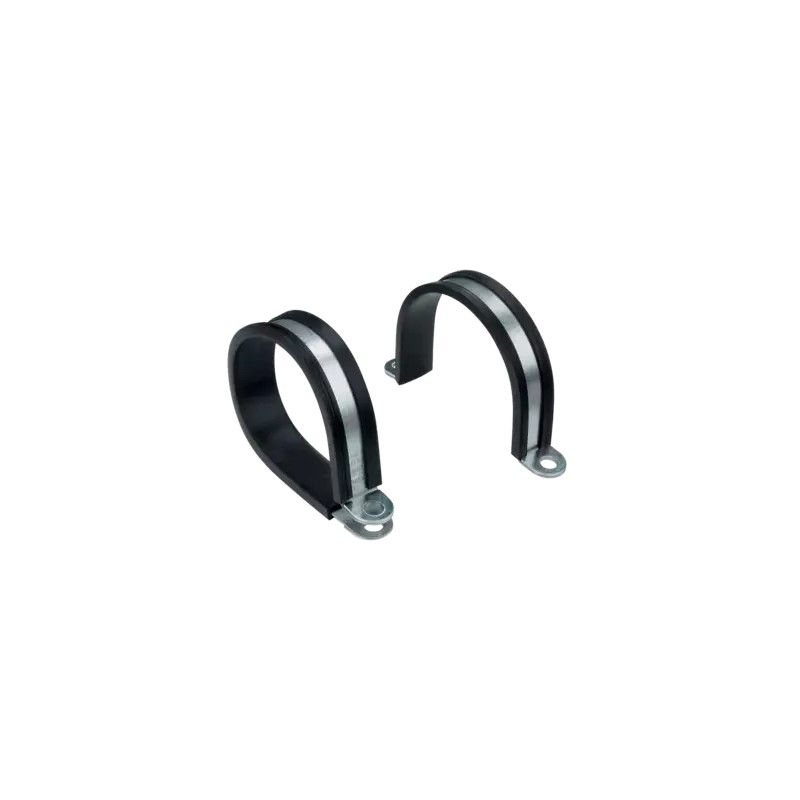

83723213 MURRPLASTIK Conduits and fitting systems Type SSG (conduit clamp)
83723213
MURRPLASTIK
25
Conduits and fitting systems Type SSG (conduit clamp)
SSG 7/M6 para EW-07 Abrazadera
Type SSG (conduit clamp)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The hose clamp type SSG is made of sheet steel. The surface is galvanized and partially coated with a halogen-free elastomer. The SSG are used for easy fixing or securing of cable protection conduits and distinguish themselves with the following advantages:
Quick and easy assembly
The elastomer cover prevents damage to the protective conduits
Suitable for all cable protection conduits
-40°C – 120°C
| Type | Order No. | C mm | G mm | ID mm | A1 mm | A2 mm | C2 mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SSG 06/M5 | 83723210 | 15 | 5.3 | 10 | 13 | 5 | 12 | 25 | ||
| SSG 06/M6 | 83723211 | 18.5 | 6.4 | 10 | 16.2 | 6 | 15 | 25 | ||
| SSG 07/M5 | 83723212 | 15 | 5.3 | 12 | 14 | 5 | 12 | 25 | ||
| SSG 07/M6 | 83723213 | 18.5 | 6.4 | 12 | 17.2 | 6 | 15 | 25 | ||
| SSG 09/M5 | 83723214 | 15 | 5.3 | 13 | 14.5 | 5 | 12 | 25 | ||
| SSG 09/M6 | 83723215 | 18.5 | 6.4 | 13 | 17.7 | 6 | 15 | 25 | ||
| SSG 11/M5 | 83723216 | 15 | 5.3 | 15 | 15.5 | 5 | 12 | 25 | ||
| SSG 11/M6 | 83723217 | 18.5 | 6.4 | 15 | 18.7 | 6 | 15 | 25 | ||
| SSG 13/M8 | 83723223 | 8.4 | 50 | |||||||
| SSG 16/M5 | 83723218 | 15 | 5.3 | 21 | 18.5 | 5 | 12 | 25 | ||
| SSG 16/M6 | 83723219 | 18.5 | 6.4 | 21 | 21.7 | 6 | 15 | 25 | ||
| SSG 16/M8 für EW-16 Schlauchschelle | 83723221 | 18.5 | 8.4 | 21 | 21.7 | 6 | 15 | 50 | ||
| SSG 21/M6 | 83723222 | 18.5 | 6.4 | 28 | 25.2 | 6 | 15 | 25 | ||
| SSG 21/M8 für EW-21 Schlauchschelle | 83723225 | 18.5 | 8.4 | 28 | 25.2 | 6 | 15 | 25 | ||
| SSG 29/M6 | 83723224 | 18.5 | 6.4 | 34 | 28.2 | 6 | 15 | 25 | ||
| SSG 36/M8 | 83723226 | 25 | 8.4 | 40 | 34.5 | 8.5 | 20 | 10 | ||
| SSG 48/M6 | 83723228 | 18.5 | 6.4 | 54 | 38.2 | 6 | 15 | 10 | ||
| SSG 70/M8 | 83723230 | 24.5 | 8.4 | 78 | 107 | 8.5 | 20 | 10 | ||
| SSG 95/M8 | 83723232 | 24.5 | 8.4 | 105 | 134 | 8.5 | 20 | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83723213 83723213 EN_83723211.pdf | 429 Kbytes |
|
