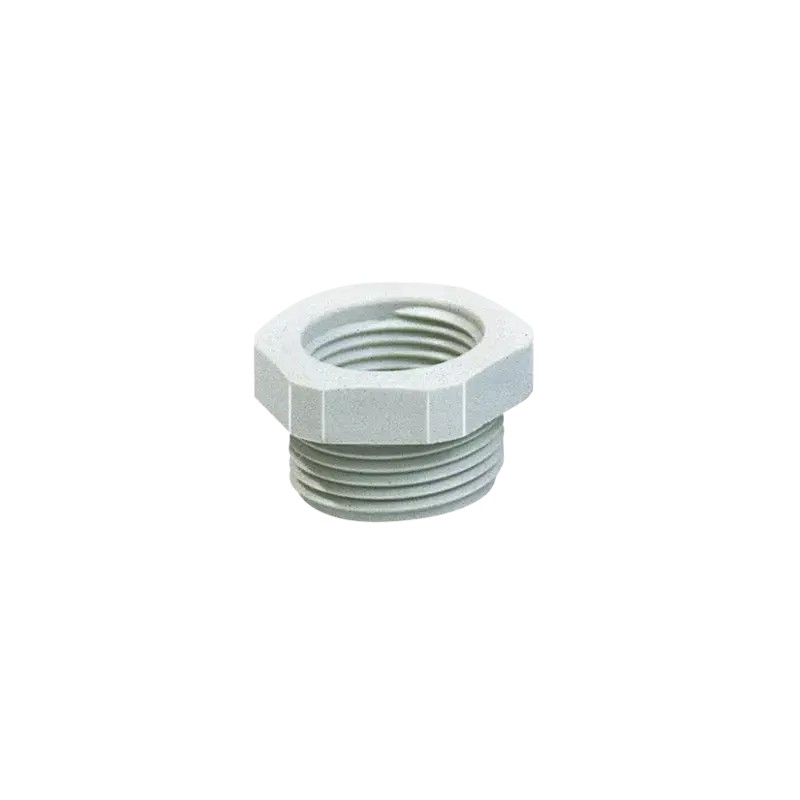

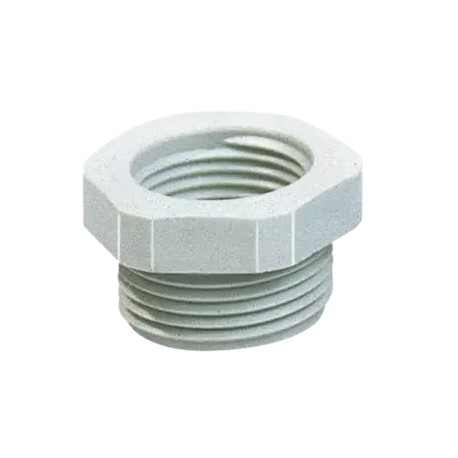

83722428 MURRPLASTIK Conduits and fitting systems Type KRR (plastic reducing bush) Pg / Pg version
83722428
MURRPLASTIK
100
Conduits and fitting systems Type KRR (plastic reducing bush) Pg / Pg version
KRR PG 21/13,5 Reductor de rosca, gr
Type KRR (plastic reducing bush)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The thread reducing bush is made of specially modified polyamide and is available with metric or Pg thread.
They are to be used with an additional type OR O-ring. (O-ring is not included in the delivery)
Halogen-free
-30°C – 100°C, short term 130°C
acc. to UL94 HB
| Type | Order No. | Colour | AG | IG | EH mm | GL mm | SW 1 mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Metric / metric version | ||||||||||
| KRR-M20/M12 | 83727450 | Black | M20x1,5 | M12x1,5 | 4 | 8 | 24 | 100 | ||
| KRR-M20/M16 | 83727452 | Black | M20x1,5 | M16x1,5 | 3 | 9 | 24 | 100 | ||
| KRR-M25/M12 | 83727454 | Black | M25x1,5 | M12x1,5 | 5.5 | 8 | 30 | 100 | ||
| KRR-M25/M16 | 83727456 | Black | M25x1,5 | M16x1,5 | 5.5 | 8 | 30 | 100 | ||
| KRR-M25/M20 | 83727458 | Black | M25x1,5 | M20x1,5 | 3.5 | 10 | 30 | 100 | ||
| KRR-M32/M12 | 83727460 | Black | M32x1,5 | M12x1,5 | 6 | 10 | 36 | 50 | ||
| KRR-M32/M16 | 83727462 | Black | M32x1,5 | M16x1,5 | 5 | 10 | 36 | 50 | ||
| KRR-M32/M20 | 83727464 | Black | M32x1,5 | M20x1,5 | 5 | 10 | 36 | 50 | ||
| KRR-M32/M25 | 83727466 | Black | M32x1,5 | M25x1,5 | 4 | 11 | 36 | 50 | ||
| KRR-M40/M16 | 83727468 | Black | M40x1,5 | M16x1,5 | 6 | 10 | 46 | 50 | ||
| KRR-M40/M20 | 83727470 | Black | M40x1,5 | M20x1,5 | 6 | 10 | 46 | 50 | ||
| KRR-M40/M25 | 83727472 | Black | M40x1,5 | M25x1,5 | 6 | 10 | 46 | 50 | ||
| KRR-M40/M32 | 83727474 | Black | M40x1,5 | M32x1,5 | 4 | 12 | 46 | 50 | ||
| KRR-M50/M20 | 83727476 | Black | M50x1,5 | M20x1,5 | 6 | 12 | 55 | 25 | ||
| KRR-M50/M25 | 83727478 | Black | M50x1,5 | M25x1,5 | 5.5 | 12 | 55 | 25 | ||
| KRR-M50/M32 | 83727480 | Black | M50x1,5 | M32x1,5 | 6 | 12 | 55 | 25 | ||
| KRR-M50/M40 | 83727482 | Black | M50x1,5 | M40x1,5 | 6 | 12 | 55 | 25 | ||
| KRR-M63/M25 | 83727484 | Black | M63x1,5 | M25x1,5 | 6 | 12 | 68 | 25 | ||
| KRR-M63/M32 | 83727486 | Black | M63x1,5 | M32x1,5 | 6 | 12 | 68 | 25 | ||
| KRR-M63/M40 | 83727488 | Black | M63x1,5 | M40x1,5 | 6 | 12 | 68 | 25 | ||
| KRR-M63/M50 | 83727490 | Black | M63x1,5 | M50x1,5 | 6 | 12 | 68 | 25 | ||
| KRR-M20/M12 | 83727400 | Grey | M20x1,5 | M12x1,5 | 4 | 8 | 24 | 100 | ||
| KRR-M20/M16 | 83727402 | Grey | M20x1,5 | M16x1,5 | 3 | 9 | 24 | 100 | ||
| KRR-M25/M12 | 83727404 | Grey | M25x1,5 | M12x1,5 | 5.5 | 8 | 30 | 100 | ||
| KRR-M25/M16 | 83727406 | Grey | M25x1,5 | M16x1,5 | 5.5 | 8 | 30 | 100 | ||
| KRR-M25/M20 | 83727408 | Grey | M25x1,5 | M20x1,5 | 3.5 | 10 | 30 | 100 | ||
| KRR-M32/M12 | 83727410 | Grey | M32x1,5 | M12x1,5 | 6 | 10 | 36 | 50 | ||
| KRR-M32/M16 | 83727412 | Grey | M32x1,5 | M16x1,5 | 5 | 10 | 36 | 50 | ||
| KRR-M32/M20 | 83727414 | Grey | M32x1,5 | M20x1,5 | 5 | 10 | 36 | 50 | ||
| KRR-M32/M25 | 83727416 | Grey | M32x1,5 | M25x1,5 | 4 | 11 | 36 | 100 | ||
| KRR-M40/M16 | 83727418 | Grey | M40x1,5 | M16x1,5 | 6 | 10 | 46 | 50 | ||
| KRR-M40/M20 | 83727420 | Grey | M40x1,5 | M20x1,5 | 6 | 10 | 46 | 50 | ||
| KRR-M40/M25 | 83727422 | Grey | M40x1,5 | M25x1,5 | 6 | 10 | 46 | 50 | ||
| KRR-M40/M32 | 83727424 | Grey | M40x1,5 | M32x1,5 | 4 | 12 | 46 | 50 | ||
| KRR-M50/M20 | 83727426 | Grey | M50x1,5 | M20x1,5 | 6 | 12 | 55 | 25 | ||
| KRR-M50/M25 | 83727428 | Grey | M50x1,5 | M25x1,5 | 6 | 12 | 55 | 25 | ||
| KRR-M50/M32 | 83727430 | Grey | M50x1,5 | M32x1,5 | 6 | 12 | 55 | 25 | ||
| KRR-M50/M40 | 83727432 | Grey | M50x1,5 | M40x1,5 | 6 | 12 | 55 | 25 | ||
| KRR-M63/M25 | 83727434 | Grey | M63x1,5 | M25x1,5 | 6 | 12 | 68 | 25 | ||
| KRR-M63/M32 | 83727436 | Grey | M63x1,5 | M32x1,5 | 6 | 12 | 68 | 25 | ||
| KRR-M63/M40 | 83727438 | Grey | M63x1,5 | M40x1,5 | 6 | 12 | 68 | 25 | ||
| KRR-M63/M50 | 83727440 | Grey | M63x1,5 | M50x1,5 | 6 | 11.5 | 68 | 25 | ||
Pg / Pg version | ||||||||||
| KRR-Pg 11/07 | 83722410 | Grey | Pg 11 | Pg 07 | 6 | 8 | 22 | 100 | ||
| KRR-Pg 11/09 | 83722412 | Grey | Pg 11 | Pg 09 | 13.5 | 9 | 22 | 100 | ||
| KRR-Pg 13.5/07 | 83722414 | Grey | Pg 13.5 | Pg 07 | 6 | 9 | 24 | 100 | ||
| KRR-Pg 13/09 | 83722416 | Grey | Pg 13.5 | Pg 09 | 6 | 9 | 24 | 100 | ||
| KRR-Pg 13/11 | 83722420 | Grey | Pg 13.5 | Pg 11 | 14 | 10 | 24 | 100 | ||
| KRR-Pg 16/09 | 83722418 | Grey | Pg 16 | Pg 09 | 6 | 10 | 27 | 100 | ||
| KRR-Pg 16/11 | 83722422 | Grey | Pg 16 | Pg 11 | 6 | 10 | 27 | 100 | ||
| KRR-Pg 16/13.5 | 83722424 | Grey | Pg 16 | Pg 13.5 | 7 | 10 | 27 | 100 | ||
| KRR-Pg 21/11 | 83722426 | Grey | Pg 21 | Pg 11 | 5.5 | 10.5 | 32 | 100 | ||
| KRR-Pg 21/13.5 | 83722428 | Grey | Pg 21 | Pg 13.5 | 5.5 | 10.5 | 32 | 100 | ||
| KRR-Pg 21/16 | 83722430 | Grey | Pg 21 | Pg 16 | 5.5 | 10.5 | 32 | 100 | ||
| KRR-Pg 29/13 | 83722432 | Grey | Pg 29 | Pg 13 | 5 | 12 | 40 | 50 | ||
| KRR-Pg 29/16 | 83722434 | Grey | Pg 29 | Pg 16 | 5 | 12 | 40 | 50 | ||
| KRR-Pg 29/21 | 83722436 | Grey | Pg 29 | Pg 21 | 5 | 12 | 40 | 50 | ||
| KRR-Pg 36/16 | 83722438 | Grey | Pg 36 | Pg 16 | 6 | 13 | 50 | 50 | ||
| KRR-Pg 36/21 | 83722440 | Grey | Pg 36 | Pg 21 | 6 | 13 | 50 | 50 | ||
| KRR-Pg 36/29 | 83722442 | Grey | Pg 36 | Pg 29 | 11 | 13 | 50 | 50 | ||
| KRR-Pg 42/21 | 83722444 | Grey | Pg 42 | Pg 21 | 8 | 16 | 55 | 25 | ||
| KRR-Pg 42/29 | 83722446 | Grey | Pg 42 | Pg 29 | 6 | 18 | 55 | 25 | ||
| KRR-Pg 42/36 | 83722448 | Grey | Pg 42 | Pg 36 | 8 | 16 | 55 | 25 | ||
| KRR-Pg 48/29 | 83722450 | Grey | Pg 48 | Pg 29 | 7 | 17 | 60 | 25 | ||
| KRR-Pg 48/36 | 83722452 | Grey | Pg 48 | Pg 36 | 3 | 17 | 60 | 25 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83722428 83722428 EN_83727410.pdf | 653 Kbytes |
|
