83722010 MURRPLASTIK Conduits and fitting systems Type GM (metal lock nut) Pg threads
83722010
MURRPLASTIK
100
Conduits and fitting systems Type GM (metal lock nut) Pg threads
GM PG 07 Contratuerca de metal
Type GM (metal lock nut)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

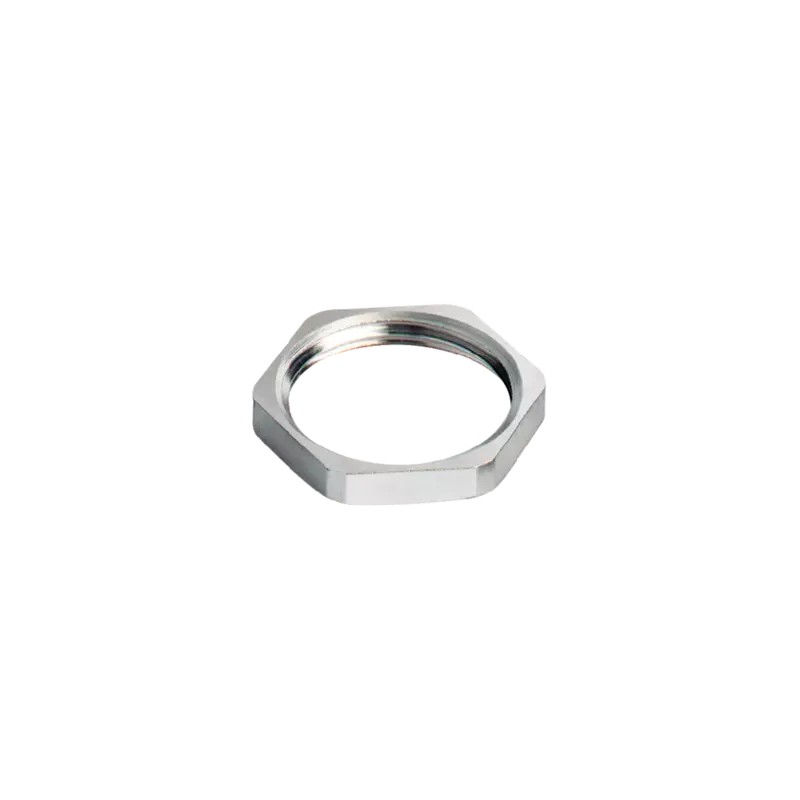

▲The GM type lock nut is made of brass with nickel plating. It is available with metric or Pg thread and usable for all corresponding conduit and cable fittings, preferably with metal threads.
Halogen-free
| Type | Order No. | IG | EH mm | SW 1 mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|
Metric thread | |||||||
| GM-M12x1,5 | 83727010 | M12x1,5 | 2.8 | 15 | 100 | ||
| GM-M16x1,5 | 83727012 | M16x1,5 | 2.8 | 19 | 100 | ||
| GM-M20x1,5 | 83727014 | M20x1,5 | 3 | 24 | 100 | ||
| GM-M25x1,5 | 83727016 | M25x1,5 | 3.5 | 30 | 100 | ||
| GM-M32x1,5 | 83727018 | M32x1,5 | 4.5 | 36 | 100 | ||
| GM-M40x1,5 | 83727020 | M40x1,5 | 5 | 46 | 50 | ||
| GM-M50x1,5 | 83727022 | M50x1,5 | 5 | 60 | 50 | ||
| GM-M63x1,5 | 83727024 | M63x1,5 | 6 | 70 | 50 | ||
Pg threads | |||||||
| GM-Pg 07 | 83722010 | Pg 07 | 2.8 | 15 | 100 | ||
| GM-Pg 09 | 83722012 | Pg 09 | 2.8 | 18 | 100 | ||
| GM-Pg 11 | 83722014 | Pg 11 | 3 | 21 | 100 | ||
| GM-Pg 13.5 | 83722016 | Pg 13.5 | 3 | 23 | 100 | ||
| GM-Pg 16 | 83722018 | Pg 16 | 3 | 26 | 100 | ||
| GM-Pg 21 | 83722020 | Pg 21 | 3.5 | 32 | 100 | ||
| GM-Pg 29 | 83722022 | Pg 29 | 4 | 41 | 100 | ||
| GM-Pg 36 | 83722024 | Pg 36 | 5 | 51 | 50 | ||
| GM-Pg 42 | 83722026 | Pg 42 | 5 | 60 | 50 | ||
| GM-Pg 48 | 83722028 | Pg 48 | 5.5 | 64 | 50 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83722010 83722010 EN_83722014.pdf | 400 Kbytes |
|
