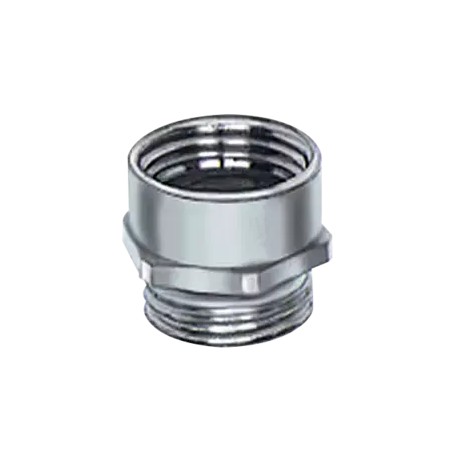

83721810 MURRPLASTIK Conduits and fitting systems Type ER/EG (metal extension) Pg / Pg version
83721810
MURRPLASTIK
100
Conduits and fitting systems Type ER/EG (metal extension) Pg / Pg version
EG PG 07/09 Ampliador de metal
Type ER/EG (metal extension)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

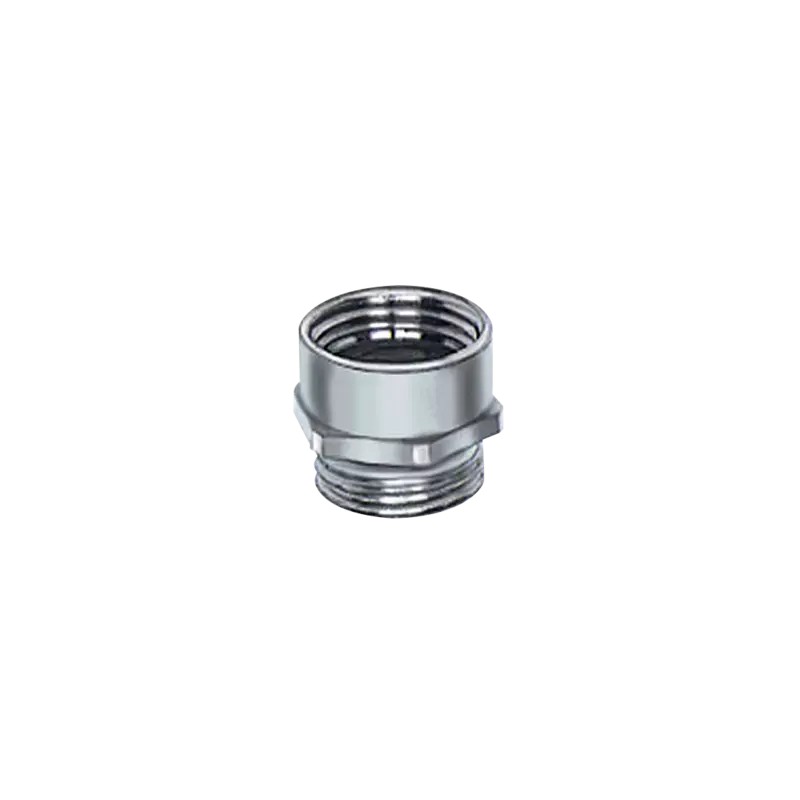

▲The type ER/EG thread extension bush is made of brass with nickel plating. They are available with metric or Pg thread and depending on the type, as a round or hexagon version. The thread extension bush fittings are in part already equipped with an O-ring on the external thread (see identification).
The following versions of the thread extension bush are available:
Metric/metric
Metric/Pg
Pg/Pg
| Type | Order No. | AG | IG | EH mm | GL 1 mm | GL 2 mm | SW 1 mm | MOQ qty. | Ø mm | Fussnote Variante 2 (unter Var) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metric / metric version | ||||||||||||
| ER-M12/M16 | 83728010 | M12x1,5 | M16x1,5 | 10 | 5 | 9 | 18 | 100 | ||||
| ER-M16/M20 | 83728012 | M16x1,5 | M20x1,5 | 10.5 | 5 | 9.5 | 22 | 100 | ||||
| ER-M20/M25 | 83728014 | M20x1,5 | M25x1,5 | 11.5 | 6 | 10.5 | 27 | 50 | ||||
| ER-M25/M32 | 83728016 | M25x1,5 | M32x1,5 | 12.5 | 7 | 11 | 34 | 25 | ||||
| ER-M32/M40 | 83728018 | M32x1,5 | M40x1,5 | 14.5 | 8 | 13 | 42 | 10 | ||||
| ER-M40/M50 | 83728020 | M40x1,5 | M50x1,5 | 19.5 | 8 | 18 | 52 | 10 | ||||
| ER-M50/M63 | 83728022 | M50x1,5 | M63x1,5 | 22 | 9 | 20 | 65 | 10 | ||||
Metric / Pg version | ||||||||||||
| EG-M12/Pg 09 | 83726810 | M12x1,5 | Pg 09 | 10 | 5 | 9 | 100 | 17 | ||||
| EG-M16/Pg 11 | 83726812 | M16x1,5 | Pg 11 | 10.5 | 5 | 9.5 | 100 | 20 | ||||
| EG-M20/Pg 16 | 83726814 | M20x1,5 | Pg 16 | 12.5 | 6 | 10.5 | 100 | 24 | ||||
| EG-M25/Pg 21 | 83726816 | M25x1,5 | Pg 21 | 14.5 | 7 | 11 | 100 | 30 | ||||
| EG-M32/Pg 29 | 83726818 | M32x1,5 | Pg 29 | 22 | 8 | 13 | 50 | 39 | ||||
| EG-M40/Pg 36 | 83726820 | M40x1,5 | Pg 36 | 19.5 | 8 | 18 | 50 | 50 | ||||
| EG-M50/Pg 42 | 83726822 | M50x1,5 | Pg 42 | 22 | 9 | 20 | 25 | 57 | No stock goods, delivery time and minimum order quantities upon request | |||
| EG-M50/Pg 48 | 83726824 | M50x1,5 | Pg 48 | 23 | 9 | 20 | 25 | 64 | ||||
Pg / Pg version | ||||||||||||
| EG-Pg 07/09 | 83721810 | Pg 07 | Pg 09 | 10 | 5 | 9 | 100 | 17 | ||||
| EG-Pg 09/11 | 83721812 | Pg 09 | Pg 11 | 10.5 | 6 | 9.5 | 100 | 20 | ||||
| EG-Pg 09/13.5 | 83721814 | Pg 09 | Pg 13.5 | 10.5 | 6 | 10.5 | 100 | 22 | ||||
| EG-Pg 11/13.5 | 83721816 | Pg 11 | Pg 13.5 | 11.5 | 6 | 10.5 | 100 | 22 | ||||
| EG-Pg 11/16 | 83721818 | Pg 11 | Pg 16 | 11.5 | 6 | 11 | 100 | 24 | ||||
| EG-Pg 13.5/16 | 83721820 | Pg 13.5 | Pg 16 | 13.5 | 6.5 | 11 | 100 | 24 | ||||
| EG-Pg 16/21 | 83721822 | Pg 16 | Pg 21 | 15.5 | 6.5 | 13 | 100 | 30 | ||||
| EG-Pg 21/29 | 83721824 | Pg 21 | Pg 29 | 16 | 7 | 14.5 | 50 | 39 | ||||
| EG-Pg 29/36 | 83721826 | Pg 29 | Pg 36 | 19.5 | 8 | 18 | 25 | 50 | ||||
| EG-Pg 36/42 | 83721828 | Pg 36 | Pg 42 | 22 | 9 | 20 | 10 | 50 | ||||
| EG-Pg 42/48 | 83721830 | Pg 42 | Pg 48 | 23 | 10 | 21 | 10 | 64 | ||||
Pg / metric version | ||||||||||||
| ER-Pg 07/M12 | 83728210 | Pg 07 | M12x1,5 | 10 | 5 | 7.5 | 14 | 100 | ||||
| ER-Pg 09/M16 | 83728212 | Pg 09 | M16x1,5 | 10 | 6 | 7.5 | 19 | 100 | ||||
| ER-Pg 11/M16 | 83728214 | Pg 11 | M16x1,5 | 10 | 6 | 7.5 | 22 | 100 | ||||
| ER-Pg 13.5/M20 | 83728216 | Pg 13.5 | M20x1,5 | 11 | 6.5 | 8.5 | 24 | 100 | ||||
| ER-Pg 16/M20 | 83728218 | Pg 16 | M20x1,5 | 11 | 6.5 | 8.5 | 27 | 100 | ||||
| ER-Pg 16/M25 | 83728220 | Pg 16 | M25x1,5 | 12 | 6.5 | 9.5 | 30 | 100 | ||||
| ER-Pg 21/M25 | 83728222 | Pg 21 | M25x1,5 | 12 | 7 | 9.5 | 32 | 100 | ||||
| ER-Pg 21/M32 | 83728224 | Pg 21 | M32x1,5 | 13 | 7 | 10.5 | 36 | 100 | ||||
| ER-Pg 29/M40 | 83728226 | Pg 29 | M40x1,5 | 13 | 8 | 11 | 43 | 50 | ||||
| ER-Pg 36/M50 | 83728228 | Pg 36 | M50x1,5 | 14 | 9 | 11.5 | 55 | 25 | ||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83721810 83721810 EN_83728224.pdf | 403 Kbytes |
|
