83721612 MURRPLASTIK Conduits and fitting systems Type BWM (fastening bracket) For PG threading
83721612
MURRPLASTIK
25
Conduits and fitting systems Type BWM (fastening bracket) For PG threading
BWM 11 Codo de fijación de metal
Type BWM (fastening bracket)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

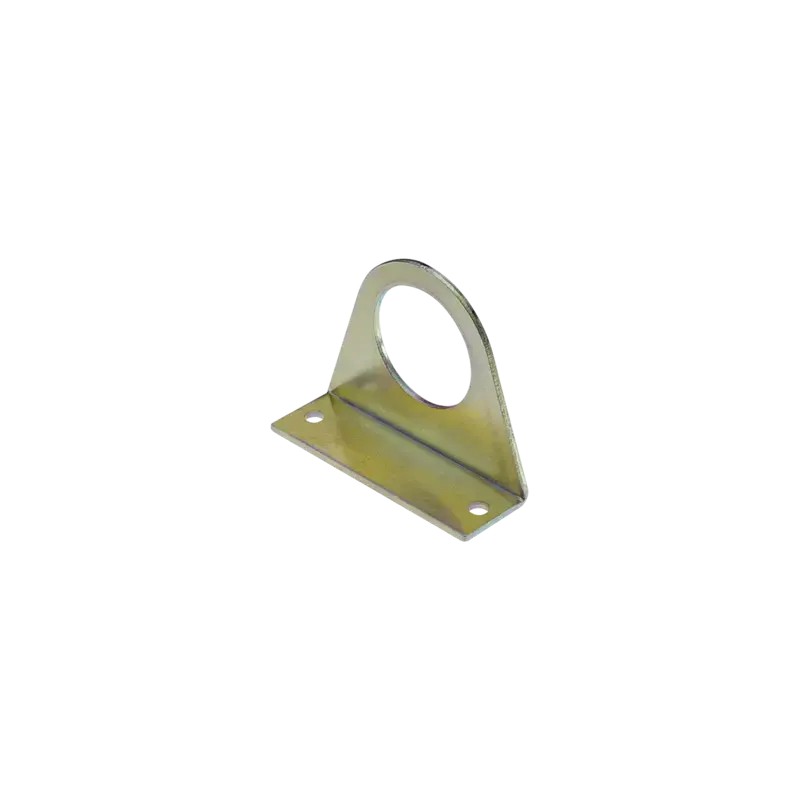

▲The type BWM fastening bracket is made of sheet steel with zinc plating. It is used as a universal holder for fastening fittings to equipment and machinery.
The fastening bracket features the following advantages:
Quick and easy fastening
For Pg and metric fittings
Fastening of fitting secured with lock nut
| Type | Order No. | Suitable for Thread | A mm | B mm | C mm | G mm | A1 mm | B1 mm | Ø mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
For metric threading | ||||||||||||
| BWM-M12x1,5 | 83721660 | M12x1,5 | 35 | 31.5 | 12 | 4 | 25 | 1.5 | 12.4 | 25 | ||
| BWM-M16x1,5 | 83721662 | M16x1,5 | 50 | 31.5 | 12 | 4 | 40 | 1.5 | 16.4 | 25 | ||
| BWM-M20x1,5 | 83721664 | M20x1,5 | 50 | 37.5 | 20 | 4 | 40 | 2 | 20.5 | 25 | ||
| BWM-M25x1,5 | 83721666 | M25x1,5 | 60 | 47.5 | 20 | 4 | 50 | 2 | 25.5 | 25 | ||
| BWM-M32x1,5 | 83721668 | M32x1,5 | 70 | 57.5 | 20 | 4 | 60 | 2 | 32.5 | 25 | ||
| BWM-M40x1,5 | 83721670 | M40x1,5 | 80 | 68.5 | 20 | 4 | 70 | 2 | 40.5 | 25 | ||
| BWM-M50x1,5 | 83721672 | M50x1,5 | 90 | 81 | 20 | 4 | 80 | 2 | 51 | 25 | ||
For PG threading | ||||||||||||
| BWM 09 | 83721610 | Pg 09 | 35 | 31.5 | 12 | 4 | 25 | 1.5 | 15.3 | 25 | ||
| BWM 11 | 83721612 | Pg 11 | 35 | 31.5 | 12 | 4 | 25 | 1.5 | 18.8 | 25 | ||
| BWM 16 | 83721614 | Pg 16 | 50 | 38 | 20 | 4 | 40 | 2 | 23 | 25 | ||
| BWM 21 | 83721616 | Pg 21 | 60 | 47.5 | 20 | 4 | 50 | 2 | 28.5 | 25 | ||
| BWM 29 | 83721618 | Pg 29 | 70 | 57.3 | 20 | 4 | 60 | 2 | 37.5 | 25 | ||
| BWM 36 | 83721620 | Pg 36 | 80 | 67.8 | 20 | 4 | 70 | 2 | 47.5 | 25 | ||
| BWM 48 | 83721622 | Pg 48 | 90 | 80.5 | 20 | 4 | 80 | 2 | 60 | 25 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83721612 83721612 EN_83721610.pdf | 479 Kbytes |
|
