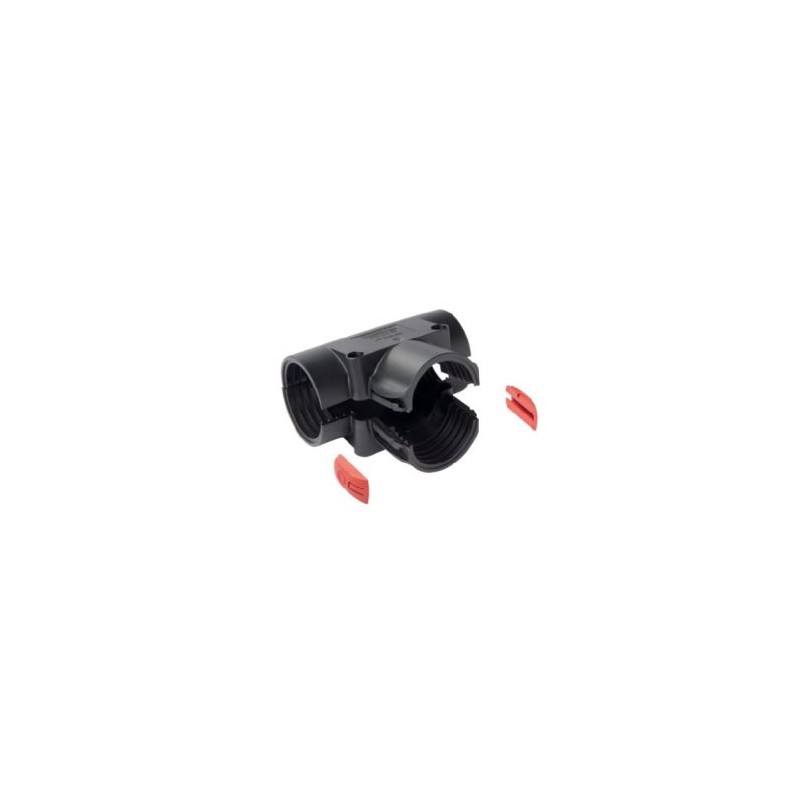

83702482 MURRPLASTIK Conduits and fitting systems Type VT-V Hose distributor suitable for Murrflex EW and EWX
83702482
MURRPLASTIK
Conduits and fitting systems Type VT-V Hose distributor suitable for Murrflex EW and EWX
VT 707070-V Distribuidor en T, sw
Type VT-V
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The T distributors are made of specially modified polyamide 6. The material is halogen, phosphor and cadmium-free.
The T distributors are ideal for quick and easy coupling of Murrplastik cable protection conduits. With their split design, simple routing of cables is guaranteed.
The VT-V conduit distributors feature the following advantages:
Flat construction
Separable
Half-shells can be screwed together or fastened to the control cabinet individually
Simple assembly with a sliding lock and optional lock screw assembly
Low cost connector for cable protection conduits
High tear-out strength
Halogen-free
-40°C – 110°C, short term 140°C
acc. to UL94 V0
IP 42
| Type | Order No. | Colour | for Murrflex with NW1 / NW2 / NW3 | A mm | C mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|
Conduit distributor suitable for Murrflex EW and EWX | ||||||||
| VT 323232-V | 83702466 | Black | 29 / 29 / 29 | 80 | 85 | 1 | ||
| VT 505050-V | 83702473 | Black | 48 / 48 / 48 | 130 | 120 | 1 | ||
| VT 707070-V | 83702482 | Black | 70 / 70 / 70 | 154 | 145 | 1 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83702482 83702482 EN_83702466.pdf | 935 Kbytes |
|
