83702452 MURRPLASTIK Conduits and fitting systems Type KFW Hose distributor suitable for Murrflex EW and EWX
83702452
MURRPLASTIK
10
Conduits and fitting systems Type KFW Hose distributor suitable for Murrflex EW and EWX
VT 282028 Distribuidor en T, sw
Typ VT
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

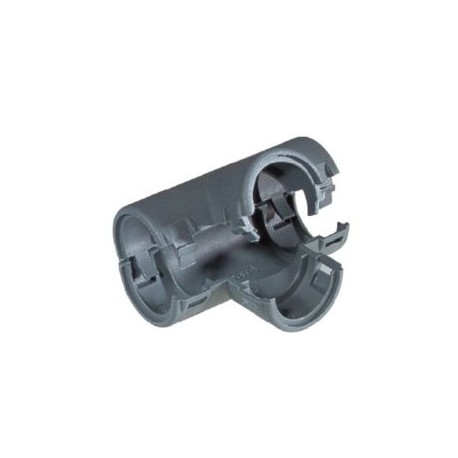

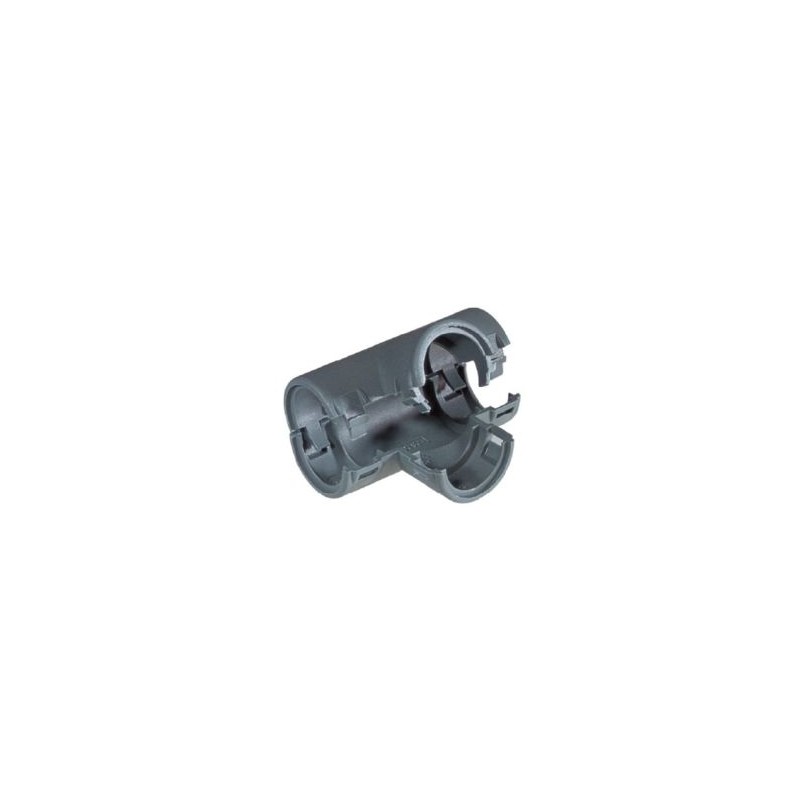

▲The VT conduit distributors are made of specially modified polyamide 6. They are used for coupling Murrplastik cable protection conduits of the same and different diameters.
The distributors feature the following advantages:
Easy assembly by latching
Split version makes routing of cables easy
Distributor envelops the conduit, which means that the entire inside diameter of the conduit is available
Halogen-free
-40°C – 110°C, short term 140°C
acc. to UL94 V0
IP 42
| Type | Order No. | Colour | for Murrflex with NW1 / NW2 / NW3 | A mm | C mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|
Conduit distributor suitable for Murrflex EW and EWX | ||||||||
| VT 080808 | 83702410 | Black | 06 / 06 / 06 | 31.1 | 45.2 | 10 | ||
| VT 120808 | 83702412 | Black | 09 / 06 / 06 | 31.1 | 45.2 | 10 | ||
| VT 120812 | 83702414 | Black | 09 / 06 / 09 | 31.1 | 45.2 | 10 | ||
| VT 121208 | 83702416 | Black | 09 / 09 / 06 | 31.1 | 45.2 | 10 | ||
| VT 121212 | 83702418 | Black | 09 / 09 / 09 | 31.1 | 45.2 | 10 | ||
| VT 160816 | 83702420 | Black | 11 / 06 / 11 | 34.8 | 49.1 | 10 | ||
| VT 161212 | 83702422 | Black | 11 / 09 / 09 | 34.8 | 49.1 | 10 | ||
| VT 161216 | 83702424 | Black | 11 / 09 / 11 | 34.8 | 49.1 | 10 | ||
| VT 161612 | 83702426 | Black | 11 / 11 / 09 | 34.8 | 49.1 | 10 | ||
| VT 161616 | 83702428 | Black | 11 / 11 / 11 | 34.8 | 49.1 | 10 | ||
| VT 200820 | 83702430 | Black | 16 / 06 / 16 | 41 | 56.5 | 10 | ||
| VT 201216 | 83702432 | Black | 16 / 09 / 11 | 41 | 56.5 | 10 | ||
| VT 201220 | 83702434 | Black | 16 / 09 / 16 | 41 | 56.5 | 10 | ||
| VT 201616 | 83702436 | Black | 16 / 11 / 11 | 41 | 56.5 | 10 | ||
| VT 201620 | 83702438 | Black | 16 / 11 / 16 | 41 | 56.5 | 10 | ||
| VT 202016 | 83702440 | Black | 16 / 16 / 11 | 41 | 56.5 | 10 | ||
| VT 202020 | 83702441 | Black | 16 / 16 / 16 | 41 | 56.5 | 10 | ||
| VT 281220 | 83702442 | Black | 21 / 09 / 16 | 48.6 | 64.5 | 10 | ||
| VT 281620 | 83702444 | Black | 21 / 11 / 16 | 48.6 | 64.5 | 10 | ||
| VT 282020 | 83702446 | Black | 21 / 16 / 16 | 48.6 | 64.5 | 10 | ||
| VT 281228 | 83702448 | Black | 21 / 09 / 21 | 48.6 | 64.5 | 10 | ||
| VT 281628 | 83702450 | Black | 21 / 11 / 21 | 48.6 | 64.5 | 10 | ||
| VT 282028 | 83702452 | Black | 21 / 16 / 21 | 48.6 | 64.5 | 10 | ||
| VT 282828 | 83702454 | Black | 21 / 21 / 21 | 48.6 | 64.5 | 10 | ||
| VT 321632 | 83702456 | Black | 29 / 11 / 29 | 55.3 | 72 | 10 | ||
| VT 322028 | 83702457 | Black | 29 / 16 / 21 | 55.3 | 72 | 10 | ||
| VT 322032 | 83702458 | Black | 29 / 16 / 29 | 55.3 | 72 | 10 | ||
| VT 323232 | 83702460 | Black | 29 / 29 / 29 | 72 | 55.3 | 10 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83702452 83702452 EN_83702414.pdf | 910 Kbytes |
|
