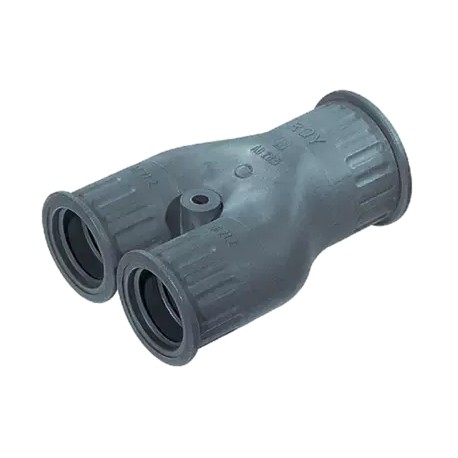

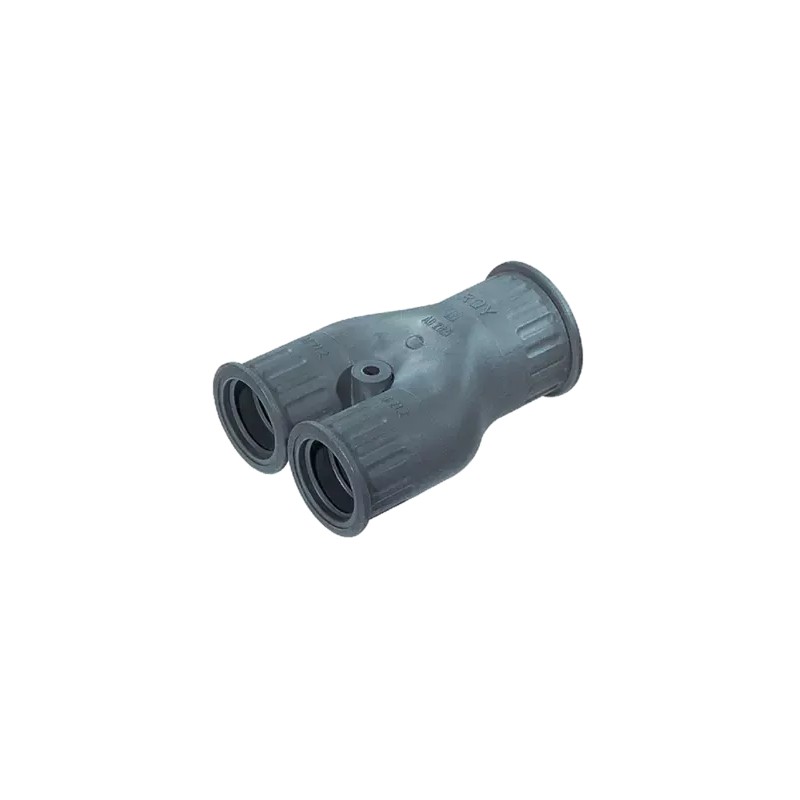

83701886 MURRPLASTIK Conduits and fitting systems Type YTPE-F
83701886
MURRPLASTIK
10
Conduits and fitting systems Type YTPE-F
YTPE-F-29/29/36 Distribuidor en Y, sw
Type YTPE-F
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The YTPE-F conduit distributors are made of specially modified thermoplastic elastomer. They are used for coupling Murrplastik cable protection conduits of the same and different diameters.
The distributors feature the following advantages:
Easy assembly - just insert the cable protection conduit
High protection class
Closed design
Halogen-free
-30°C – 100°C
acc. to UL94 HB
IP 66
| Type | Order No. | Colour | for Murrflex with NW1 / NW2 / NW3 | A mm | C mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|
| YTPE-F-6/6/6 | 83701856 | Black | 06 / 06 / 06 | 32 | 51 | 10 | ||
| YTPE-F-11/11/16 | 83701870 | Black | 11 / 11 / 16 | 51 | 75 | 10 | ||
| YTPE-F-11/11/21 | 83701872 | Black | 11 / 11 / 21 | 52 | 81 | 10 | ||
| YTPE-F-16/16/16 | 83701874 | Black | 16 / 16 / 16 | 62.5 | 82.5 | 10 | ||
| YTPE-F-16/16/21 | 83701878 | Black | 16 / 16 / 21 | 61 | 81 | 10 | ||
| YTPE-F-21/21/29 | 83701882 | Black | 21 / 21 / 29 | 79 | 87 | 10 | ||
| YTPE-F-29/29/36 | 83701886 | Black | 29 / 29 / 36 | 87 | 99 | 10 | ||
| YTPE-F-36/36/48 | 83701888 | Black | 36 / 36 / 48 | 109 | 116 | 5 | ||
| YTPE-F-6/6/6 | 83701826 | Grey | 06 / 06 / 06 | 32 | 51 | 10 | ||
| YTPE-F-11/11/16 | 83701830 | Grey | 11 / 11 / 16 | 51 | 75 | 10 | ||
| YTPE-F-16/16/16 | 83701834 | Grey | 16 / 16 / 16 | 62.5 | 82.5 | 10 | ||
| YTPE-F-16/16/21 | 83701838 | Grey | 16 / 16 / 21 | 61 | 81 | 10 | ||
| YTPE-F-21/21/29 | 83701842 | Grey | 21 / 21 / 29 | 79 | 87 | 10 | ||
| YTPE-F-29/29/36 | 83701846 | Grey | 29 / 29 / 36 | 87 | 99 | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83701886 83701886 EN_83701826.pdf | 758 Kbytes |
|
