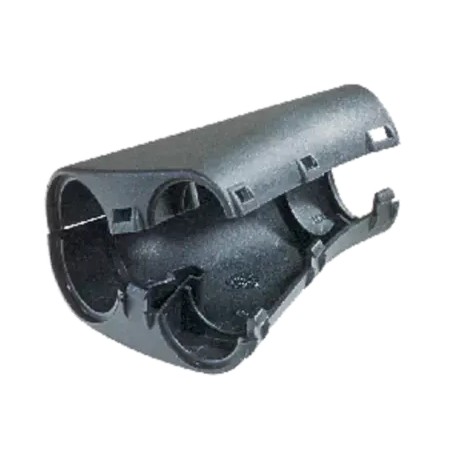

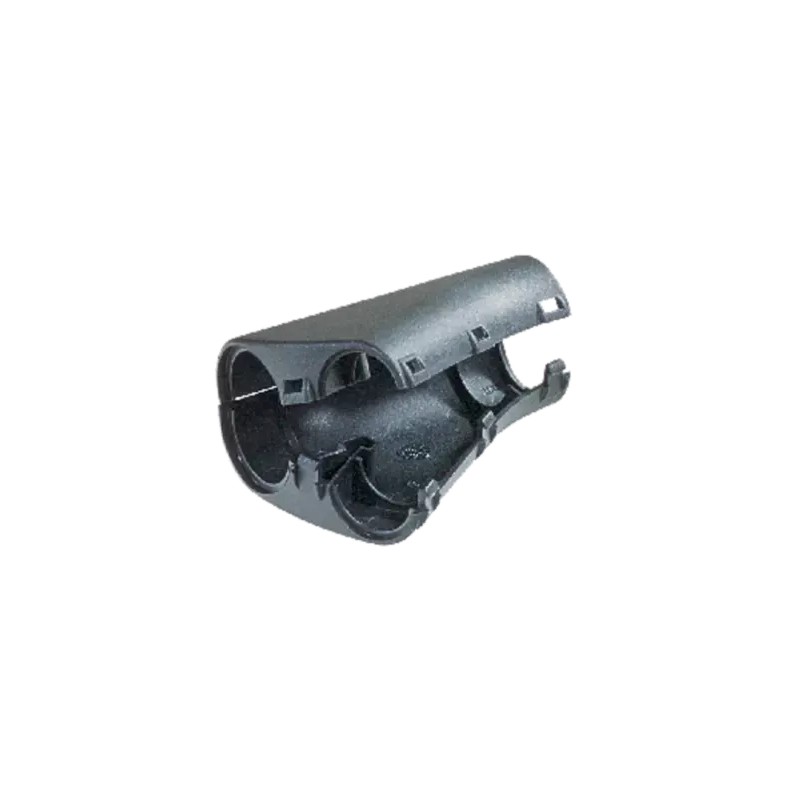

83701442 MURRPLASTIK Conduits and fitting systems Typ SVY

Name: 83701442 MURRPLASTIK Conduits and fitting systems Typ SVY
Brand: MURRPLASTIK
SKU: MUR83701442
Price: 11.14 USD
Availability: OutOfStock

Reference: 83701442

Manufacturer: MURRPLASTIK

Description:

Conduits and fitting systems Typ SVY

SVY 282012 Distribuidor en Y, sw

Typ SVY

Categories:

MURRPLASTIK > Corrugated pipes and fittings

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 99,55 €

Unit Price: 9,955 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

The SVY conduit distributors are made of specially modified polyamide 6. They are used for coupling Murrplastik cable protection conduits of the same and different diameters.

The distributors feature the following advantages:

Easy assembly by latching

Split version makes routing of cables easy

Distributor envelops the conduit, which means that the entire inside diameter of the conduit is available

Halogen-free

-40°C – 110°C, short term 140°C

acc. to UL94 V0

IP 42

Type	Order No.	Colour	for Murrflex with NW1 / NW2 / NW3	A mm	C mm	MOQ qty.
SVY 080808	83701410	Black	06 / 06 / 06	37.1	54.6	10
SVY 120808	83701412	Black	09 / 06 / 06	37.1	54.6	10
SVY 121208	83701414	Black	09 / 09 / 06	37.1	54.6	10
SVY 121212	83701416	Black	09 / 09 / 09	37.1	54.6	10
SVY 161208	83701418	Black	11 / 09 / 06	39.8	54.6	10
SVY 161212	83701420	Black	11 / 09 / 09	39.8	54.6	10
SVY 161608	83701422	Black	11 / 11 / 06	39.8	54.9	10
SVY 161612	83701424	Black	11 / 11 / 09	39.8	54.9	10
SVY 200808	83701426	Black	16 / 06 / 06	39.8	42.8	10
SVY 201208	83701428	Black	16 / 09 / 06	41	42.8	10
SVY 201212	83701430	Black	16 / 09 / 09	41	42.8	10
SVY 201608	83701432	Black	16 / 11 / 06	39.6	48.2	10
SVY 201612	83701434	Black	16 / 11 / 09	39.6	48.2	10
SVY 201616	83701435	Black	16 / 11 / 11	48.2	39.6	10
SVY 202008	83701436	Black	16 / 16 / 06	44.9	57.9	10
SVY 202012	83701438	Black	16 / 16 / 09	44.9	57.9	10
SVY 202016	83701440	Black	16 / 16 / 11	47.5	63.5	10
SVY 282012	83701442	Black	21 / 16 / 09	49	53.5	10
SVY 282016	83701444	Black	21 / 16 / 11	49	53.5	10
SVY 282812	83701446	Black	21 / 21 / 09	56.5	67	10
SVY 282816	83701448	Black	21 / 21 / 11	56.5	67	10
SVY 282820	83701450	Black	21 / 21 / 16	50	76.5	10
SVY 282828	83701452	Black	21 / 21 / 21	66.8	92.1	10
