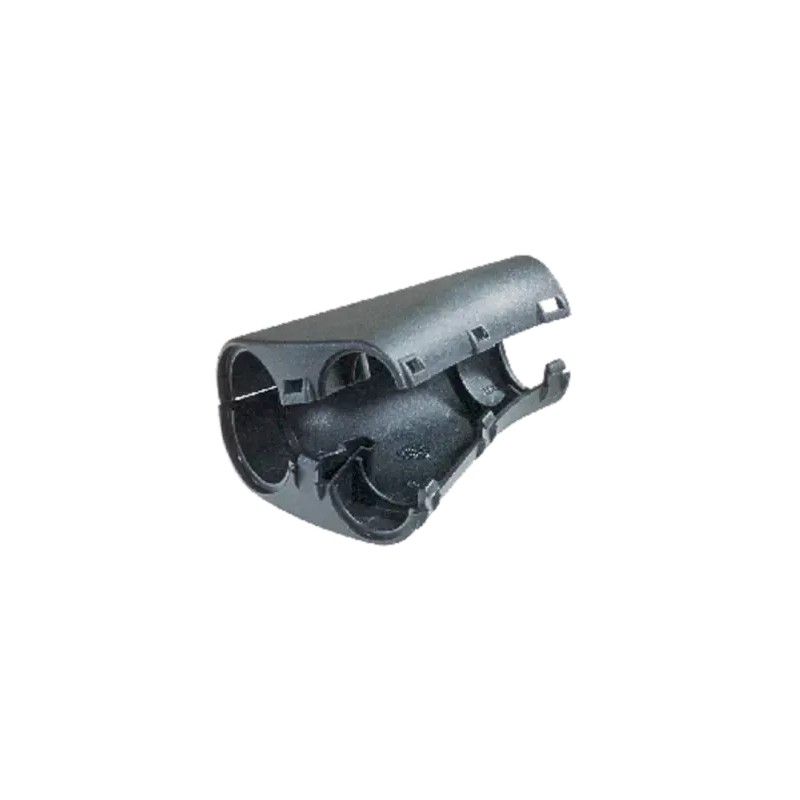

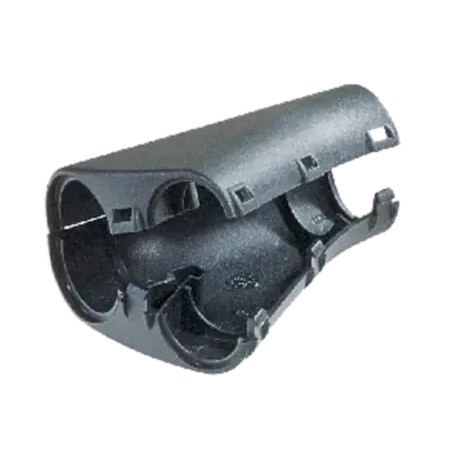

83701426 MURRPLASTIK Conduits and fitting systems Typ SVY
83701426
MURRPLASTIK
10
Conduits and fitting systems Typ SVY
SVY 200808 Distribuidor en Y, sw
Typ SVY
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The SVY conduit distributors are made of specially modified polyamide 6. They are used for coupling Murrplastik cable protection conduits of the same and different diameters.
The distributors feature the following advantages:
Easy assembly by latching
Split version makes routing of cables easy
Distributor envelops the conduit, which means that the entire inside diameter of the conduit is available
Halogen-free
-40°C – 110°C, short term 140°C
acc. to UL94 V0
IP 42
| Type | Order No. | Colour | for Murrflex with NW1 / NW2 / NW3 | A mm | C mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|
| SVY 080808 | 83701410 | Black | 06 / 06 / 06 | 37.1 | 54.6 | 10 | ||
| SVY 120808 | 83701412 | Black | 09 / 06 / 06 | 37.1 | 54.6 | 10 | ||
| SVY 121208 | 83701414 | Black | 09 / 09 / 06 | 37.1 | 54.6 | 10 | ||
| SVY 121212 | 83701416 | Black | 09 / 09 / 09 | 37.1 | 54.6 | 10 | ||
| SVY 161208 | 83701418 | Black | 11 / 09 / 06 | 39.8 | 54.6 | 10 | ||
| SVY 161212 | 83701420 | Black | 11 / 09 / 09 | 39.8 | 54.6 | 10 | ||
| SVY 161608 | 83701422 | Black | 11 / 11 / 06 | 39.8 | 54.9 | 10 | ||
| SVY 161612 | 83701424 | Black | 11 / 11 / 09 | 39.8 | 54.9 | 10 | ||
| SVY 200808 | 83701426 | Black | 16 / 06 / 06 | 39.8 | 42.8 | 10 | ||
| SVY 201208 | 83701428 | Black | 16 / 09 / 06 | 41 | 42.8 | 10 | ||
| SVY 201212 | 83701430 | Black | 16 / 09 / 09 | 41 | 42.8 | 10 | ||
| SVY 201608 | 83701432 | Black | 16 / 11 / 06 | 39.6 | 48.2 | 10 | ||
| SVY 201612 | 83701434 | Black | 16 / 11 / 09 | 39.6 | 48.2 | 10 | ||
| SVY 201616 | 83701435 | Black | 16 / 11 / 11 | 48.2 | 39.6 | 10 | ||
| SVY 202008 | 83701436 | Black | 16 / 16 / 06 | 44.9 | 57.9 | 10 | ||
| SVY 202012 | 83701438 | Black | 16 / 16 / 09 | 44.9 | 57.9 | 10 | ||
| SVY 202016 | 83701440 | Black | 16 / 16 / 11 | 47.5 | 63.5 | 10 | ||
| SVY 282012 | 83701442 | Black | 21 / 16 / 09 | 49 | 53.5 | 10 | ||
| SVY 282016 | 83701444 | Black | 21 / 16 / 11 | 49 | 53.5 | 10 | ||
| SVY 282812 | 83701446 | Black | 21 / 21 / 09 | 56.5 | 67 | 10 | ||
| SVY 282816 | 83701448 | Black | 21 / 21 / 11 | 56.5 | 67 | 10 | ||
| SVY 282820 | 83701450 | Black | 21 / 21 / 16 | 50 | 76.5 | 10 | ||
| SVY 282828 | 83701452 | Black | 21 / 21 / 21 | 66.8 | 92.1 | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83701426 83701426 EN_83701422.pdf | 835 Kbytes |
|
