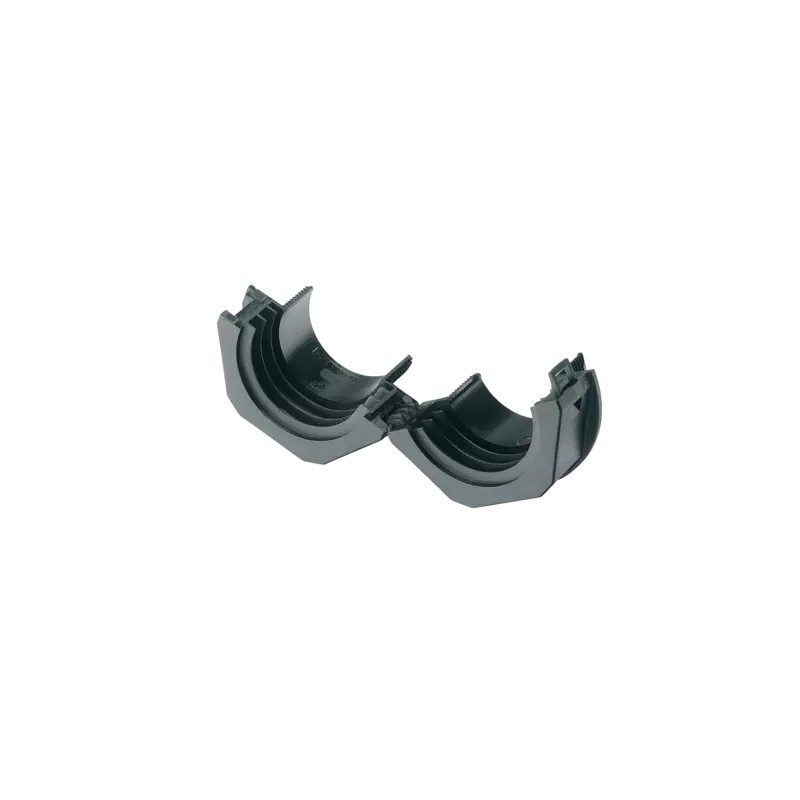

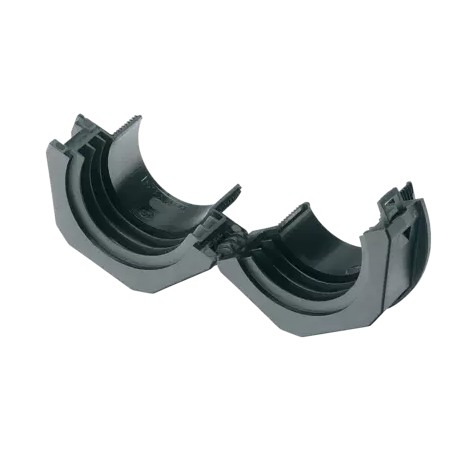

83651296 MURRPLASTIK Conduits and fitting systems Type SVT-X Splittable hose/conduit fitting
83651296
MURRPLASTIK
25
Conduits and fitting systems Type SVT-X Splittable hose/conduit fitting
SVT-X M50x1,5/36, sw
Type SVT-X
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The SVT-X split conduit fitting is made of specially modified polyamide 6. The material is self-extinguishing, and halogen, phosphor and cadmium-free.
The fittings are used when cable protection conduits fitted with pre-assembled cables need to be fixed or cable protection conduits need to be retrofitted. The SVT-X is ideal for connecting to our Murrflex cable protection conduits with high corrugation.
Particular benefits of the SVT-X conduit fitting include:
Subsequent installation or repairs
Perfect for use with the GMT split lock nut
Very good system tear-out strength
Compact design
Easy assembly and disassembly
Specification:
EN 45545-2 3x HL3
NFPA 130: ASTM E 162, ASTM E 662
Halogen-free
-40°C – 110°C, short term 140°C
acc. to UL94 V0
IP 50
EU railway approval
CURUS approval
| Type | Order No. | Colour | Connecting thread | LW mm | EH mm | GL mm | SW 1 / 2 mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
Splittable conduit fitting | ||||||||||
| SVT-X M25x1.5/21 | 83651284 | Black | M25x1,5 | 21 | 20 | 15 | 36 / | 50 | ||
| SVT-X M32x1.5/21 | 83651286 | Black | M32x1,5 | 27 | 20 | 15 | 36 / | 50 | ||
| SVT-X M32x1.5/29 | 83651288 | Black | M32x1,5 | 27 | 20 | 15 | 46 / | 25 | ||
| SVT-X M32x1.5/36 | 83651290 | Black | M32x1,5 | 27 | 20 | 15 | 55 / | 25 | ||
| SVT-X M40x1.5/29 | 83651292 | Black | M40x1,5 | 35 | 20 | 15 | 46 / | 25 | ||
| SVT-X M40x1.5/36 | 83651294 | Black | M40x1,5 | 35 | 20 | 15 | 55 / | 25 | ||
| SVT-X M50x1.5/36 | 83651296 | Black | M50x1,5 | 44 | 20 | 20 | 55 / | 25 | ||
| SVT-X M50x1.5/48 | 83651298 | Black | M50x1,5 | 44 | 25 | 20 | 65 / | 10 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83651296 83651296 EN_83651284.pdf | 986 Kbytes |
|
