83621858 MURRPLASTIK Conduits and fitting systems Type UHE
83621858
MURRPLASTIK
100
Conduits and fitting systems Type UHE
UHE P21 Soporte universal, sw
Typ UHE
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

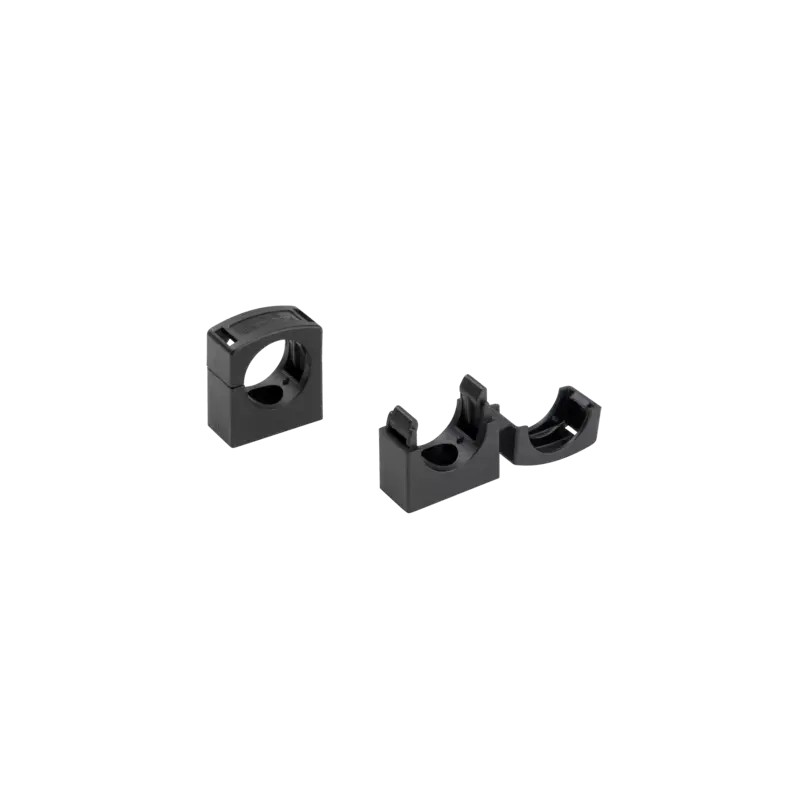

▲The UHE holder is a one-piece corrugated pipe holder in which the lid is connected to the holder by a film hinge. It is manufactured from a specially modified Polyamide. The material is halogen, phosphor and cadmium-free. The holder is used to fix cable protection conduits to equipment and machinery.
The UHE holder features the following advantages:
Quick assembly thanks to single-hole fixing
Protective conduits only need to be snapped on, which makes them excellent for overhead installations.
Optimum connection of conduit to holder thanks to double webs of holder
Optimised axial strain relief of the corrugated conduit achieved with integrated double webs
Highest degree of retention power.
Suitable for all Murrflex corrugated conduit profiles.
Specification:
EN 45545-2 3x HL3
ECE 324 R 118 Annex 6+8
Halogen-free
-40°C – 110°C, short term 140°C
acc. to UL94 V0
EU railway approval
CURUS approval
| Type | Order No. | Colour | G Suitable for | A mm | B mm | C mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| UHE P07 | 83621850 | Black | M4 | 17 | 21.5 | 15 | 100 | ||
| UHE P09 | 83621852 | Black | M5 | 20.5 | 24.5 | 15 | 100 | ||
| UHE P11 | 83621854 | Black | M5 | 24 | 27 | 15 | 100 | ||
| UHE P16 | 83621856 | Black | M6 | 30 | 33 | 15 | 100 | ||
| UHE P21 | 83621858 | Black | M6 | 38.5 | 42 | 15 | 100 | ||
| UHE P29 | 83621860 | Black | M6 | 45.5 | 48 | 15 | 50 | ||
| UHE P36 | 83621862 | Black | M6 | 55.5 | 56 | 15 | 50 | ||
| UHE P48 | 83621864 | Black | M6 | 67.5 | 68 | 15 | 50 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83621858 83621858 EN_83621850.pdf | 837 Kbytes |
|
