MURRPLASTIKCorrugated pipes and fittings83621854 MURRPLASTIK Conduits and fitting systems Type UHE
MURRPLASTIK 83621854 83621854 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

83621854 MURRPLASTIK Conduits and fitting systems Type UHE

Reference: 83621854

Manufacturer: MURRPLASTIK

Description:

Conduits and fitting systems Type UHE
UHE P11 Soporte universal, sw
Typ UHE

Categories:

  • MURRPLASTIK > Corrugated pipes and fittings

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 99,55 €

Unit Price: 0,9955 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

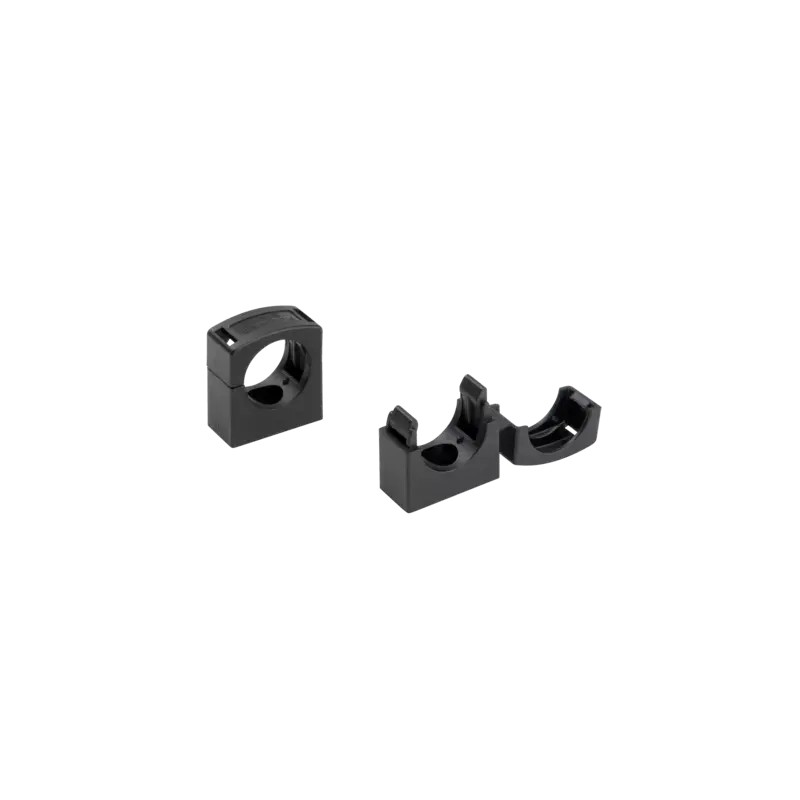

The UHE holder is a one-piece corrugated pipe holder in which the lid is connected to the holder by a film hinge. It is manufactured from a specially modified Polyamide. The material is halogen, phosphor and cadmium-free. The holder is used to fix cable protection conduits to equipment and machinery.

The UHE holder features the following advantages:

Quick assembly thanks to single-hole fixing

Protective conduits only need to be snapped on, which makes them excellent for overhead installations.

Optimum connection of conduit to holder thanks to double webs of holder

Optimised axial strain relief of the corrugated conduit achieved with integrated double webs

Highest degree of retention power.

Suitable for all Murrflex corrugated conduit profiles.

Specification:

EN 45545-2 3x HL3

ECE 324 R 118 Annex 6+8

Halogen-free

-40°C – 110°C, short term 140°C

acc. to UL94 V0

EU railway approval

CURUS approval

TypeOrder No.ColourG Suitable forA mmB mmC mmMOQ qty.
UHE P0783621850BlackM41721.515100
UHE P0983621852BlackM520.524.515100
UHE P1183621854BlackM5242715100
UHE P1683621856BlackM6303315100
UHE P2183621858BlackM638.54215100
UHE P2983621860BlackM645.5481550
UHE P3683621862BlackM655.5561550
UHE P4883621864BlackM667.5681550

DATASHEET - PDF

Title
Size
Type
83621854 83621854 EN_83621850.pdf
837 Kbytes
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN
11 Mbytes
