83621812 MURRPLASTIK Conduits and fitting systems Type UHE
83621812
MURRPLASTIK
100
Conduits and fitting systems Type UHE
UHE P09 Soporte universal, gr
Typ UHE
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

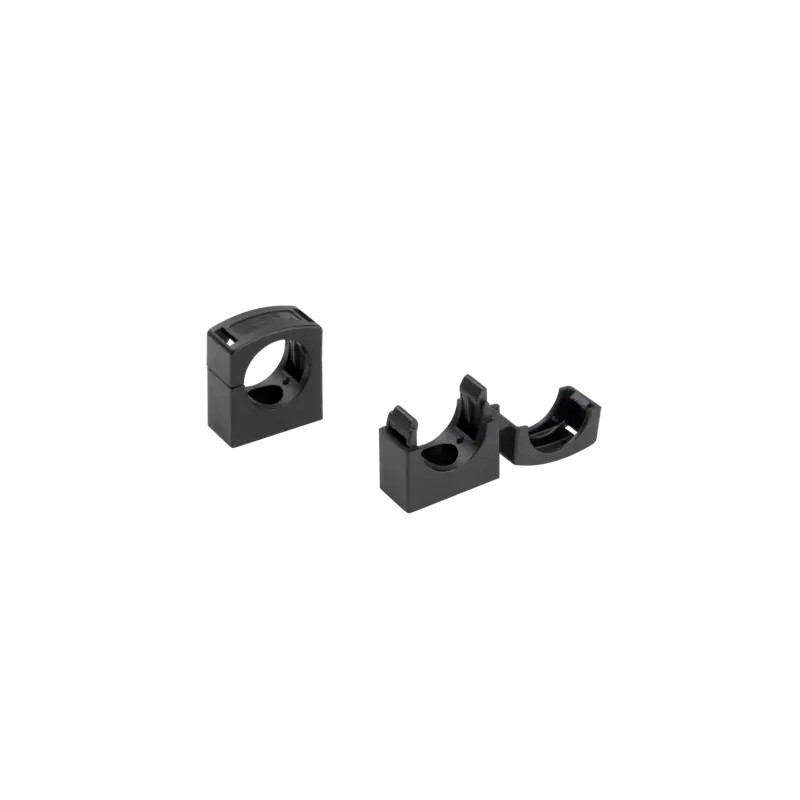

▲The UHE holder is a one-piece corrugated conduit holder, featuring a cover attached to the holder with an integral hinge. It is manufactured from a specially modified Polyamide. The material is halogen, phosphor and cadmium-free. The holder is used to fix cable protection conduits to equipment and machinery.
The UHE holder features the following advantages:
Quick assembly thanks to single-hole fixing
Protective conduits only need to be snapped on, which makes them excellent for overhead installations.
Optimum connection of conduit to holder thanks to double webs of holder
Optimised axial strain relief of the corrugated conduit achieved with integrated double webs
Highest degree of retention power.
Suitable for all Murrflex corrugated conduit profiles.
Specification:
EN 45545-2 3x HL3
NFPA 130: ASTM E 162, ASTM E 662
Halogen-free
-40°C – 110°C, transient / short term 140°C
acc. to UL94 V0
EU railway approval
| Type | Order No. | Colour | A mm | B mm | C mm | J mm | Pack qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| UHE P07 | 83621850 | Black | 17 | 21.5 | 15 | 7.5 | 100 | ||
| UHE P09 | 83621852 | Black | 20.5 | 24.5 | 15 | 9 | 100 | ||
| UHE P11 | 83621854 | Black | 24 | 27 | 15 | 9 | 100 | ||
| UHE P16 | 83621856 | Black | 30 | 33 | 15 | 10 | 100 | ||
| UHE P21 | 83621858 | Black | 38.5 | 42 | 15 | 10 | 100 | ||
| UHE P29 | 83621860 | Black | 45.5 | 48 | 15 | 10 | 50 | ||
| UHE P36 | 83621862 | Black | 55.5 | 56 | 15 | 10 | 50 | ||
| UHE P48 | 83621864 | Black | 67.5 | 68 | 15 | 10 | 50 | ||
| UHE P07 | 83621810 | Grey | 17 | 21.5 | 15 | 7.5 | 100 | ||
| UHE P09 | 83621812 | Grey | 20.5 | 24.5 | 15 | 9 | 100 | ||
| UHE P11 | 83621814 | Grey | 24 | 27 | 15 | 9 | 100 | ||
| UHE P16 | 83621816 | Grey | 30 | 33 | 15 | 10 | 100 | ||
| UHE P21 | 83621818 | Grey | 38.5 | 42 | 15 | 10 | 100 | ||
| UHE P29 | 83621820 | Grey | 45.5 | 48 | 15 | 10 | 50 | ||
| UHE P36 | 83621822 | Grey | 55.5 | 56 | 15 | 10 | 50 | ||
| UHE P48 | 83621824 | Grey | 67.5 | 68 | 15 | 10 | 50 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83621812 83621812 83621810_Data_sheet_EN.pdf | 842 Kbytes |
|
