83601057 MURRPLASTIK Conduits and fitting systems Type MSV (plug-in fitting) Pg plastic threading
83601057
MURRPLASTIK
50
Conduits and fitting systems Type MSV (plug-in fitting) Pg plastic threading

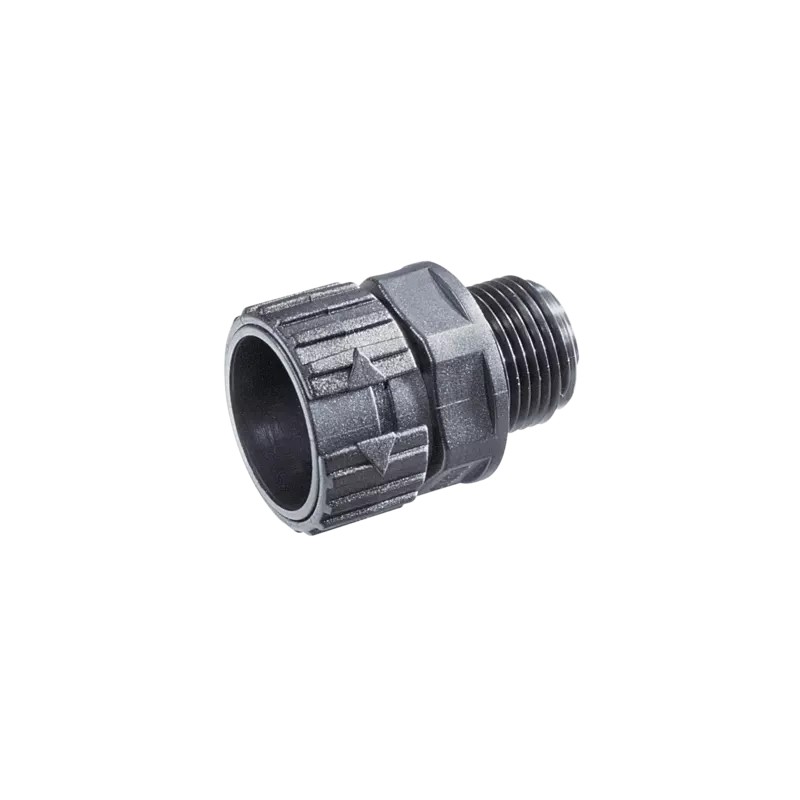

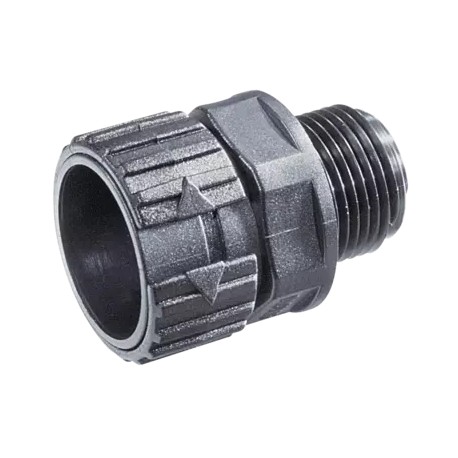

MSV PG 16/09 m-fix, sw
Type MSV (plug-in fitting)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The MSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.
The affordable MSV conduit fittings feature the following advantages:
No parts can get lost, delivered completely assembled
Cost reduction through simple assembly work, insert conduit and done
Simple opening mechanism
Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring
Specification:
EN 45545-2 3x HL3
NFPA 130: ASTM E 162, ASTM E 662
ECE 324 R 118 Annex 6+8
Halogen-free
-40°C – 110°C, short term 140°C
acc. to UL94 V0
IP 54IP 65
EU railway approval
CURUS approval
| Type | Order No. | Colour | Connecting thread | Suitable for Murrflex | EH mm | GL mm | LW mm | SW 1 mm | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Metric thread | |||||||||||
| MSV-M12x1,5/7 | 83602450 | Black | M12x1,5 | M10/P07 | 19 | 13 | 8 | 16 | 50 | ||
| MSV-M12x1,5/9 | 83602452 | Black | M12x1,5 | M12/P09 | 19 | 13 | 8 | 18 | 50 | ||
| MSV-M12x1,5/11 | 83602456 | Black | M12x1,5 | M16/P11 | 23 | 13 | 8 | 21 | 50 | ||
| MSV-M16x1,5/9 | 83602454 | Black | M16x1,5 | M12/P09 | 19 | 13 | 12 | 18 | 50 | ||
| MSV-M16x1,5/11 | 83602458 | Black | M16x1,5 | M16/P11 | 23 | 13 | 12 | 21 | 50 | ||
| MSV-M20x1,5/11 | 83602459 | Black | M20x1,5 | M16/P11 | 23 | 14 | 13.5 | 21 | 50 | ||
| MSV-M20x1,5/16 | 83602460 | Black | M20x1,5 | M20/P16(S) | 27 | 14 | 15 | 27 | 50 | ||
| MSV-M25x1,5/16 | 83602461 | Black | M25x1,5 | M20/P16(S) | 26 | 14 | 19 | 27 | 50 | ||
| MSV-M25x1,5/21 | 83602462 | Black | M25x1,5 | M25/P21(S) | 32 | 14 | 21 | 36 | 50 | ||
| MSV-M32x1,5/21 | 83602463 | Black | M32x1,5 | M25/P21(S) | 32 | 14 | 26 | 36 | 50 | ||
| MSV-M32x1,5/29 | 83602464 | Black | M32x1,5 | M32/P29(S) | 34 | 14 | 27 | 40 | 25 | ||
| MSV-M40x1,5/29 | 83602465 | Black | M40x1,5 | M32/P29(S) | 34 | 14 | 32 | 40 | 25 | ||
| MSV-M40x1,5/36 | 83602466 | Black | M40x1,5 | M40/P36(S) | 38 | 16 | 34 | 49 | 10 | ||
| MSV-M50x1,5/36 | 83602467 | Black | M50x1,5 | M40/P36(S) | 37.5 | 16 | 40 | 49 | 10 | ||
| MSV-M50x1,5/48 | 83602468 | Black | M50x1,5 | M50/P48(S) | 39 | 16 | 44 | 60 | 10 | ||
| MSV-M63x1,5/48 | 83602469 | Black | M63x1,5 | M50/P48(S) | 38.5 | 16 | 52 | 60 | 10 | ||
| MSV-M12x1,5/7 | 83602410 | Grey | M12x1,5 | M10/P07 | 19 | 13 | 8 | 16 | 50 | ||
| MSV-M12x1,5/9 | 83602412 | Grey | M12x1,5 | M12/P09 | 19 | 13 | 8 | 18 | 50 | ||
| MSV-M12x1,5/11 | 83602416 | Grey | M12x1,5 | M16/P11 | 23 | 13 | 8 | 21 | 50 | ||
| MSV-M16x1,5/9 | 83602414 | Grey | M16x1,5 | M12/P09 | 19 | 13 | 12 | 18 | 50 | ||
| MSV-M16x1,5/11 | 83602418 | Grey | M16x1,5 | M16/P11 | 23 | 13 | 12 | 21 | 50 | ||
| MSV-M20x1,5/11 | 83602419 | Grey | M20x1,5 | M16/P11 | 23 | 14 | 13.5 | 21 | 50 | ||
| MSV-M20x1,5/16 | 83602420 | Grey | M20x1,5 | M20/P16(S) | 27 | 14 | 15 | 27 | 50 | ||
| MSV-M25x1,5/16 | 83602421 | Grey | M25x1,5 | M20/P16(S) | 26 | 14 | 19 | 27 | 50 | ||
| MSV-M25x1,5/21 | 83602422 | Grey | M25x1,5 | M25/P21(S) | 32 | 14 | 21 | 36 | 50 | ||
| MSV-M32x1,5/21 | 83602423 | Grey | M32x1,5 | M25/P21(S) | 32 | 14 | 26 | 36 | 50 | ||
| MSV-M32x1,5/29 | 83602424 | Grey | M32x1,5 | M32/P29(S) | 34 | 14 | 27 | 40 | 25 | ||
| MSV-M40x1,5/29 | 83602425 | Grey | M40x1,5 | M32/P29(S) | 34 | 14 | 32 | 40 | 25 | ||
| MSV-M40x1,5/36 | 83602426 | Grey | M40x1,5 | M40/P36(S) | 38 | 16 | 34 | 49 | 10 | ||
| MSV-M50x1,5/36 | 83602427 | Grey | M50x1,5 | M40/P36(S) | 37.5 | 16 | 40 | 49 | 10 | ||
| MSV-M50x1,5/48 | 83602428 | Grey | M50x1,5 | M50/P48(S) | 39 | 16 | 44 | 60 | 10 | ||
| MSV-M63x1,5/48 | 83602429 | Grey | M63x1,5 | M50/P48(S) | 38.5 | 16 | 52 | 60 | 10 | ||
Pg plastic threading | |||||||||||
| MSV-Pg 07 | 83601050 | Black | Pg 07 | M10/P07 | 19 | 9 | 8 | 16 | 50 | ||
| MSV-Pg 09 | 83601052 | Black | Pg 09 | M12/P09 | 19 | 10 | 9.6 | 18 | 50 | ||
| MSV-Pg 11 | 83601054 | Black | Pg 11 | M16/P11 | 23 | 10 | 13.8 | 21 | 50 | ||
| MSV-Pg 13,5/11 | 83601055 | Black | Pg 13.5 | M16/P11 | 23 | 13 | 12 | 21 | 50 | ||
| MSV-Pg 13,5/16 | 83601056 | Black | Pg 13.5 | M20/P16(S) | 27 | 13 | 15.5 | 27 | 50 | ||
| MSV-Pg 16/09 | 83601057 | Black | Pg 16 | M12/P09 | 19 | 13 | 27 | 27 | 50 | ||
| MSV-Pg 16 | 83601058 | Black | Pg 16 | M20/P16(S) | 27 | 13 | 17 | 27 | 50 | ||
| MSV-Pg 21/16 | 83601059 | Black | Pg 21 | M20/P16 | 26 | 14 | 36 | 36 | 50 | ||
| MSV-Pg 21 | 83601060 | Black | Pg 21 | M25/P21(S) | 32 | 14 | 23 | 36 | 50 | ||
| MSV-Pg 29 | 83601062 | Black | Pg 29 | M32/P29(S) | 35 | 14 | 28 | 40 | 25 | ||
| MSV-Pg 36 | 83601064 | Black | Pg 36 | M40/P36(S) | 38 | 15 | 40 | 49 | 10 | ||
| MSV-Pg 48 | 83601066 | Black | Pg 48 | M50/P48(S) | 39 | 17 | 47 | 60 | 10 | ||
| MSV-Pg 07 | 83601010 | Grey | Pg 07 | M10/P07 | 19 | 9 | 8 | 16 | 50 | ||
| MSV-Pg 09 | 83601012 | Grey | Pg 09 | M12/P09 | 19 | 10 | 9.6 | 18 | 50 | ||
| MSV-Pg 11 | 83601014 | Grey | Pg 11 | M16/P11 | 23 | 10 | 13.8 | 21 | 50 | ||
| MSV-Pg 13,5/11 | 83601015 | Grey | Pg 13.5 | M16/P11 | 23 | 13 | 12 | 21 | 50 | ||
| MSV-Pg 13,5/16 | 83601016 | Grey | Pg 13.5 | M20/P16(S) | 27 | 13 | 15.5 | 27 | 50 | ||
| MSV-Pg 16/09 | 83601017 | Grey | Pg 16 | M12/P09 | 19 | 13 | 27 | 27 | 50 | ||
| MSV-Pg 16 | 83601018 | Grey | Pg 16 | M20/P16(S) | 27 | 13 | 17 | 27 | 50 | ||
| MSV-Pg 21/16 | 83601019 | Grey | Pg 21 | M20/P16 | 26 | 14 | 36 | 36 | 50 | ||
| MSV-Pg 21 | 83601020 | Grey | Pg 21 | M25/P21(S) | 32 | 14 | 23 | 36 | 50 | ||
| MSV-Pg 29 | 83601022 | Grey | Pg 29 | M32/P29(S) | 35 | 14 | 28 | 40 | 25 | ||
| MSV-Pg 36 | 83601024 | Grey | Pg 36 | M40/P36(S) | 38 | 15 | 40 | 49 | 10 | ||
| MSV-Pg 48 | 83601026 | Grey | Pg 48 | M50/P48(S) | 39 | 17 | 47 | 60 | 10 | ||
NPT plastic thread | |||||||||||
| MSV NPT 3/8"/11 | 83602650 | Black | 3/8" | M16/P11(S) | 32 | 8 | 12 | 21 | 50 | ||
| MSV-NPT 1/2"/16 | 83602652 | Black | 1/2" | M20/P16(S) | 27 | 14 | 15 | 27 | 50 | ||
| MSV-NPT 3/4"/21 | 83602654 | Black | 3/4" | M25/P21(S) | 32 | 14 | 20.5 | 36 | 50 | ||
| MSV-NPT 1"/29 | 83602656 | Black | 1" | M32/P29(S) | 35 | 16 | 26.5 | 40 | 25 | ||
| MSV NPT 3/8"/11 | 83602610 | Grey | 3/8" | M16/P11(S) | 32 | 8 | 12 | 21 | 50 | ||
| MSV-NPT 1/2"/16 | 83602612 | Grey | 1/2" | M20/P16(S) | 27 | 14 | 15 | 27 | 50 | ||
| MSV-NPT 3/4"/21 | 83602614 | Grey | 3/4" | M25/P21(S) | 32 | 14 | 20.5 | 36 | 50 | ||
| MSV-NPT 1"/29 | 83602616 | Grey | 1" | M32/P29(S) | 35 | 16 | 26.5 | 40 | 25 | ||
