Images are for illustrative purposes only. Please refer to data sheet for details.

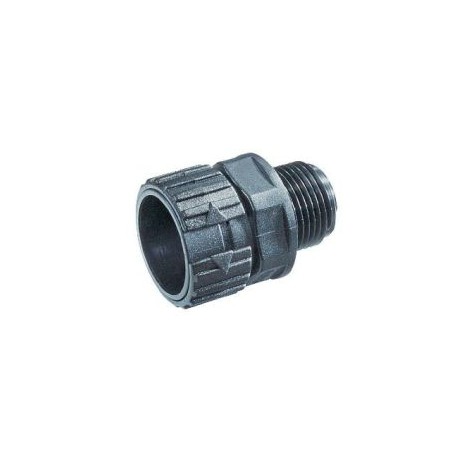

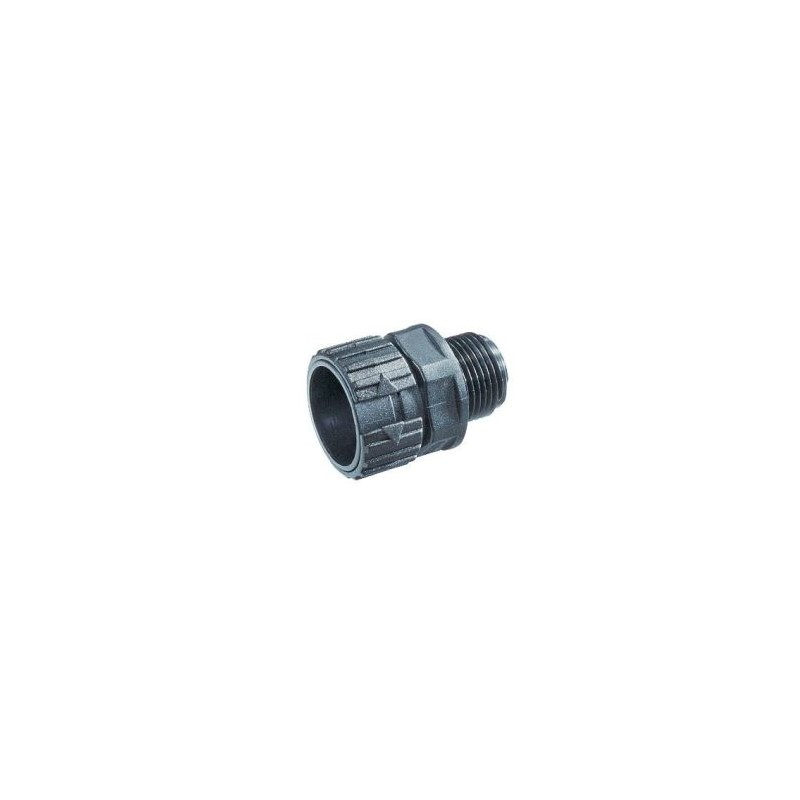

83601017 MURRPLASTIK Conduits and fitting systems Type MSV (plug-in fitting) Pg plastic threading

Name: 83601017 MURRPLASTIK Conduits and fitting systems Type MSV (plug-in fitting) Pg plastic threading
Brand: MURRPLASTIK
SKU: MUR83601017
Price: 2.23 USD
Availability: OutOfStock

Reference: 83601017

Manufacturer: MURRPLASTIK

Description:

Conduits and fitting systems Type MSV (plug-in fitting) Pg plastic threading

MSV PG 16/09 m-fix, gr

Type MSV (plug-in fitting)

Categories:

MURRPLASTIK > Corrugated pipes and fittings

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 99,56 €

Unit Price: 1,991 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

The MSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

The affordable MSV conduit fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Cost reduction through simple assembly work, insert conduit and done

Simple opening mechanism

Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring

Specification:

EN 45545-2 3x HL3

NFPA 130: ASTM E 162, ASTM E 662

ECE 324 R 118 Annex 6+8

Halogen-free

-40°C – 110°C, short term 140°C

acc. to UL94 V0

IP 54IP 65

EU railway approval

CURUS approval

	Type	Order No.	Colour	Connecting thread	Suitable for Murrflex	EH mm	GL mm	LW mm	SW 1 mm	MOQ qty.
Metric thread
	MSV-M12x1,5/7	83602450	Black	M12x1,5	M10/P07	19	13	8	16	50
	MSV-M12x1,5/9	83602452	Black	M12x1,5	M12/P09	19	13	8	18	50
	MSV-M12x1,5/11	83602456	Black	M12x1,5	M16/P11	23	13	8	21	50
	MSV-M16x1,5/9	83602454	Black	M16x1,5	M12/P09	19	13	12	18	50
	MSV-M16x1,5/11	83602458	Black	M16x1,5	M16/P11	23	13	12	21	50
	MSV-M20x1,5/11	83602459	Black	M20x1,5	M16/P11	23	14	13.5	21	50
	MSV-M20x1,5/16	83602460	Black	M20x1,5	M20/P16(S)	27	14	15	27	50
	MSV-M25x1,5/16	83602461	Black	M25x1,5	M20/P16(S)	26	14	19	27	50
	MSV-M25x1,5/21	83602462	Black	M25x1,5	M25/P21(S)	32	14	21	36	50
	MSV-M32x1,5/21	83602463	Black	M32x1,5	M25/P21(S)	32	14	26	36	50
	MSV-M32x1,5/29	83602464	Black	M32x1,5	M32/P29(S)	34	14	27	40	25
	MSV-M40x1,5/29	83602465	Black	M40x1,5	M32/P29(S)	34	14	32	40	25
	MSV-M40x1,5/36	83602466	Black	M40x1,5	M40/P36(S)	38	16	34	49	10
	MSV-M50x1,5/36	83602467	Black	M50x1,5	M40/P36(S)	37.5	16	40	49	10
	MSV-M50x1,5/48	83602468	Black	M50x1,5	M50/P48(S)	39	16	44	60	10
	MSV-M63x1,5/48	83602469	Black	M63x1,5	M50/P48(S)	38.5	16	52	60	10
	MSV-M12x1,5/7	83602410	Grey	M12x1,5	M10/P07	19	13	8	16	50
	MSV-M12x1,5/9	83602412	Grey	M12x1,5	M12/P09	19	13	8	18	50
	MSV-M12x1,5/11	83602416	Grey	M12x1,5	M16/P11	23	13	8	21	50
	MSV-M16x1,5/9	83602414	Grey	M16x1,5	M12/P09	19	13	12	18	50
	MSV-M16x1,5/11	83602418	Grey	M16x1,5	M16/P11	23	13	12	21	50
	MSV-M20x1,5/11	83602419	Grey	M20x1,5	M16/P11	23	14	13.5	21	50
	MSV-M20x1,5/16	83602420	Grey	M20x1,5	M20/P16(S)	27	14	15	27	50
	MSV-M25x1,5/16	83602421	Grey	M25x1,5	M20/P16(S)	26	14	19	27	50
	MSV-M25x1,5/21	83602422	Grey	M25x1,5	M25/P21(S)	32	14	21	36	50
	MSV-M32x1,5/21	83602423	Grey	M32x1,5	M25/P21(S)	32	14	26	36	50
	MSV-M32x1,5/29	83602424	Grey	M32x1,5	M32/P29(S)	34	14	27	40	25
	MSV-M40x1,5/29	83602425	Grey	M40x1,5	M32/P29(S)	34	14	32	40	25
	MSV-M40x1,5/36	83602426	Grey	M40x1,5	M40/P36(S)	38	16	34	49	10
	MSV-M50x1,5/36	83602427	Grey	M50x1,5	M40/P36(S)	37.5	16	40	49	10
	MSV-M50x1,5/48	83602428	Grey	M50x1,5	M50/P48(S)	39	16	44	60	10
	MSV-M63x1,5/48	83602429	Grey	M63x1,5	M50/P48(S)	38.5	16	52	60	10
Pg plastic threading
	MSV-Pg 07	83601050	Black	Pg 07	M10/P07	19	9	8	16	50
	MSV-Pg 09	83601052	Black	Pg 09	M12/P09	19	10	9.6	18	50
	MSV-Pg 11	83601054	Black	Pg 11	M16/P11	23	10	13.8	21	50
	MSV-Pg 13,5/11	83601055	Black	Pg 13.5	M16/P11	23	13	12	21	50
	MSV-Pg 13,5/16	83601056	Black	Pg 13.5	M20/P16(S)	27	13	15.5	27	50
	MSV-Pg 16/09	83601057	Black	Pg 16	M12/P09	19	13	27	27	50
	MSV-Pg 16	83601058	Black	Pg 16	M20/P16(S)	27	13	17	27	50
	MSV-Pg 21/16	83601059	Black	Pg 21	M20/P16	26	14	36	36	50
	MSV-Pg 21	83601060	Black	Pg 21	M25/P21(S)	32	14	23	36	50
	MSV-Pg 29	83601062	Black	Pg 29	M32/P29(S)	35	14	28	40	25
	MSV-Pg 36	83601064	Black	Pg 36	M40/P36(S)	38	15	40	49	10
	MSV-Pg 48	83601066	Black	Pg 48	M50/P48(S)	39	17	47	60	10
	MSV-Pg 07	83601010	Grey	Pg 07	M10/P07	19	9	8	16	50
	MSV-Pg 09	83601012	Grey	Pg 09	M12/P09	19	10	9.6	18	50
	MSV-Pg 11	83601014	Grey	Pg 11	M16/P11	23	10	13.8	21	50
	MSV-Pg 13,5/11	83601015	Grey	Pg 13.5	M16/P11	23	13	12	21	50
	MSV-Pg 13,5/16	83601016	Grey	Pg 13.5	M20/P16(S)	27	13	15.5	27	50
	MSV-Pg 16/09	83601017	Grey	Pg 16	M12/P09	19	13	27	27	50
	MSV-Pg 16	83601018	Grey	Pg 16	M20/P16(S)	27	13	17	27	50
	MSV-Pg 21/16	83601019	Grey	Pg 21	M20/P16	26	14	36	36	50
	MSV-Pg 21	83601020	Grey	Pg 21	M25/P21(S)	32	14	23	36	50
	MSV-Pg 29	83601022	Grey	Pg 29	M32/P29(S)	35	14	28	40	25
	MSV-Pg 36	83601024	Grey	Pg 36	M40/P36(S)	38	15	40	49	10
	MSV-Pg 48	83601026	Grey	Pg 48	M50/P48(S)	39	17	47	60	10
NPT plastic thread
	MSV NPT 3/8"/11	83602650	Black	3/8"	M16/P11(S)	32	8	12	21	50
	MSV-NPT 1/2"/16	83602652	Black	1/2"	M20/P16(S)	27	14	15	27	50
	MSV-NPT 3/4"/21	83602654	Black	3/4"	M25/P21(S)	32	14	20.5	36	50
	MSV-NPT 1"/29	83602656	Black	1"	M32/P29(S)	35	16	26.5	40	25
	MSV NPT 3/8"/11	83602610	Grey	3/8"	M16/P11(S)	32	8	12	21	50
	MSV-NPT 1/2"/16	83602612	Grey	1/2"	M20/P16(S)	27	14	15	27	50
	MSV-NPT 3/4"/21	83602614	Grey	3/4"	M25/P21(S)	32	14	20.5	36	50
	MSV-NPT 1"/29	83602616	Grey	1"	M32/P29(S)	35	16	26.5	40	25
