8358228400 MURRPLASTIK Conduits and fitting systems Type KV-ME (multi-insert)
Reference: 8358228400
Manufacturer: MURRPLASTIK
Description:

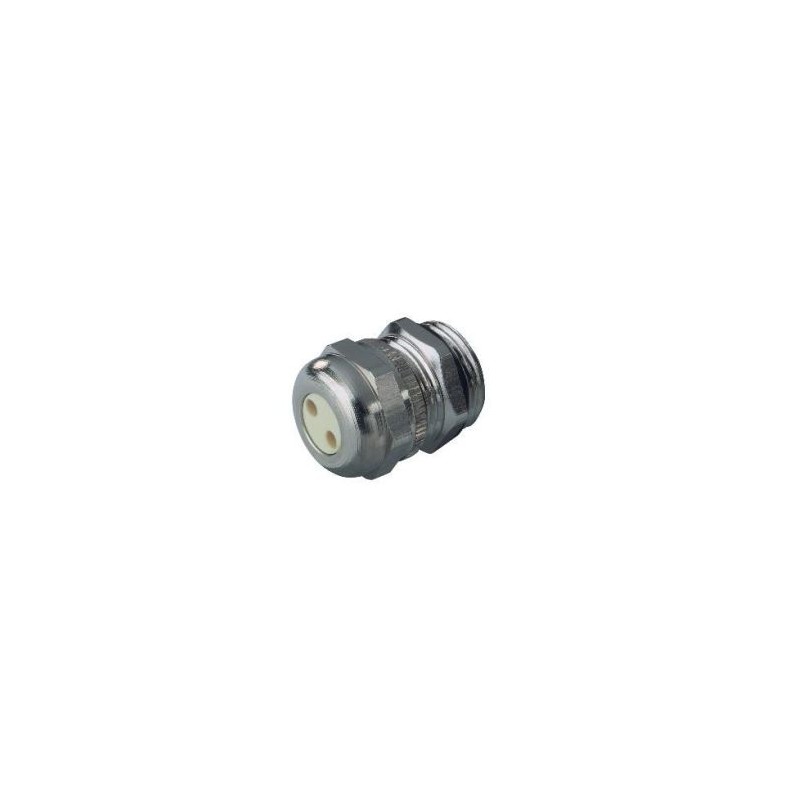

Conduits and fitting systems Type KV-ME (multi-insert)
KV-ME M40/PG36 m-tec Blind Multieinsatz
Type KV-ME (multi-insert)
Categories:
- MURRPLASTIK > Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
- More Info
- Reviews
MORE INFO
The KV-ME multi-insert can be used both in WKK cable fittings and in WKM cable fittings.
The KV-ME multi-insert can be used to route several cables through one fitting. The fitted seal insert in the cable fitting is simply swapped for the KV-ME multi-insert during assembly. Please note that the cable diameter may be up to 20% less than the diameter of the hole, but must not undershoot the hole diameter by less than 1 mm.
The KV-ME multi-inserts feature the following advantages:
Variable
More cables through one fitting
High protection class
NOT suitable for the m-seal cable fittings.
-40°C – 100°C, short term 120°C
IP 65
| Type | Order No. | No. Openings | Diameter mm | Suitable for metric | Suitable for Pg | Suitable for NPT | MOQ qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| KV-ME M16/Pg09-4x1,4 | 8358221000 | 4 | 1.4 | M16x1,5 | Pg 09 | 3/8" | 50 | ||
| KV-ME M16/Pg09-2x3 | 8358221200 | 2 | 3 | M16x1,5 | Pg 09 | 3/8" | 50 | ||
| KV-ME M20/Pg13.5-2x5 | 8358222000 | 2 | 5 | M20x1,5 | Pg 13.5 | 1/2" | 50 | ||
| KV-ME M20/Pg13.5-3x2 | 8358222200 | 3 | 2 | M20x1,5 | Pg 13.5 | 1/2" | 50 | ||
| KV-ME M20/Pg13.5-3x4 | 8358222400 | 3 | 4 | M20x1,5 | Pg 13.5 | 1/2" | 50 | ||
| KV-ME M20/Pg13.5-6x3 | 8358222600 | 6 | 3 | M20x1,5 | Pg 13.5 | 1/2" | 50 | ||
| KV-ME Pg11-2x3 | 8358221400 | 2 | 3 | Pg 11 | 50 | ||||
| KV-ME Pg11-2x4 | 8358221600 | 2 | 4 | Pg 11 | 50 | ||||
| KV-ME Pg11-3x3 | 8358221800 | 3 | 3 | Pg 11 | 50 | ||||
| KV-ME Pg16-2x6 | 8358222800 | 2 | 6 | Pg 16 | 50 | ||||
| KV-ME Pg16-3x3 | 8358223000 | 3 | 3 | Pg 16 | 50 | ||||
| KV-ME Pg16-3x4 | 8358223200 | 3 | 4 | Pg 16 | 50 | ||||
| KV-ME Pg16-3x5.6 | 8358223400 | 3 | 5.6 | Pg 16 | 50 | ||||
| KV-ME Pg16-4x4 | 8358223600 | 4 | 4 | Pg 16 | 50 | ||||
| KV-ME Pg16-5x4 | 8358223800 | 5 | 4 | Pg 16 | 50 | ||||
| KV-ME Pg16-6x4 | 8358224000 | 6 | 4 | Pg 16 | 50 | ||||
| KV-ME M25/Pg21-2x8 | 8358224200 | 2 | 8 | M25x1,5 | Pg 21 | 3/4" | 50 | ||
| KV-ME M25/Pg21-3x7 | 8358224400 | 3 | 7 | M25x1,5 | Pg 21 | 3/4" | 50 | ||
| KV-ME M25/Pg21-4x6 | 8358224600 | 4 | 6 | M25x1,5 | Pg 21 | 3/4" | 50 | ||
| KV-ME M32/Pg29-6x6.5 | 8358224800 | 6 | 6.5 | M32x1,5 | Pg 29 | 50 | |||
| KV-ME M32/Pg29-4x9 | 8358225000 | 4 | 9 | M32x1,5 | Pg 29 | 25 | |||
| KV-ME M40/Pg36 blind | 8358228400 | M40x1,5 | Pg 36 | 1 1/2" | 25 |
