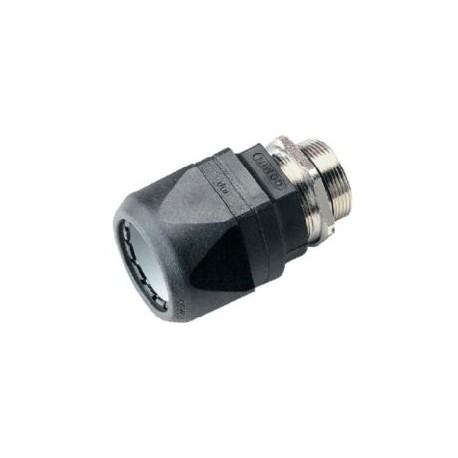

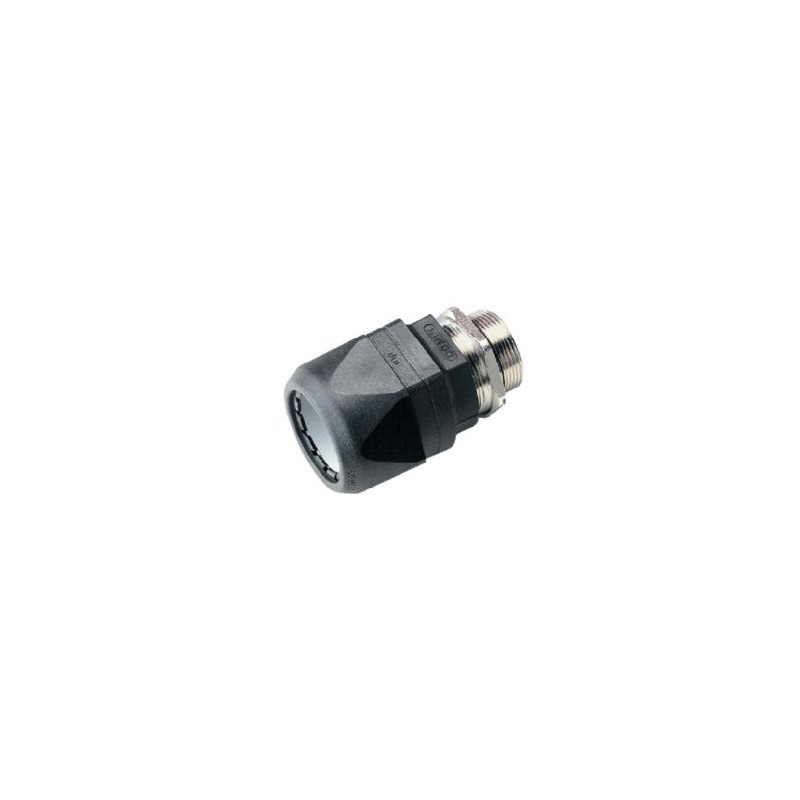

83551663 MURRPLASTIK Conduits and fitting systems Type CVG EMC (conduit and cable fitting, metal thread) Met..
83551663
MURRPLASTIK
10
Conduits and fitting systems Type CVG EMC (conduit and cable fitting, metal thread) Metric metal thread / EMC version with extended thread
CVG/L M50-EMV m-top, rosca alargada, sw
Type CVG EMV (conduit and cable fitting, metal thread)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The CVG EMV combined conduit and cable fittings are made of specially modified polyamide 6, thermoplastic elastomer and nickel-plated brass. The materials are halogen, phosphor and cadmium-free.
The CVG EMV combined conduit and cable fittings feature the following advantages:
Quick assembly, insert conduit, screw upper part tight, done
No parts can get lost, delivered completely assembled
Resistant to vibration due to lockable cap nut
Clamping along entire circumference, ensuring maximum tensile strength.
Optimum strain relief for the cable
High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529
Specification:
EN 45545-2 3x HL3
NFPA 130: ASTM E 162, ASTM E 662
Halogen-free
-40°C – 110°C, short term 140°C
acc. to UL94 V0
IP 68
EU railway approval
CSA approval
CURUS approval
| Type | Order No. | Colour | Connecting thread | Suitable for Murrflex | EH mm | GL mm | Clamping range (LW) mm | SW 1 / 2 / 3 mm | MOQ qty. | Fussnote Variante 2 (unter Var) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metric metal thread / EMC version | ||||||||||||
| CVG M12 EMV | 83551050 | Black | M12x1,5 | M12/P09 | 39 | 6.5 | 3 – 6.5 | 14 / 20 / 20 | 50 | |||
| CVG M16 EMV | 83551052 | Black | M16x1,5 | M16/P11 | 45 | 6 | 5 – 8 | 20 / 25 / 25 | 50 | |||
| CVG M20 EMV | 83551056 | Black | M20x1,5 | M20/P16 | 55 | 6 | 10 – 14 | 24 / 33 / 33 | 50 | |||
| CVG M25 EMV | 83551058 | Black | M25x1,5 | M25/P21 | 57 | 7 | 13 – 18 | 30 / 42 / 40 | 50 | |||
| CVG M32 EMV | 83551060 | Black | M32x1,5 | M32/P29 | 69 | 8 | 18 – 25 | 40 / 50 / 50 | 25 | |||
| CVG M40 EMV | 83551062 | Black | M40x1,5 | M40/P36 | 84 | 8 | 22 – 32 | 50 / 60 / 60 | 25 | |||
| CVG M50-EMV | 83551063 | Black | M50x1,5 | M50/P48 | 94 | 10 | 37 – 44 | 68 / 75 / 75 | 10 | |||
| CVG M63 EMV | 83551064 | Black | M63x1,5 | M50/P48 | 94 | 10 | 37 – 44 | 68 / 75 / 75 | 10 | |||
Metric metal thread / EMC version with extended thread | ||||||||||||
| CVG/L M12 EMV | 83551650 | Black | M12x1,5 | M12/P09 | 39 | 10 | 3 – 6.5 | 14 / 20 / 20 | 50 | |||
| CVG/L M16 EMV | 83551652 | Black | M16x1,5 | M16/P11 | 45 | 10 | 5 – 10 | 20 / 25 / 25 | 50 | |||
| CVG/L M20 EMV | 83551656 | Black | M20x1,5 | M20/P16 | 55 | 10 | 10 – 14 | 24 / 33 / 33 | 50 | |||
| CVG/L M25 EMV | 83551658 | Black | M25x1,5 | M25/P21 | 57 | 12 | 13 – 18 | 33 / 41 / 40 | 50 | |||
| CVG/L M32 EMV | 83551660 | Black | M32x1,5 | M32/P29 | 69 | 12 | 18 – 25 | 40 / 50 / 50 | 25 | |||
| CVG/L M40 EMV | 83551662 | Black | M40x1,5 | M40/P36 | 84 | 15 | 22 – 32 | 50 / 60 / 60 | 25 | No stock goods, delivery time and minimum order quantities upon request | ||
| CVG/L M50-EMV | 83551663 | Black | M50x1,5 | M50/P48 | 94 | 15 | 37 – 44 | 68 / 75 / 75 | 10 | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83551663 83551663 EN_83551063.pdf | 1 Mbytes |
|
