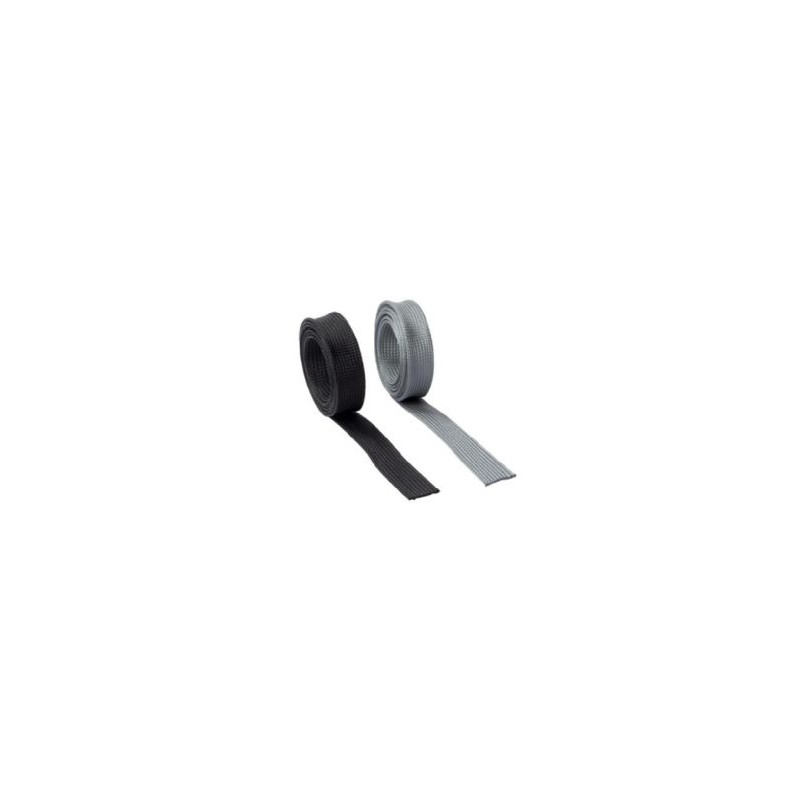

83342008 MURRPLASTIK Conduits and fitting systems Type GF-P (braided conduit)
83342008
MURRPLASTIK
200
Conduits and fitting systems Type GF-P (braided conduit)
GF-P-03 sw
Type GF-P (braided conduit)
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The GF-P braided conduits are made of specially modified polyester. With this material and the special braiding, the conduit is extremely durable and elastic in both the radial and axial directions.
It can be used to bundle and protect a large number of cables and individual wires of all types. The elastic braiding means that configuration of the conduit can be very variable.
Additional advantages of the GF-P braided conduit include:
Very good mechanical and thermal resistance
Good chemical resistance
Very low levels of smoke gas
Very high abrasion resistance
Specification:
EN 45545-2 3x HL3
Halogen-free
-55°C – 150°C, short term 175°C
acc. to UL94 V2
EU railway approval
| Type | Order No. | Colour | Nominal widths NW | Size range mm | Surface covering in % | Weight kg/100m | MOQ m | ||
|---|---|---|---|---|---|---|---|---|---|
| GF-P 3 | 83342008 | Black | 4 | 3 / 10 | 93 | 0.41 | 500 | ||
| GF-P 4 | 83342010 | Black | 4 | 4 / 10 | 93 | 0.58 | 200 | ||
| GF-P 6 | 83342012 | Black | 6 | 4 / 10.5 | 86 | 0.7 | 200 | ||
| GF-P 8 | 83342014 | Black | 8 | 6 / 11 | 87 | 0.74 | 200 | ||
| GF-P 10 | 83342016 | Black | 10 | 8 / 14 | 77 | 0.91 | 200 | ||
| GF-P 12 | 83342018 | Black | 12 | 10 / 16 | 74 | 0.94 | 200 | ||
| GF-P 16 | 83342020 | Black | 16 | 14 / 24 | 80 | 1.5 | 100 | ||
| GF-P 20 | 83342022 | Black | 20 | 18 / 25 | 75 | 1.75 | 100 | ||
| GF-P 22 | 83342024 | Black | 22 | 18 / 32 | 84 | 1.9 | 100 | ||
| GF-P 30 | 83342026 | Black | 30 | 20 / 38 | 78 | 2.65 | 100 | ||
| GF-P 40 | 83342028 | Black | 40 | 28 / 42 | 77 | 3.18 | 50 | ||
| GF-P 50 | 83342030 | Black | 50 | 35 / 80 | 79 | 3.88 | 50 | ||
| GF-P 70 | 83342032 | Black | 70 | 45 / 87 | 87 | 5.94 | 50 | ||
| GF-P 4 | 83342050 | Grey | 4 | 4 / 10 | 93 | 0.58 | 200 | ||
| GF-P 6 | 83342052 | Grey | 6 | 4 / 10.5 | 86 | 0.7 | 200 | ||
| GF-P 8 | 83342054 | Grey | 8 | 6 / 11 | 87 | 0.74 | 200 | ||
| GF-P 10 | 83342056 | Grey | 10 | 8 / 14 | 77 | 0.91 | 200 | ||
| GF-P 12 | 83342058 | Grey | 12 | 10 / 16 | 74 | 0.94 | 200 | ||
| GF-P 16 | 83342060 | Grey | 16 | 14 / 24 | 80 | 1.5 | 100 | ||
| GF-P 20 | 83342062 | Grey | 20 | 18 / 25 | 75 | 1.75 | 100 | ||
| GF-P 22 | 83342064 | Grey | 22 | 18 / 32 | 84 | 1.9 | 100 | ||
| GF-P 30 | 83342066 | Grey | 30 | 20 / 38 | 78 | 2.65 | 100 | ||
| GF-P 40 | 83342068 | Grey | 40 | 28 / 42 | 77 | 3.18 | 50 | ||
| GF-P 50 | 83342070 | Grey | 50 | 35 / 80 | 79 | 3.88 | 50 | ||
| GF-P 70 | 83342072 | Grey | 70 | 45 / 87 | 87 | 5.94 | 50 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83342008 83342008 EN_83342008.pdf | 757 Kbytes |
|
