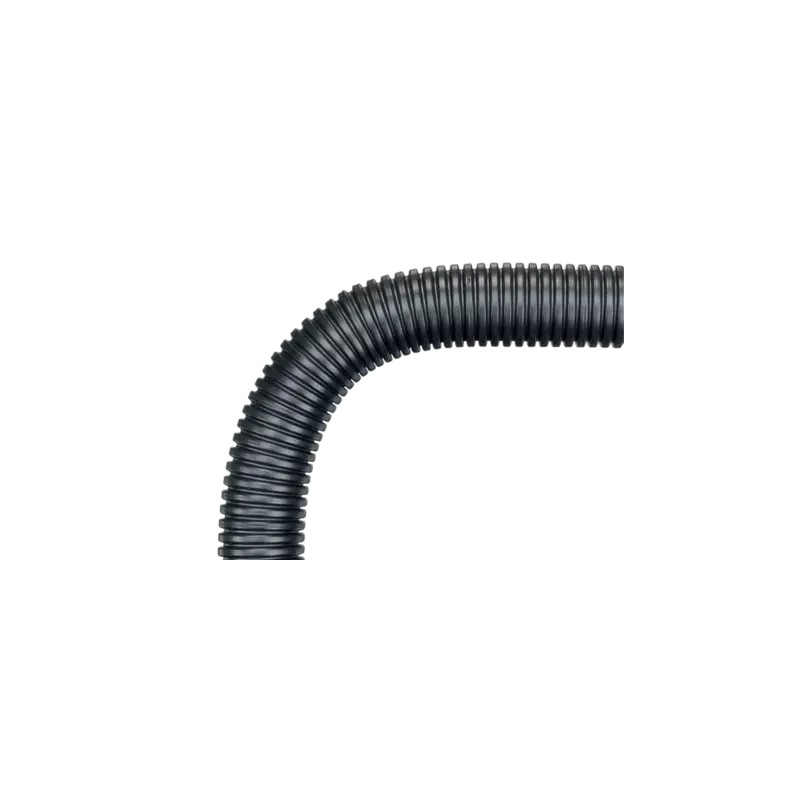

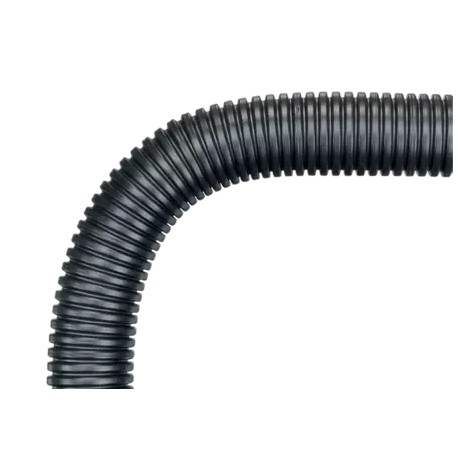

83181870 MURRPLASTIK Conduits and fitting systems Type EW-PRT Standard corrugation
83181870
MURRPLASTIK
25
Conduits and fitting systems Type EW-PRT Standard corrugation
EW-PRT M50/P48 Murrflex, sw
Type EW-PRT
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The EW-PRT cable protection conduits are made of specially modified polyamide 12. The material is halogen, phosphor and cadmium-free.
The EW-PRT cable protection conduits feature excellent crush resistance, self-extinguish very well and produce very low levels of smoke gas.
For static and dynamic applications involving medium to high mechanical loads.
This product’s excellent fire safety properties make it suitable for use in both railway technology and exposed layouts in building service applications.
Specification
EN 45545-2 3x HL3
GOST R 53313-2009
Halogen-free
UV-resistant
-40°C – 120°C, short term 140°C
acc. to UL94 V2
EU railway approval
CURUS approval
| Type | Order No. | Colour | A Ø mm | B Ø mm | R stat. mm | R dyn. mm | Weight kg/100m | MOQ m | ||
|---|---|---|---|---|---|---|---|---|---|---|
Standard corrugation | ||||||||||
| EW-PRT-06 | 83181850 | Black | 6.7 | 10 | 20 | 68 | 2.0 | 50 | ||
| EW-PRT-M10/P07 | 83181852 | Black | 8.4 | 11.6 | 22 | 75 | 2.8 | 50 | ||
| EW-PRT-M12/P09 | 83181854 | Black | 9.6 | 12.9 | 26 | 85 | 3.0 | 50 | ||
| EW-PRT-M16/P11 | 83181856 | Black | 11.9 | 15.8 | 38 | 105 | 3.8 | 50 | ||
| EW-PRT-M20/P16 | 83181858 | Black | 15.4 | 21 | 52 | 185 | 6.0 | 50 | ||
| EW-PRT-M25/P21 | 83181862 | Black | 21.6 | 28.4 | 64 | 235 | 9.9 | 50 | ||
| EW-PRT-M32/P29 | 83181866 | Black | 27.6 | 34.4 | 77 | 285 | 13.5 | 25 | ||
| EW-PRT-M40/P36 | 83181868 | Black | 35 | 42.5 | 91 | 315 | 17.0 | 25 | ||
| EW-PRT-M50/P48 | 83181870 | Black | 46.8 | 54.3 | 112 | 355 | 22.5 | 25 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83181870 83181870 EN_83181850.pdf | 1 Mbytes |
|
