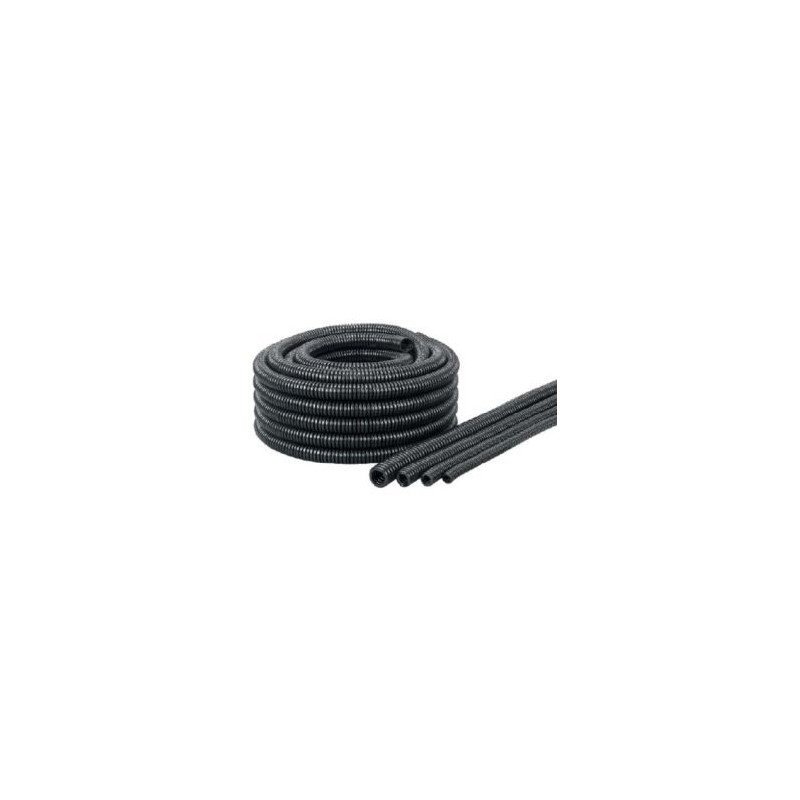

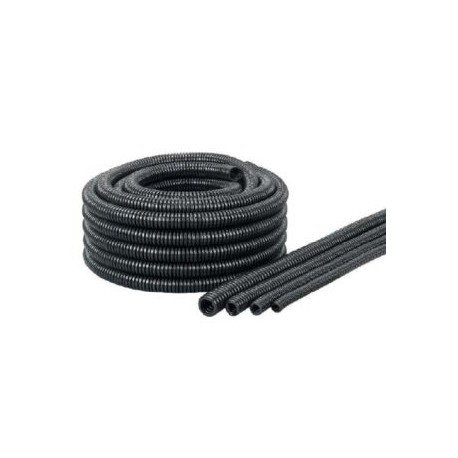

83181681 MURRPLASTIK Type EW-PAE Standard corrugation
83181681
MURRPLASTIK
15
Type EW-PAE Standard corrugation
EW-PAE 80 Murrflex Jumbo, sw
Type EW-PAE
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The EW-PAE cable protection conduits are made of specially modified polyamide 12. The material is halogen, phosphor and cadmium-free.
The EW-PAE cable protection conduits are characterised by excellent flexibility, flexural fatigue strength and good crush resistance. For extremely dynamic applications involving medium mechanical loads.
Applications:
Robotics
Handling systems
in cable drag chains
Halogen-free
UV-resistant
-40°C – 120°C, short term 150°C
acc. to UL94 HB
ROBI approval
| Type | Order No. | Colour | A Ø mm | B Ø mm | R stat. mm | R dyn. mm | Weight kg/100m | MOQ m | ||
|---|---|---|---|---|---|---|---|---|---|---|
Standard corrugation | ||||||||||
| EW-PAE-06 | 83181650 | Black | 6.5 | 9.8 | 15 | 40 | 1.8 | 50 | ||
| EW-PAE-M10/P7 | 83181652 | Black | 8.5 | 11.5 | 20 | 45 | 2.1 | 50 | ||
| EW-PAE M12/P09, 200m | 83988262 | Black | 9.6 | 12.8 | 21 | 51 | 2.8 | 200 | ||
| EW-PAE-M12/P9 | 83181654 | Black | 9.6 | 12.8 | 21 | 51 | 2.8 | 50 | ||
| EW-PAE-M16/P11 | 83181656 | Black | 11.9 | 15.6 | 28 | 68 | 3.8 | 50 | ||
| EW-PAE M16/P11 Murrflex, sw, 200m | 83988265 | Black | 11.9 | 15.6 | 28 | 68 | 3.8 | 200 | ||
| EW-PAE-M20/P16 | 83181658 | Black | 15.5 | 20.8 | 36 | 70 | 5.8 | 50 | ||
| EW-PAE M20/P16, 200m | 83988263 | Black | 15.5 | 20.8 | 36 | 70 | 5.8 | 200 | ||
| EW-PAE-M25/P21 | 83181660 | Black | 21.8 | 28.3 | 49 | 109 | 9.5 | 50 | ||
| EW-PAE-M32/P29 | 83181662 | Black | 27.8 | 34.4 | 67 | 142 | 12.6 | 25 | ||
| EW-PAE M32/P29, 200m | 83988264 | Black | 27.8 | 34.4 | 67 | 142 | 12.6 | 200 | ||
| EW-PAE-M40/P36 | 83181664 | Black | 34.9 | 42 | 81 | 191 | 17.0 | 25 | ||
| EW-PAE-M50/P48 | 83181666 | Black | 47 | 54 | 102 | 237 | 22.8 | 25 | ||
| EW-PAE-56 Jumbo | 83181678 | Black | 56 | 67.3 | 110 | 310 | 40.0 | 25 | ||
| EW-PAE-70 Jumbo | 83181680 | Black | 67.4 | 79 | 200 | 390 | 48.0 | 25 | ||
| EW-PAE-80 Jumbo | 83181681 | Black | 79 | 93 | 220 | 440 | 62.0 | 15 | ||
| EW-PAE-95 Jumbo | 83181682 | Black | 89.7 | 105 | 265 | 500 | 83.0 | 10 | ||
| EW-PAE-06 | 83181610 | Grey | 6.5 | 9.8 | 15 | 40 | 2.0 | 50 | ||
| EW-PAE-M10/P7 | 83181612 | Grey | 8.5 | 11.5 | 20 | 45 | 2.1 | 50 | ||
| EW-PAE-M12/P9 | 83181614 | Grey | 9.6 | 12.8 | 21 | 51 | 2.6 | 50 | ||
| EW-PAE-M16/P11 | 83181616 | Grey | 11.9 | 15.6 | 28 | 68 | 3.6 | 50 | ||
| EW-PAE-M20/P16 | 83181618 | Grey | 15.5 | 20.8 | 36 | 70 | 5.8 | 50 | ||
| EW-PAE-M25/P21 | 83181620 | Grey | 21.8 | 28.3 | 49 | 109 | 9.5 | 50 | ||
| EW-PAE-M32/P29 | 83181622 | Grey | 27.8 | 34.4 | 67 | 142 | 12.6 | 25 | ||
| EW-PAE-M40/P36 | 83181624 | Grey | 34.9 | 42 | 81 | 191 | 17.0 | 25 | ||
| EW-PAE-M50/P48 | 83181626 | Grey | 47 | 54 | 102 | 237 | 22.8 | 25 | ||
| EW-PAE-56 Jumbo | 83181638 | Grey | 56 | 67.3 | 110 | 310 | 35.0 | 25 | ||
| EW-PAE-70 Jumbo | 83181640 | Grey | 67.4 | 79.3 | 200 | 390 | 56.0 | 25 | ||
| EW-PAE-95 Jumbo | 83181642 | Grey | 89.7 | 105.8 | 265 | 500 | 80.0 | 10 | ||
