83142020
MURRPLASTIK
25

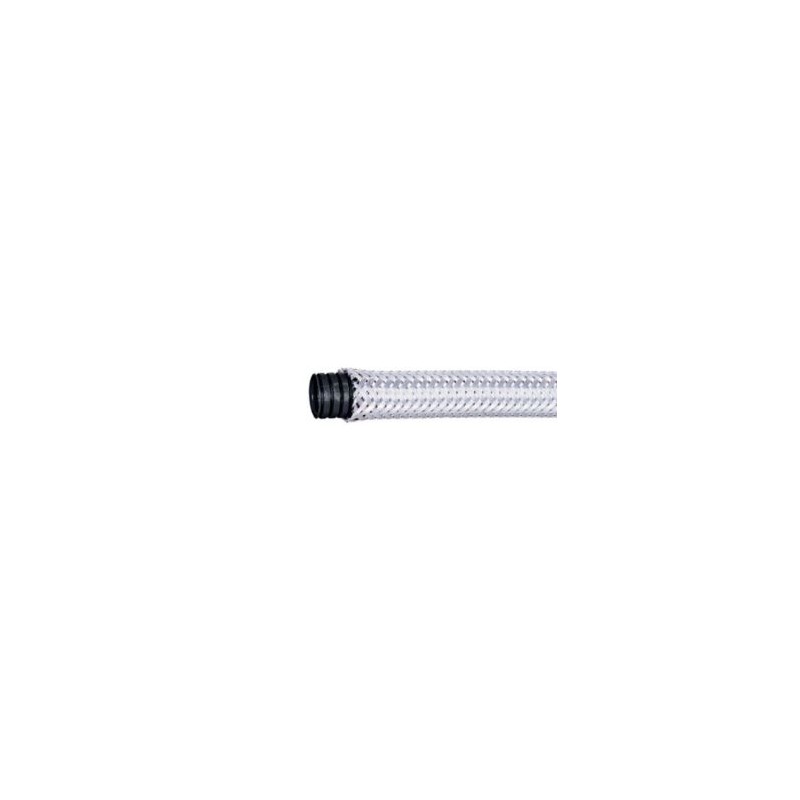

Conduits and fitting systems Type EW-PATM (with metal braiding)
EW-PATM M40/P36 Murrflex, sw, Metall
Type EW-PATM (with metal braiding)
Corrugated pipes and fittings
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
The EW-PATM cable protection conduits are made of specially modified polyamide 6 and coated with a galvanised steel wire. The materials are halogen, phosphor and cadmium-free.
The EWL-PATM cable protection conduits feature good crush resistance, excellent thermal and mechanical protection, self-extinguish well and produce very low levels of smoke gas. Therefore it is suitable for use in both rail transport systems and exposed layouts in building service applications.
For static applications involving medium to high mechanical loads.
Specification:
EN 45545-2 3x HL3
Halogen-free
UV-resistant
-40°C – 120°C, short term 160°C
acc. to UL94 V2S4
EU railway approval
Type | Order No. | Colour | A Ø mm | B Ø mm | Weight kg/100m | MOQ m | ||
---|---|---|---|---|---|---|---|---|
EW-PATM-M25/P21 | 83142016 | Black | 22.4 | 30 | 36.0 | 50 | ||
EW-PATM-M40/P36 | 83142020 | Black | 36 | 44.5 | 50.0 | 25 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 10 Mbytes | |
83142020 83142020 EN_83142016.pdf | 939 Kbytes |
