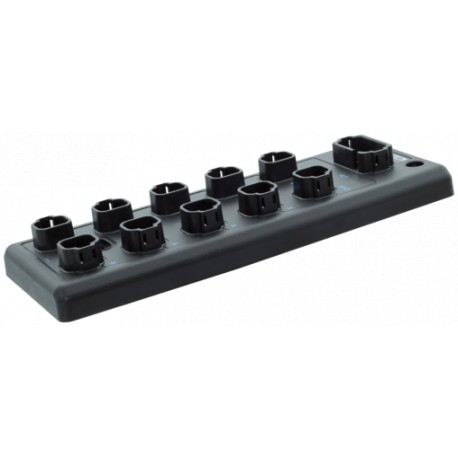

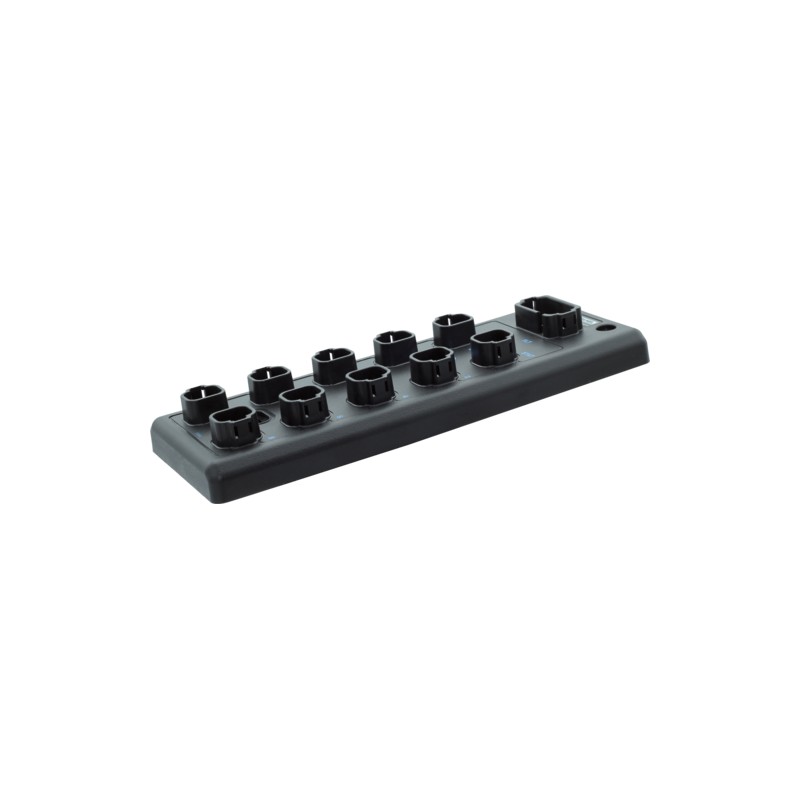

DP-34044-5-200 MURRELEKTRONIK xtremeDB, 16 Discrete Outputs, CANOpen
DP-34044-5-200
MURRELEKTRONIK
xtremeDB OUT Module, 16 digital OUTmaximum Current 52A
xtremeDB OUT Module, 16 digital OUT
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲For use in extreme environments, special vehicles and mobile machines
Connection cables are in the online shop under "Connection Technology".
| Standards | ISO 13766-1 / -2 | EMC Directive (2014/30/EU) |
|---|---|
| Mounting method | 3 hole screw mounting M5 |
| Temperature range | -40...+80 °C (storage temperature -40...+85 °C) |
| Protection | IP68 / IP69K (with MDC connection cables) |
| Dimensions H×W×D | 35×97×265 mm |
| Actuator supply UA | 8...32 V DC, max. 4× 13 A |
|---|---|
| Switching current per output | max. 4 A / max. 10 A |
| I/O ports | DT-4P, 4-polig, max. 13 A |
|---|---|
| Sensor-system supply | DT-4P, 4-pole, max. 8 A |
| Actuator supply | DT 18-pole, A-coded |
| Reverse polarity protection module | yes |
|---|
| Addressing | Node-ID 1, Offset per Jumper +1…+15 |
|---|---|
| Protocols | CANopen®, CAN Layer 2.0B |
| Transfer rate | 250/500 kbit/s |
| Product article number of manufacturer | DP-34044-5-200 |
|---|
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| DP-34044-5-200 DP-34044-5-200 EN_DP-34044-5-200.pdf | 95 Kbytes |
|
