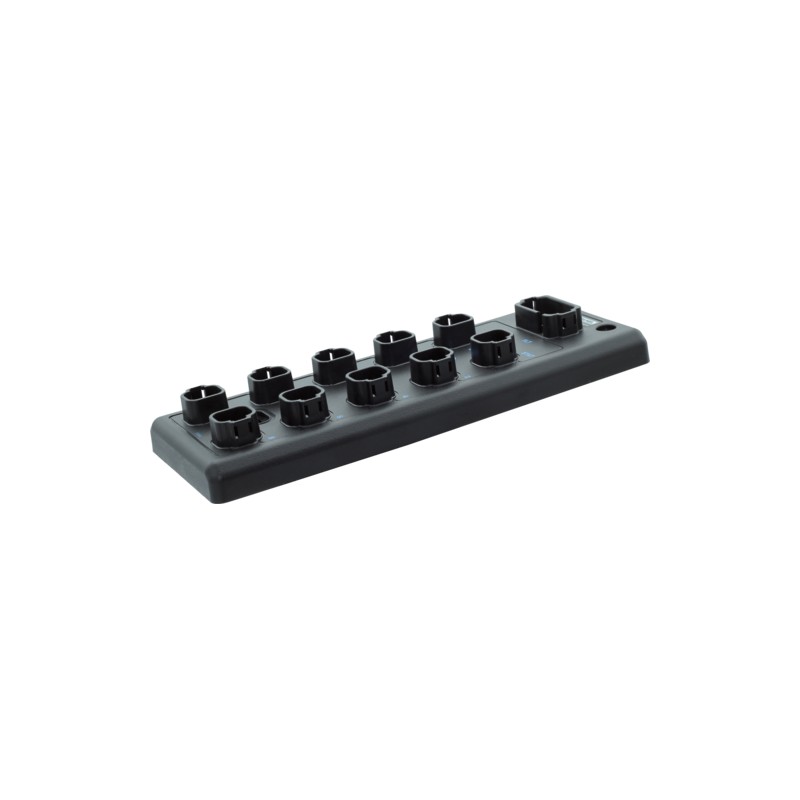

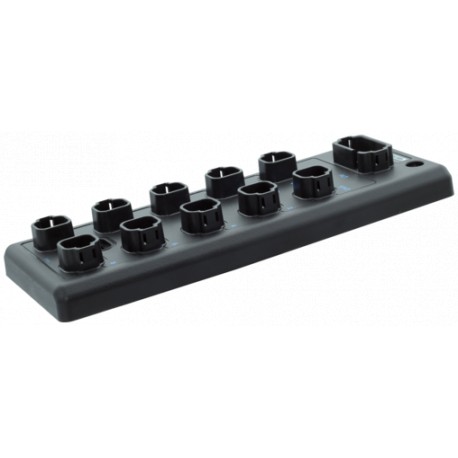

DP-34044-2-200 MURRELEKTRONIK xtremeDB Input Module CANOpen 16 INPUT: 16DI / 8AI(I-U) / 2Frequency/Counter/E..
DP-34044-2-200
MURRELEKTRONIK
xtremeDB IN Module CANopen, 16 IN parameterizable16DI/8AI(I-U)/2Frequency-Counter-Encoder/8DI-NPN/PNP
xtremeDB IN Module CANopen, 16 IN parameterizable
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲For use in extreme environments, special vehicles and mobile machines
Connection cables are in the online shop under "Connection Technology".
| Standards | ISO 13766-1 / -2 | EMC Directive (2014/30/EU) |
|---|---|
| Mounting method | 3 hole screw mounting M5 |
| Temperature range | -40...+80 °C (storage temperature -40...+85 °C) |
| Protection | IP68 / IP69K (with MDC connection cables) |
| Dimensions H×W×D | 35×97×265 mm |
| Sensor supply US | 8...32 V DC, max. 8 A |
|---|
| I/O ports | DT-4P, 4-pole, max. 8 A |
|---|---|
| Sensor-system supply | DT-4P, 4-pole, max. 8 A |
| Reverse polarity protection module | yes |
|---|
| Addressing | Node-ID 1, Offset per Jumper +1…+15 |
|---|---|
| Protocols | CANopen®, CAN Layer 2.0B |
| Transfer rate | 250/500 kbit/s |
| Product article number of manufacturer | DP-34044-2-200 |
|---|
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module and channel |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
