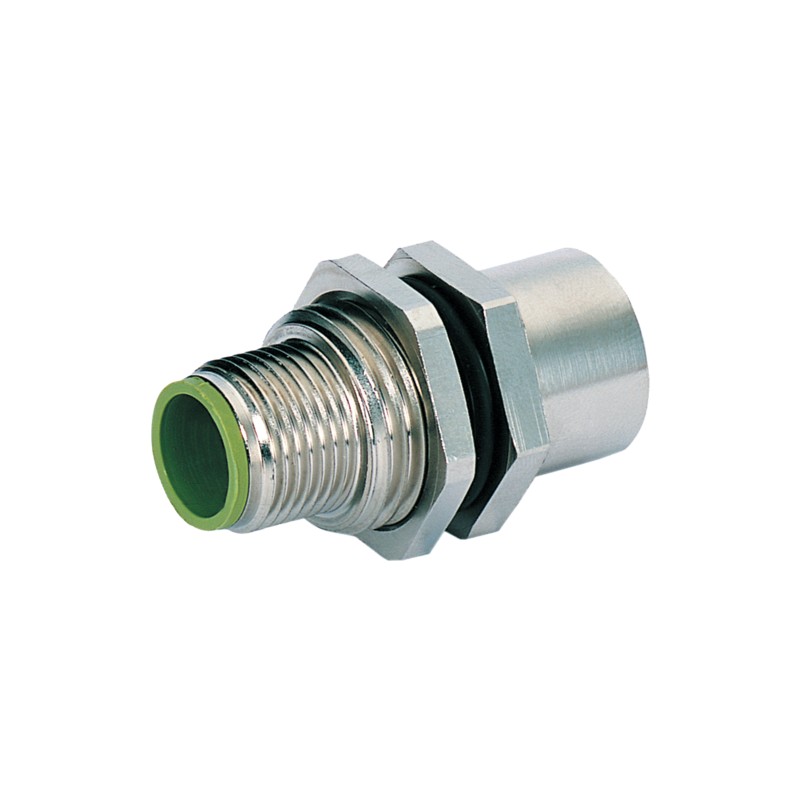

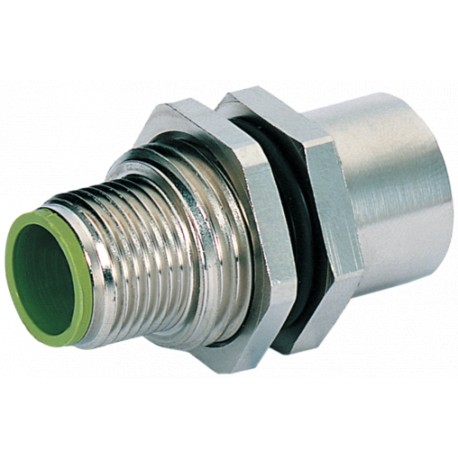

7002-42111-0000000 MURRELEKTRONIK M12 panel feed-through 5p. A-cod.V2A
7002-42111-0000000
MURRELEKTRONIK
10
M12 panel feed-through 5p. A-cod.V2A
M12 BULKHEAD FLANGE PLUGS 5 POLE A CODED V2A
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Often bought together
▲Best sellers
▲More info
▲| Art.No.: | 7002-42111-0000000 |
| Weight: | 0.027 kg |
| Country of origin: | CZ |
Technical Data
| Family construction form | M12 |
|---|
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting set | M16 x 1.5 |
| Degree of protection (EN IEC 60529) | IP65, IP67, IP68, IP66K, IP69K |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Material housing | Stainless steel 1.4305 (V2A) |
|---|
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7002-42111-0000000 7002-42111-0000000 7002-42111-0000000_Data_Sheet_1.pdf | 128 Kbytes |
|
