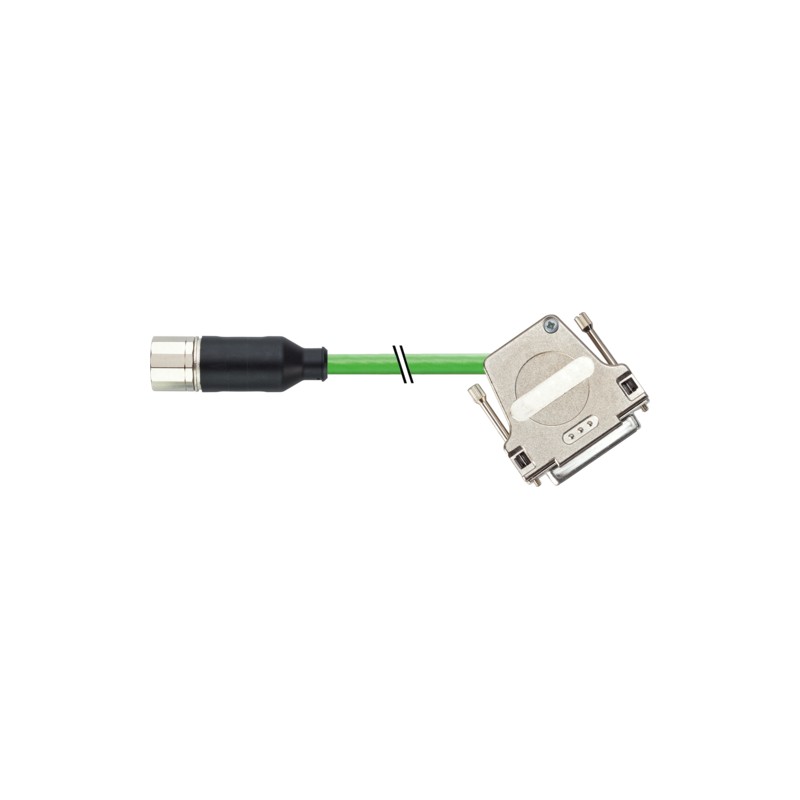

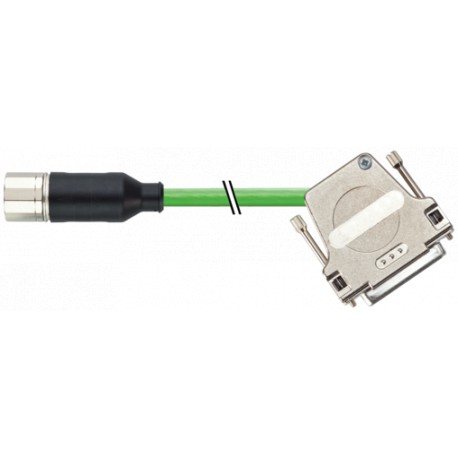

7000-SS261-8112500 MURRELEKTRONIK M23 Sinal cable Specification: 6FX8002-2CA31-1CF0
7000-SS261-8112500
MURRELEKTRONIK
M23 Sinal cableSpecification: 6FX8002-2CA31-1CF0
M23 Sinal cable
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Signal cable for SINAMICS S120 and motors with connection M23
Female straight – female 90°
M23, 17-pole – SUB-D25
shielded
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | SS261 |
|---|
| Operating voltage | max. 30 V AC/DC |
|---|---|
| Rated surge voltage | 0.5 kV |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Protection | IP65, IP67 (M23) - IP20 (SUB-D25) |
| Material | PUR |
| Locking material | Brass, nickel plated |
| suitable for corrugated tube (internal Ø) | 16 mm |
| Compression gland | M23 (SW27) |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| No./diameter of wires | 3× (2×0.14D) + 2× 0.5 + 4× 0.14 + 4× 0.22)-C |
|---|---|
| Wire isolation | PP (ye, gn, bk, br, rd, or, brrd brbl, gr, bl, whye, whbk, brye, brgr, gnbk, gnrd) |
| C-track properties | 10 Mio. |
| Outer Ø | 9.5 mm ±5% |
| Cable number | 811 |
| Approval (cable) | UL (AWM-Style 20236/1589), CSA; CE |
| Shield | yes |
| Jacket Color | green |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| Material (jacket) | PUR (UL/CSA) |
| Product article number of manufacturer | 7000-SS261-8112500 |
|---|---|
| Cable length | 25 m |
