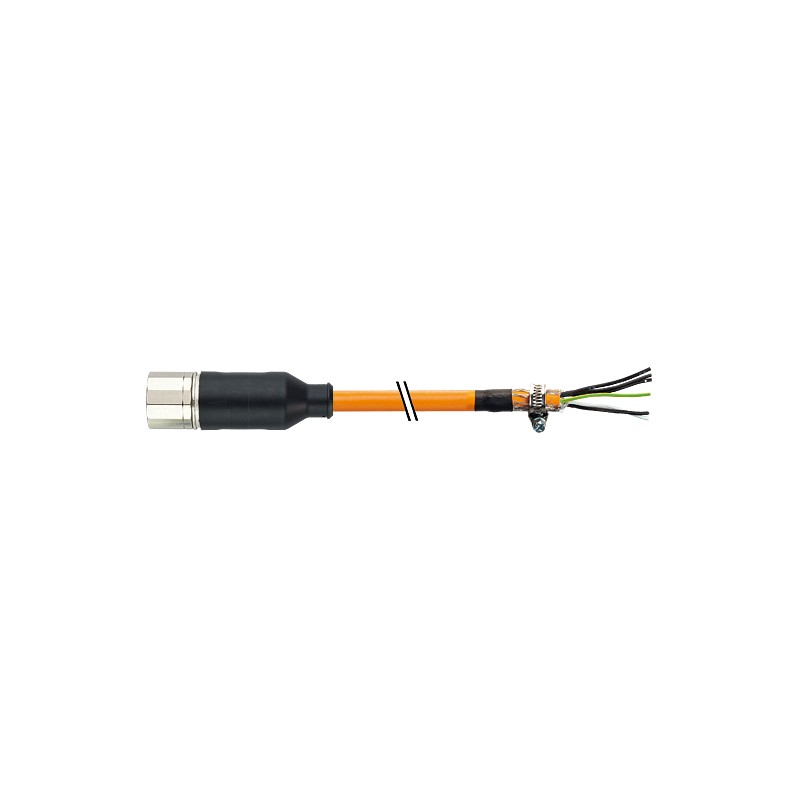

7000-PS206-8692000 MURRELEKTRONIK M23 Servo cable specification: 6FX5002-5CG01-1CA0
7000-PS206-8692000
MURRELEKTRONIK
M23 Servo cable specification: 6FX5002-5CG01-1CA0
M23 SERVO CABLEspecification: 6FX5002-5CG11-1CA0
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-PS206-8692000 |
| Weight: | 3.775 kg |
M23, 6-pole
4-pole used
shielded
without brake wires
Power cable for SINAMICS S120 and Motors with M23 connection
Mounting bracket
without cable sleeves
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request. Further cable lengths on request.
| Form | PS206 |
|---|
| Cable number | 869 |
|---|---|
| No./diameter of wires | (4G2.5+C) |
| Wire isolation | PP (bk num, gnye) |
| C-track properties | 0.1 Mio. |
| Torsion stress | ±30°/m |
| Jacket Color | orange |
| Material (jacket) | PVC (UL/CSA) (=MC500) |
| Specification | 6FX5008-1BB21 |
| Outer Ø | 9.6 mm ±5% |
| Bend radius (fixed) | 5 × outer Ø |
| Bend radius (moving) | 18 × outer Ø |
| Temperature range (fixed) | -25...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Shield | yes |
| Approval (cable) | UL (AWM-Style 2570/10492), CSA |
| Diameter (core) | 4 × 2.5 mm² |
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Rated surge voltage | 6 kV |
| Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²) |
| Material group | IEC 60664-1, category I |
| Locking of ports | Screw thread M23 × 1 mm (recommended torque 2.0 Nm) self-securing |
| Compression gland | M23 (SW27) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Locking material | Brass, nickel plated |
| Material | PUR |
| suitable for corrugated tube (internal Ø) | 16 mm |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879693561 |
| eClass | 27279218 |
| Packaging unit | 1 |
