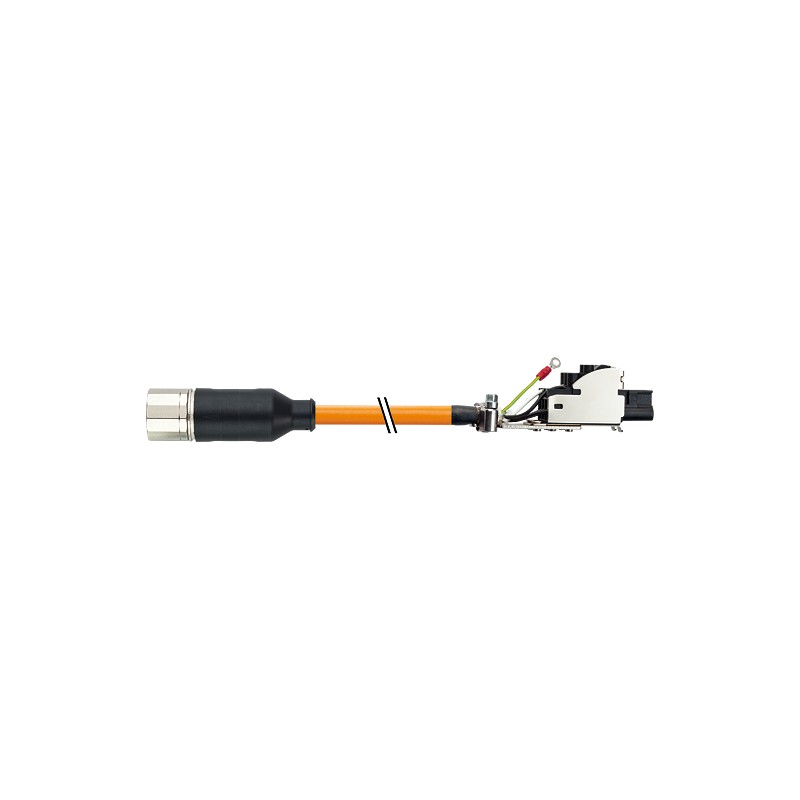

7000-PS015-8652000 MURRELEKTRONIK M23 Servo cable Specification: 6FX5002-5CS01-1CA0
7000-PS015-8652000
MURRELEKTRONIK
M23 Servo cable Specification: 6FX5002-5CS01-1CA0
M23 SERVO CABLESpecification: 6FX5002-5CS01-1CA0
M23 SERVO CABLE
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Female straight – pre-wired terminals
M23, 6-pole
4-pole used
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | PS015 |
|---|
| Operating voltage | max. 630 V AC/DC |
|---|---|
| Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²) |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Compression gland | M23 (SW27) |
| Protection | IP20/IP67 |
| Locking material | Brass, nickel plated |
| Material | PUR |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable number | 865 |
|---|---|
| No./diameter of wires | (4G1.5+C) |
| Wire isolation | TPM (bk num, gnye) |
| C-track properties | 0.1 Mio. |
| Torsion stress | ±30°/m |
| Jacket Color | orange |
| Material (jacket) | PVC (UL/CSA) (=MC500) |
| Specification | 6FX5008-1BB11 |
| Outer Ø | 8.0 mm ±5% |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 18× outer Ø |
| Temperature range (fixed) | -25...+80 °C |
| Temperature range (mobile) | -5...+60 °C |
| Shield | yes |
| Approval (cable) | UL (AWM-Style 2570/10492), CSA |
| Diameter (core) | 4× 2.5 mm² |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879536202 |
| eClass | 27279218 |
| Packaging unit | 1 |
