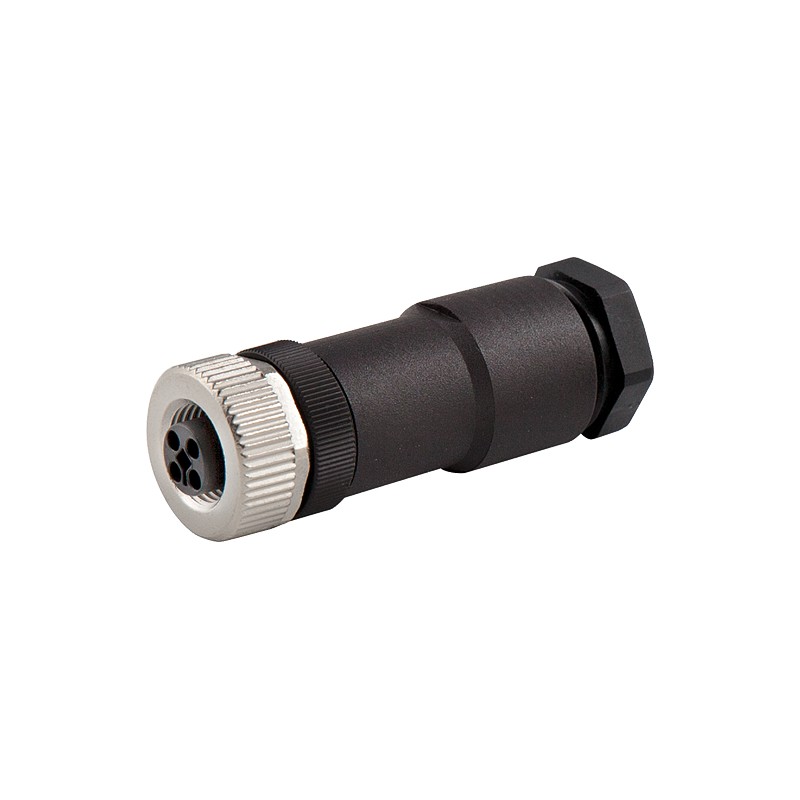

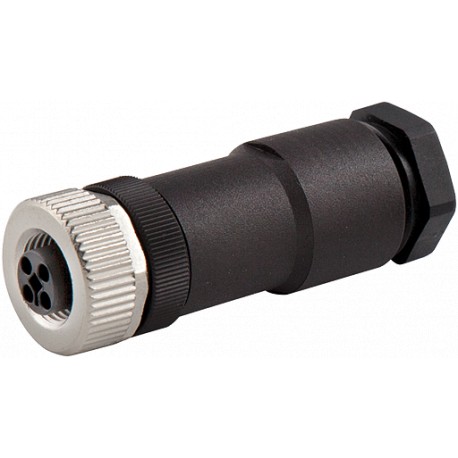

7000-P7411-0000000 MURRELEKTRONIK M12 female 0° T-coded field-wireable
7000-P7411-0000000
MURRELEKTRONIK
M12 female 0° T-coded field-wireable
M12 Power female 0° T-cod. screw terminal4-pol., max. 2,5mm², 8 - 10mm
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-P7411-0000000 |
| Weight: | 0.001 kg |
M12, 4-pole
T-coded
Screw terminals
Sealing range (cable Ø): 8...10 mm
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | P7411 |
|---|
| Operating voltage | max. 63 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 12 A |
| Material group | IEC 60664-1, category III |
| Connection cross section | max. 1.5 mm² |
| Coding | T-coded |
| Sealing range (cable Ø) | 8...10 mm |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | M12 (SW18) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | PA |
| Pollution Degree | 3 |
|---|---|
| Dimensions H × W × D | 58×20×20 mm |
| Temperature range | -40...+85 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879653855 |
| eClass | 27279221 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-P7411-0000000 7000-P7411-0000000 7000-P7411-0000000_Data_Sheet_1.pdf | 158 Kbytes |
|
