MURRELEKTRONIKConnectors with cable7000-99605-0000000 MURRELEKTRONIK Wall bushing for push pull powerwith spring-cage connection, flexible codi..

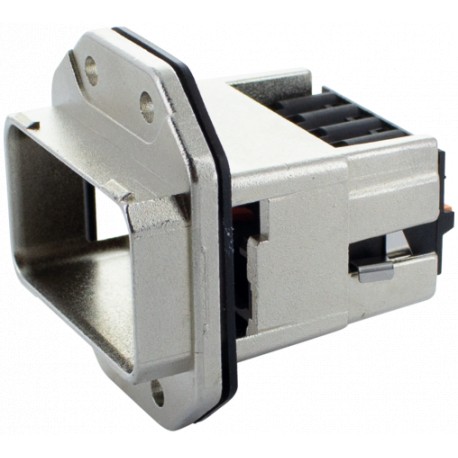

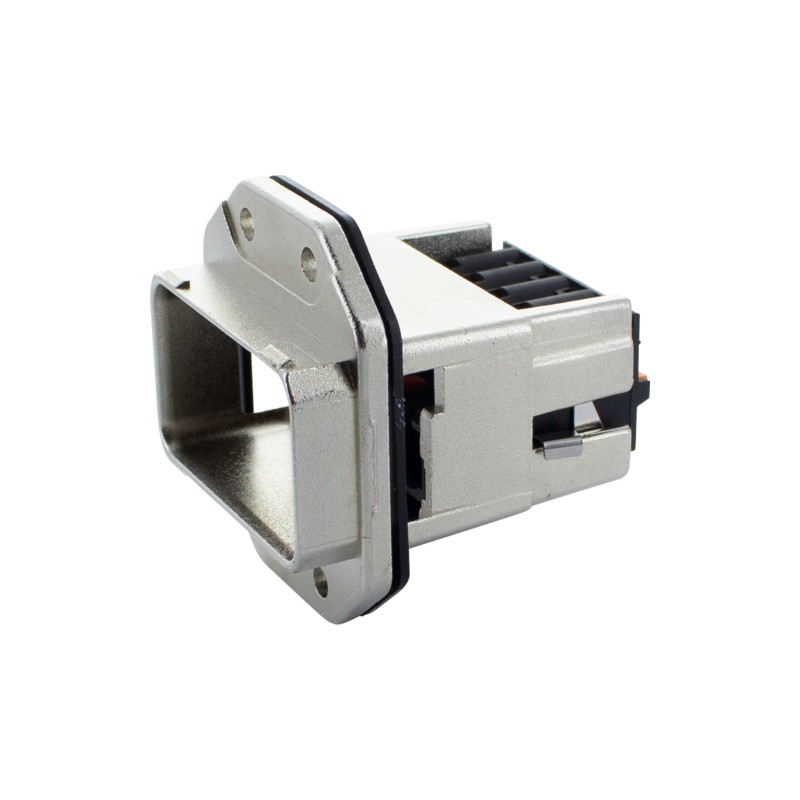

MURRELEKTRONIK 7000-99605-0000000 7000-99605-0000000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7000-99605-0000000 MURRELEKTRONIK Wall bushing for push pull powerwith spring-cage connection, flexible codi..

Reference: 7000-99605-0000000

Manufacturer: MURRELEKTRONIK

Description:

Wall bushing for push pull powerWith spring-cage connection, flexible coding
Wall bushing for push pull power

Categories:

  • MURRELEKTRONIK > Connectors with cable

Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 55,52 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Push Pull Power metal mounting frame
incl. contact insert with spring clamp connection
flexible coding
Suitable for rectangular mounting cut-out
with gasket
without fixing screws
Form
Form99605
Technical Data
Operating voltage24 V
Rated surge voltage4.0 kV
Operating current16 A
No. of poles5
Locking of portsPPP, 5-pole
Connectionwith spring clamp connection
Connection cross section0.75...2.5 mm² (AWG 18...13)
ProtectionIP65 and IP67 when plugged and screwed down (EN 60529)
HousingZinc die casting, nickel-plated
General data
Pollution Degree2
Temperature range-40...+70 °C
Flammability class(UL94): VO
Mating cycles≥ 100
Product article number of manufacturer7000-99605-0000000

DATASHEET - PDF

Title
Size
Type
7000-99605-0000000 7000-99605-0000000 EN_7000-99605-0000000.pdf
71 Kbytes
PDF CATALOG MURRELEKTRONIK EN
36 Mbytes
