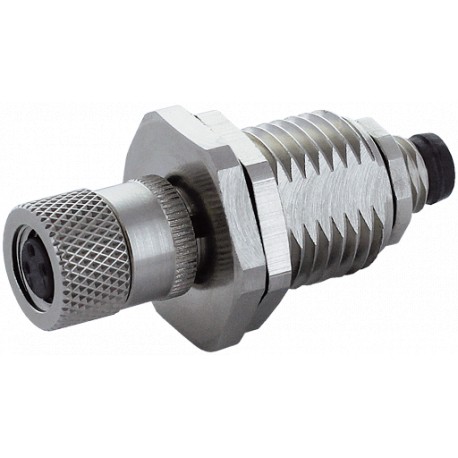

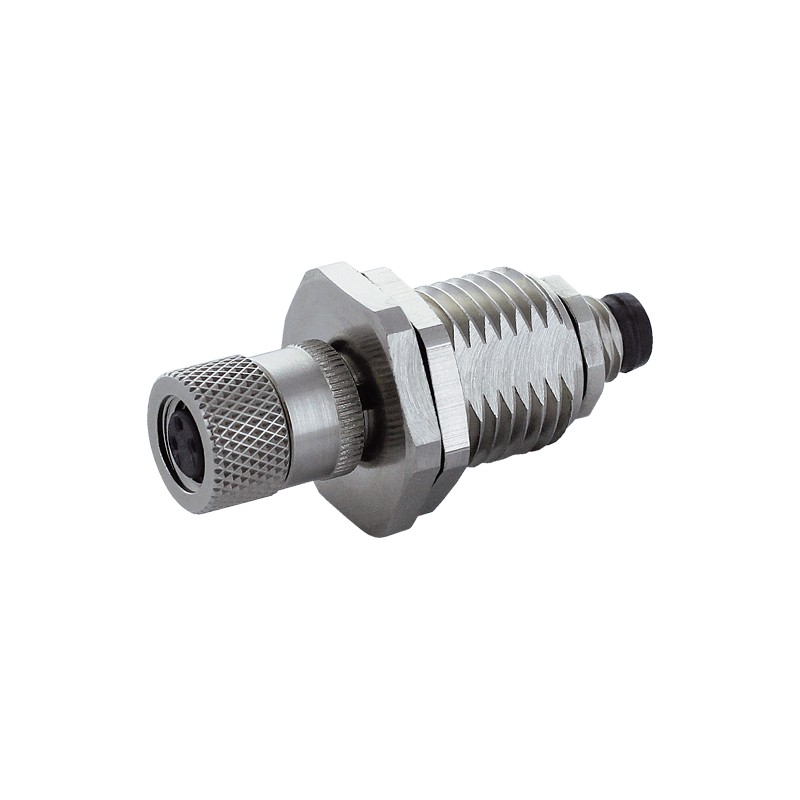

7000-88112-0000000 MURRELEKTRONIK M8 panel feed through 4 pole shielded
7000-88112-0000000
MURRELEKTRONIK
M8 panel feed through 4 pole shielded
M8 panel feed through male / female 0° A-cod.4-pol., shielded
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-88112-0000000 |
| Weight: | 0.035 kg |
M8, 4-pole
Male straight – female straight
Rear mounting
| Form | 88112 |
|---|
| Rated surge voltage | 2.5 kV |
|---|---|
| Operating current per contact | max. 4 A |
| No. of poles | 4 |
| Material group | 2 |
| LED display | no |
| Compression gland | M8 |
| Protection | IP67 inserted and tightened (EN 60529) |
| suitable for corrugated tube (internal Ø) | without |
| Over voltage category | 2 |
| Mating cycles | ≥ 100 |
| Mounting method | inserted, tightened |
|---|---|
| Material (contact carrier) | PA |
| Material (contact) | Copper alloy |
| Material (contact surface) | Au |
| Pollution Degree | 3 |
| Temperature range | -25...+85 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879689304 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-88112-0000000 7000-88112-0000000 7000-88112-0000000_Data_Sheet_1.pdf | 153 Kbytes |
|
| Download general catalog |
|
