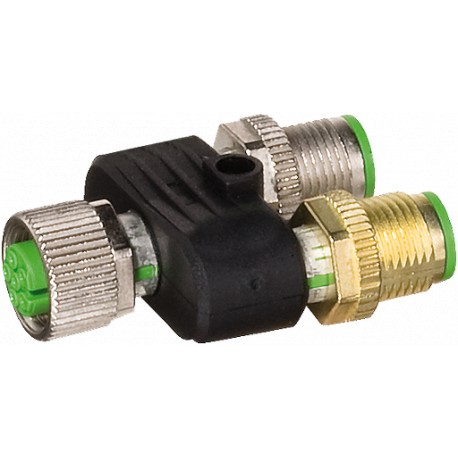

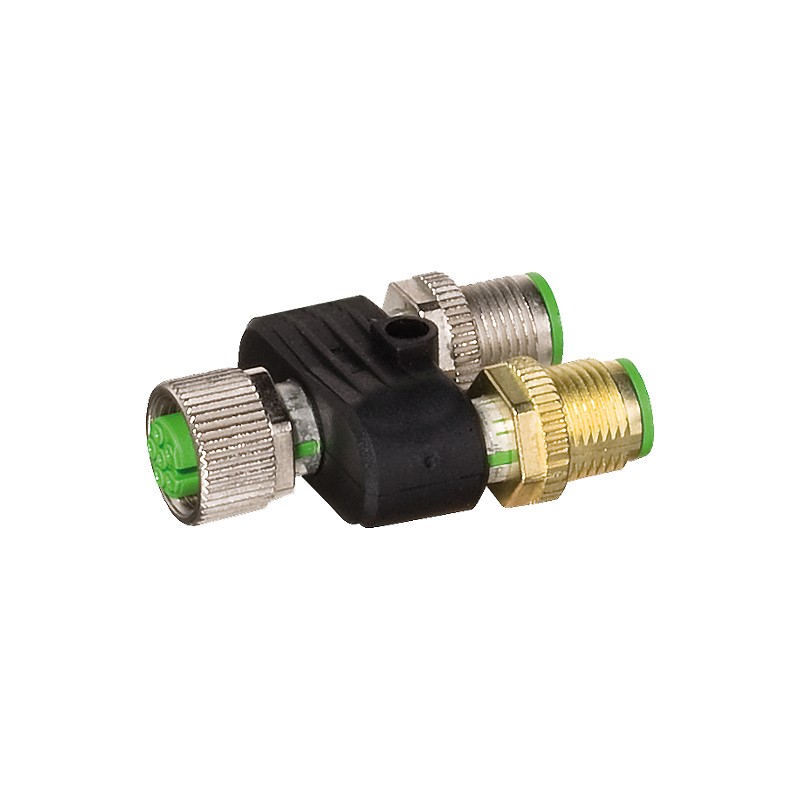

7000-46101-0000000 MURRELEKTRONIK T-coupler M12 6 pole CUBE67 shielded
7000-46101-0000000
MURRELEKTRONIK
T-coupler M12 6 pole CUBE67 shielded
T-Coupler M12 female/ 2x M12 male A-cod. shielded6-pol., CUBE67
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-46101-0000000 |
| Weight: | 0.034 kg |
T-coupler
Male straight – females straight
M12 – M12, 6-pole
A-coded
shielded
Cube67 additional actuator power supply
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 46101 |
|---|
| Operating voltage | 18...30 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Rated surge voltage | 0.8 kV |
| Temperature range | -25...+85 °C |
|---|
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879139908 |
| eClass | 27143423 |
| Packaging unit | 1 |
