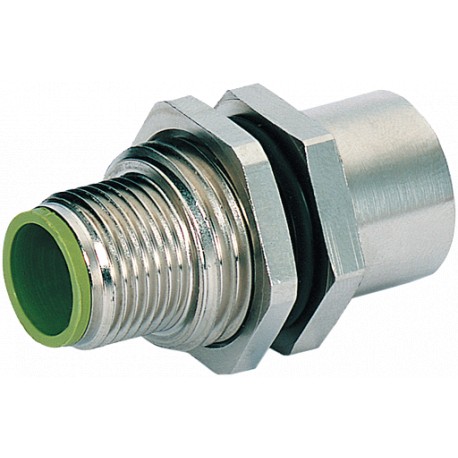

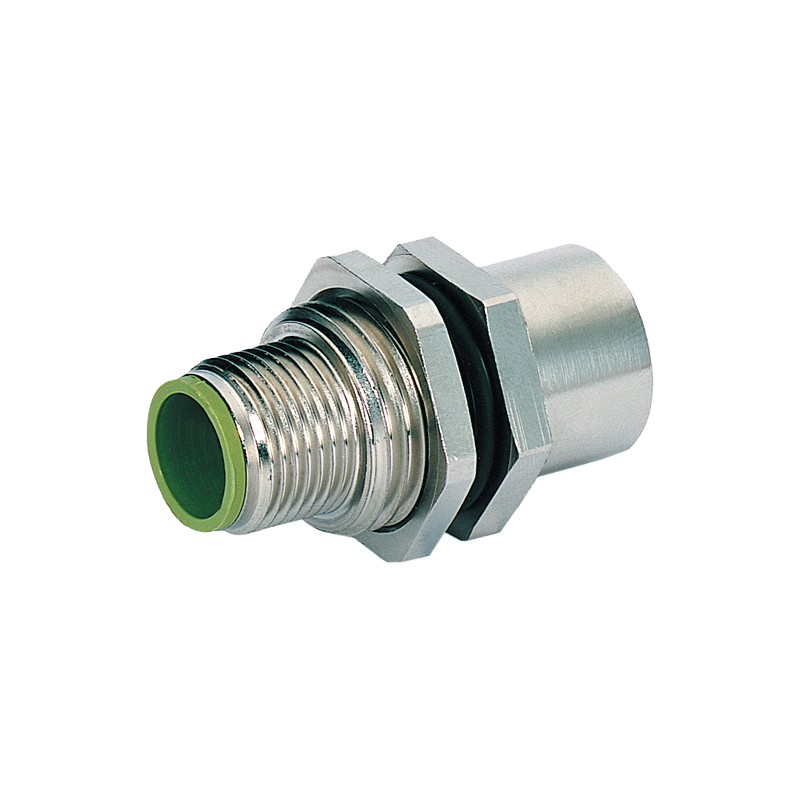

7000-44111-0000000 MURRELEKTRONIK M12 panel feed-through 5p. B-cod.
7000-44111-0000000
MURRELEKTRONIK
M12 panel feed-through 5p. B-cod.
M12-PANEL FEED THROUGH 5 POLE B-CODED
Profibus B-coded M12/M12 5-pole bulkhead passage
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-44111-0000000 |
| Weight: | 0.027 kg |
Male/female
M12, 5-pole
B-coded
shielded
| Form | 44111 |
|---|
| Operating voltage | max. 60 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
| Material group | IEC 60664-1, category I |
| Coding | B-coded |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material | Brass, nickel plated |
| Pollution Degree | 3 |
|---|---|
| Mounting set | M16 × 1.5 mm |
| Temperature range | -25...+85 °C |
| country of origin | CZ |
|---|---|
| customs tariff number | 85369010 |
| EAN | 4048879141420 |
| eClass | 27279220 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 7000-44111-0000000 7000-44111-0000000 7000-44111-0000000_Data_Sheet_1.pdf | 128 Kbytes |
|
| Download general catalog |
|
