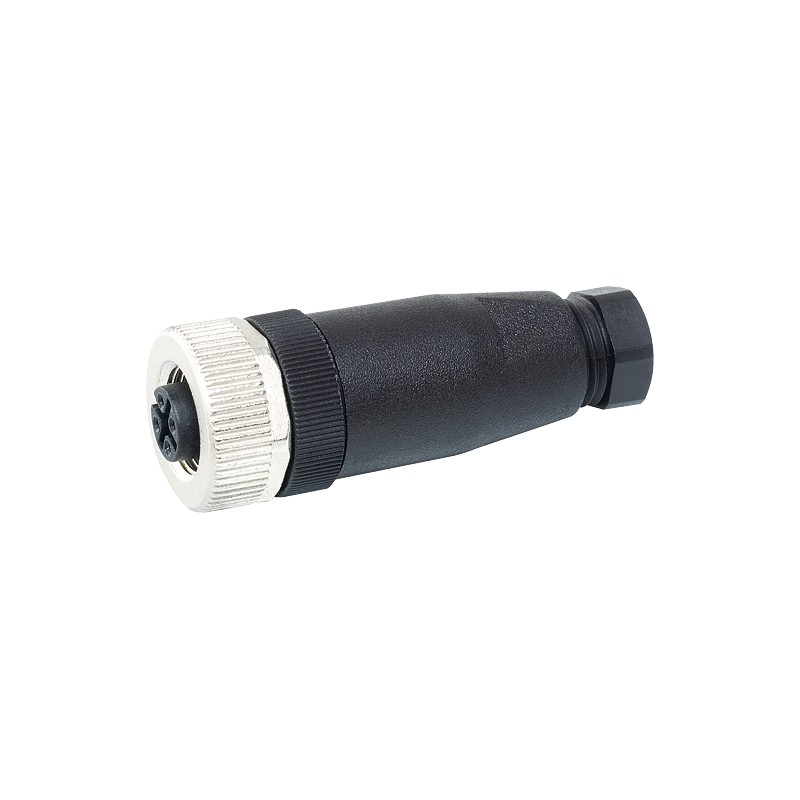

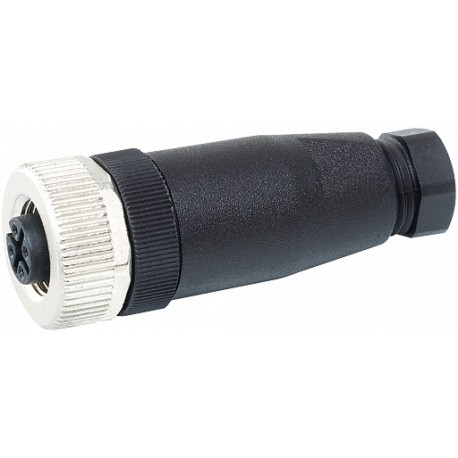

7000-20141-0000000 MURRELEKTRONIK M12 female 0° field-wireable C-coded
7000-20141-0000000
MURRELEKTRONIK
M12 female 0° field-wireable C-coded
M12 female 0° C-cod. IDC3-pol., max. 0,75mm², 4 - 6mm
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲| Art.No.: | 7000-20141-0000000 |
| Weight: | 0.026 kg |
M12, 3-pole
Screw terminals
Sealing range (cable Ø): 4...6 mm
Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.
| Form | 20141 |
|---|
| Operating voltage | max. 250 V AC/DC |
|---|---|
| Rated surge voltage | 2.5 kV |
| Operating current per contact | max. 4 A |
| Material group | IEC 60664-1, category II |
| Connection cross section | max. 0.75 mm² |
| Coding | M12, C-coded |
| Sealing range (cable Ø) | 4...6 mm |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Dimensions H × W × D | 55×20×20 mm |
|---|---|
| Temperature range | -25...+85 °C |
| country of origin | DE |
|---|---|
| customs tariff number | 85366990 |
| EAN | 4048879641968 |
| eClass | 27279221 |
| Packaging unit | 1 |
